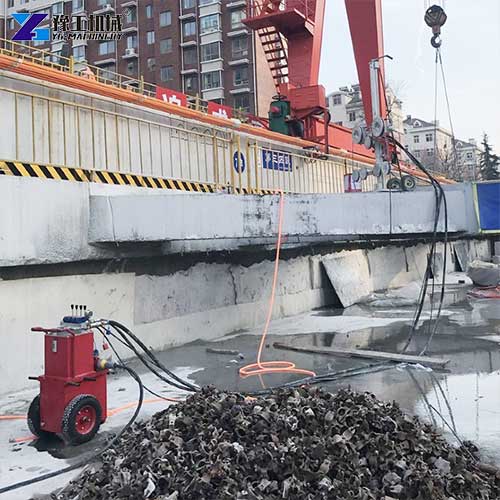

When you need to cut thick reinforced concrete, bridge piers or underwater structures, traditional saw blades and jackhammers simply cannot get the job done efficiently. A concrete wire saw machine is a professional cutting tool that uses a loop of diamond-impregnated wire to cut through hard concrete and reinforced materials. The diamond wire saw cutting machine works by running the diamond wire at high speed around the target material. The diamond particles on the wire wear away the concrete as it moves, creating a clean, smooth cut. The process produces almost no vibration, so it will not damage the remaining original structure, which makes it ideal for partial demolition and renovation projects.
YG offers both hydraulic and electric models to fit different project needs, with complete standard accessories so you can start working right after delivery. If you’re looking for a reliable diamond wire saw for sale that is easy to operate for your team, our model is a very cost-effective choice.
Concrete Wire Saw Machine Technical Parameter
| Wire Saw Wheel | Parameters | Hydraulic Pump Station | Parameters |
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Floe | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||
Core Structural Advantages of the YG Concrete Wire Saw Machine

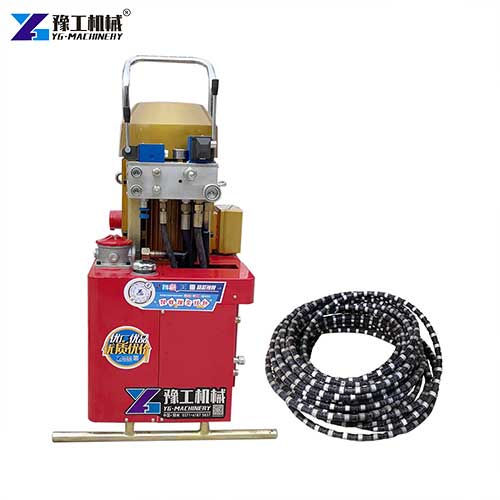

- High-stability hydraulic drive system: The hydraulic power station delivers stable and continuous power to the cutting system, which ensures consistent cutting speed even when cutting high-strength reinforced concrete. The system has overload protection to prevent damage from sudden load changes, which extends the service life of the whole machine.

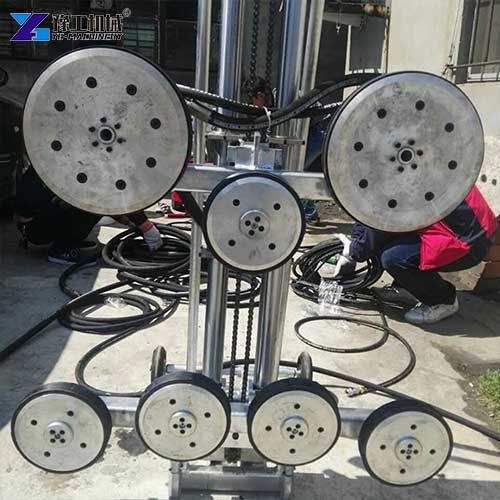

- Wear-resistant multi-guide wheel design: The multi-guide wheel system keeps the wire running smoothly during cutting and reduces wire twisting and uneven wear. The guide wheels are made of high-strength wear-resistant materials, and the rubber rings on the wheels are easy to replace, which keeps daily maintenance costs low.
- Quick tension adjustment structure: The tension adjustment device lets you adjust the wire tension quickly and accurately according to different concrete hardness levels. This ensures the best cutting state at all times, and improves cutting efficiency while extending diamond wire service life.
- Heavy-duty integrated frame: The diamond wire saw cutting machine frame uses a thickened integrated steel plate structure, which has high rigidity and stability during high-load operation. The heavy frame also reduces the need for expansion screw fixation in many cases, which minimizes damage to the base concrete surface.
We design every structural detail of our hydraulic wire saw cutting machine to address actual construction site pain points and offer more stable performance than common low-cost alternatives.
How Our Wire Saw Design Simplifies On-Site Installation & Operation
Many construction teams fear the complicated installation and operation of professional wire saws that demand skilled technicians. We design our equipment with usability top of mind and greatly simplify field assembly and daily operation:
1. Modular design for fast on-site assembly

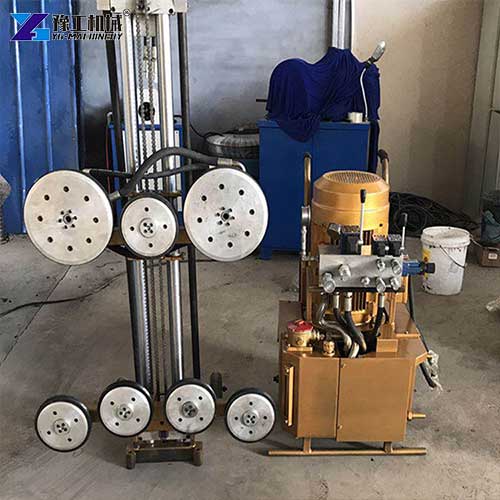

The whole set of equipment adopts a modular design, including three main parts: the power station, the saw frame and the guide wheel system. All modules are pre-assembled before delivery, so you only need to connect the oil pipes and fix the saw frame on site.
The standard package comes with four 10-meter oil pipes and all required connection fittings. The whole installation process only takes 1-2 hours for two workers, no professional installation team needed.
2. Simple control panel for easy operation
The control panel adopts a simplified design with clear function buttons. Workers can master basic operations after 1-2 hours of simple training; no long-term professional learning is required.
The concrete wire saw machine also has automatic overload protection and automatic shutdown protection for abnormal conditions, which reduces operational difficulty and avoids equipment damage caused by misoperation.
3. Matching hydraulic clamp for fast wire connection
Each set comes with a hydraulic clamp as standard, which is used to connect and fix the diamond wire. You can finish the wire connection or replacement in a few minutes with the hydraulic clamp; no extra tools needed.
This greatly reduces downtime when changing wire or adjusting the cutting path, and improves overall work efficiency on site.
All these design details are built around actual site use scenarios, making the equipment much easier to deploy and use than similar products on the market. If you’re looking for a reliable diamond wire saw for sale that is easy to operate for your team, our model is a very cost-effective choice.
6 FAQ About Concrete Wire Saw Machine
A: For concrete cutting, choose sintered process wire with 11.5mm diameter. One standard roll is 50 meters long. For metal cutting, you need to choose brazed process wire specially designed for metal.
A: The cutting efficiency is 8.2 square meters per hour, depending on the strength grade of the concrete. Higher-grade concrete wears the wire faster and cuts a bit slower.
A: The main wearing parts are the rubber rings on the guide wheels and the diamond wire itself. Both are easy to replace on site, and we provide a long-term supply of spare parts.
A: Yes, you need to connect a water supply to the water inlet for cooling during operation. Customers prepare their own water pipes to connect to the machine inlet.
A: Yes, it can work fully underwater. It is suitable for cutting underwater concrete piles, wharf platforms and other underwater structures. No extra waterproof modification is needed.
A: Yes, it can cut curved surfaces, angled surfaces and irregular shapes. You can adjust the pulley positions to match the required cutting shape.
