Fleet electrification is no longer a future plan – it is happening now. Whether you manage a delivery fleet, taxi service, or corporate vehicle pool, installing reliable EV charging stations on your property is a critical step. But proper preparation goes beyond just buying hardware. You need to assess your electrical capacity, plan the layout, and choose the right commercial equipment. In this guide, we will walk you through the key steps using the YG series (60KW, 80KW, 120KW) as a reference. If you are looking for commercial electric charging stations that balance power and reliability, this information will help you make an informed decision.
6 Steps to Prepare for Charging Facility Installation
Step 1: Evaluate Your Fleet’s Daily Energy Demand
Before purchasing any equipment, calculate how many vehicles you need to charge daily and their battery sizes. For example, a fleet of 10 electric vans, each with a 60kWh battery, requires 600kWh of energy per full cycle. Your choice of EV charging stations must match that demand. The YG series offers three power levels:
- YG-60KW: 60KW rated power, output current up to 90A (200-750VDC)
- YG-80KW: 80KW rated power, output current up to 120A
- YG-120KW: 120KW rated power, output current up to 160A
Step 2: Assess Your Property’s Electrical Infrastructure
Commercial EV chargers for sale often require significant electrical upgrades. The YG series operates on AC380V±20% input voltage with a frequency range of 45~65Hz. You need a three-phase power supply capable of delivering the required amperage. For a single YG-120KW unit at full load, the input current can exceed 180A. We recommend hiring a licensed electrician to:
- Check your main panel capacity
- Calculate transformer headroom
- Plan for future expansion (multiple chargers)

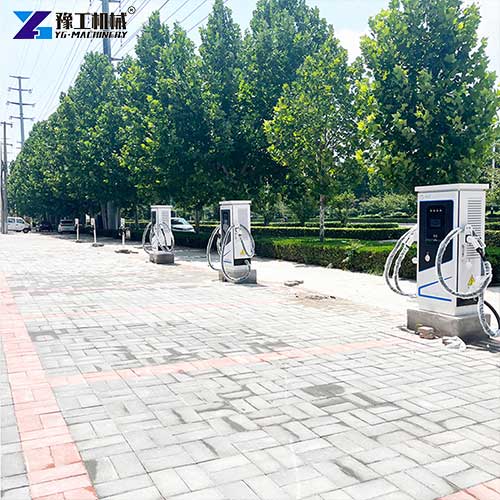

Step 3: Choose the Right Location and Layout
The physical placement of commercial car charging stations affects both usability and safety. The YG series has a floor-standing design with dimensions of 635*423*1600mm. Consider these factors:
- Accessibility: Each parking space should allow easy cable reach. Cable length is 5 meters per gun.
- Protection: The units are IP54 rated (dust-protected and splash-proof). They operate from -25°C to +50°C, suitable for outdoor installation.
- Clearance: Maintain at least 1 meter around the unit for ventilation (forced air cooling, noise ≤80dB).
- Elevation: Works below 3000m altitude.
If you plan to install multiple units, space them to avoid cable tangling and allow simultaneous access.
Step 4: Prepare for Connectivity and Payment
Modern EV charging stations are smart devices. The YG series includes:
- 7-inch LCD color touchscreen for user interface
- Multiple charging modes: auto full, fixed power, fixed amount, fixed time
- Payment options: credit card, APP, or scan code
- Communication: Ethernet 2/3/4G (optional)
Ensure your property has stable internet access (wired or cellular) to enable remote monitoring, payment processing, and over-the-air updates. The human-machine interface (HMI) also includes LED indicators for status at a glance.
Step 5: Plan for Safety and Compliance
Safety is non-negotiable. The YG series meets GB/T standards (20234, 18487, 27930）, NB/T 33008, and includes 13 protection features:
- Charge gun temperature detection
- Overvoltage, undervoltage, overload
- Short circuit, grounding, over temperature
- Low temperature, insulation monitoring
- Polarity reverse connection, lightning protection
- Emergency stop, leakage protection
Step 6: Calculate Total Cost of Ownership
When comparing commercial EV chargers for sale, look beyond the purchase price. The YG series has a Mean Time Between Failures (MTBF) of 100,000 hours, reducing maintenance costs. The high efficiency (≥94.5%) lowers electricity waste. And with a protection level of IP54 and a wide operating temperature range, outdoor installation does not require expensive enclosures.
FAQ About EV Charging Stations
A: The YG series outputs 200-750VDC and uses standard GB/T connectors. It works with most passenger EVs and light commercial vehicles that support DC fast charging. For Tesla or CCS2 vehicles, an adapter is needed. Check your vehicle’s compatibility before purchase.
A: Minimal. Keep the air intakes and exhaust vents clear of dust (forced air cooling). Inspect the charging cables and guns weekly for damage. The MTBF is rated at 100,000 hours, meaning no major repairs are expected for many years under normal use.
A: All YG models require a three-phase 380V AC supply. A single YG-60KW draws about 90A; YG-120KW draws about 180A at full load. Most commercial properties need a panel upgrade or a dedicated transformer. Have an electrician check your existing capacity first.
A: The charger supports credit card, APP, and scan code payment directly. You can also integrate with your own backend via Ethernet or 4G.
EV Charging Stations Parameter:
| Product number | YG-60KW | YG-80KW | YG-120KW | |
| Detailed specification | rated power | 60KW | 80KW | 120KW |
| Charging equipment | User Interface | 7-inch LCD color display touchscreen | ||
| installation | Floor-standing/Down in down out | |||
| Routing mode device size | 635*423*1600(mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45~65Hz | |||
| The output voltage | 200-750VDC | |||
| Single gun output current range | 200V-500V | 200V-500V | 200V-500V | |
| The output voltage | 0-90A | 0-120A | 0-160A | |
| Single gun output current range | 200V-750V | 200V-750V | 200V-750V | |
| The output voltage | 0-60A | 0-80A | 0-107A | |
| Charging equipment | Single gun output current range | 0-112A | 0-150A | / |
| Cable length | 5m | |||
| Electrical index | Measurement accuracy | Level 0.5 | ||
| Current limit protection value | ≥110% | |||
| Voltage regulation accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple coefficient | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99 (50% load or more) | |||
| Harmonic content THD | ≤5% (50% load or more) | |||
| Feature design | HMI | 7-inch LCD color display touch screen, LED indicator | ||
| Charging mode | Auto full / fixed power / fixed amount / fixed time | |||
| payment method | Credit card payment / APP payment /scan code payment | |||
| Communication Interface | Ethernet 2/3/4G (optional) | |||
| Safety design | Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | ||
| security function | Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over-temperature protection, low-temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection | |||
| Environmental indicators | Operating temperature | -25°C~+50°C | ||
| Working humidity | 5%~95% non-condensing cream | |||
| Working elevation | <3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| MTBF | 100,000 hours | |||
Commercial EV Chargers For Sale– YG Machinery
Preparing your property for fleet EV charging stations involves six key steps: assessing energy demand, upgrading electrical infrastructure, choosing locations, setting up connectivity, ensuring safety, and hiring qualified installers. The YG series (60KW, 80KW, 120KW) offers a reliable, high-efficiency solution with a 7-inch touchscreen, 13 protection features, and an IP54 rating. Whether you need commercial electric charging stations for a small delivery fleet or a large depot, these models provide the power and durability required.
Ready to equip your property? Contact us today with your fleet size and daily mileage. We will help you select the right YG model and provide a detailed installation checklist. Get a quick quote for commercial EV chargers for sale now.
