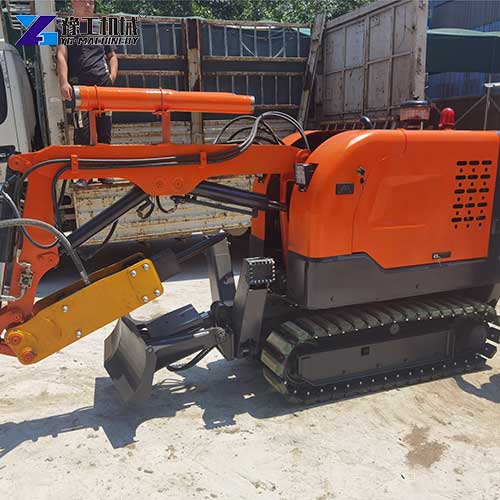

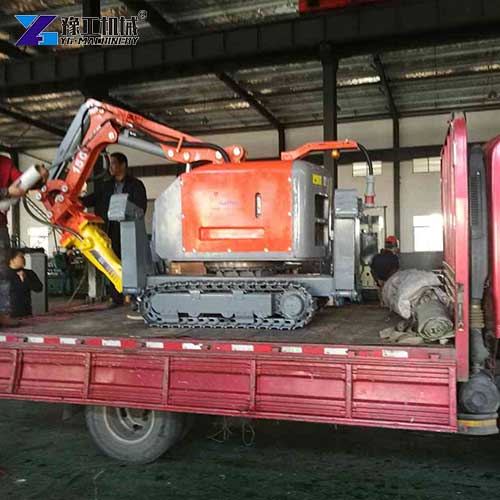

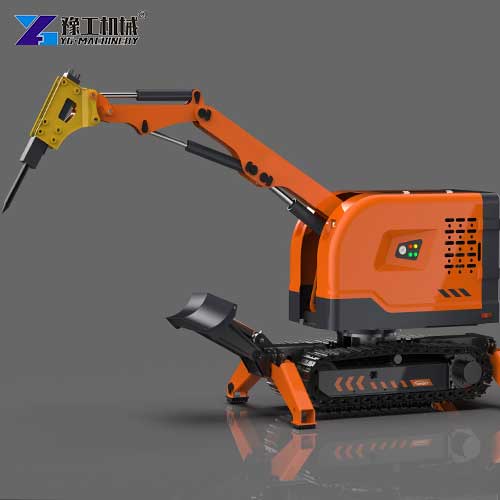

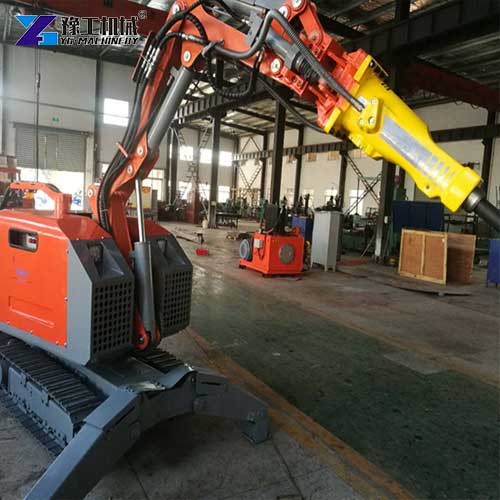

A robotic demolition machine is a remote-controlled, tracked vehicle with its own chassis, boom, and hydraulic system, designed for selective deconstruction, cutting, and controlled demolition. It is operated by radio or cable and carries hydraulic attachments such as concrete pulverizers, combination shears, hydraulic breakers, and grabs.
The YG series robotic demolition machine is built around a compact tracked chassis with a 1200mm minimum width—narrow enough to pass through standard doorways and maneuver in confined spaces. The three-part boom system provides a maximum working height of 6604mm and a maximum working radius of 6194mm, reaching up and out to access elevated structures. The machine weighs 4960kg, heavy enough to handle demanding demolition tasks while remaining transportable on a standard trailer.
Robotic Demolition Machine Specifications:
| Technical parameters | Performance index | |
| Overall performance | Vehicle equipment quality: 4960kg | |
| Traveling speed: 2.2 km/h | ||
| Slewing speed: 0- 8 rpm | ||
| Climbing gradient: 30° | ||
| Track width: 300mm | ||
| Tools available: hydraulic hammer, hydraulic shear, bucket, grab, etc | ||
| Geometric dimensions | Equipment dimensions | Length: 3891mm |
| Minimum height: 1882mm | ||
| Minimum width:1200mm | ||
| Working space | Maximum working height: 6604mm | |
| Maximum working radius: 6194mm | ||
| Maximum working depth: 3451mm | ||
| Powertrain | Diesel engine-driven | Power/speed: 37kW@1480rpm |
| Maximum torque: 239Nm | ||
| Hydraulic system | Main pump: load-sensitive axial piston variable displacement pump | |
| Output fow:0-110Lpm | ||
| Main valve: load feedback pressure compensation, electrohydraulic proportional multiple-way valve | ||
| System rated pressure: 21MPa | ||
| Hydraulic oil tank volume: 159L | ||
| Control device: portable remote control | ||
| Control system | Control mode: wireless, wired (20m) | |
| Communication mode: digital, wired two-way communication based on CAN bus | ||
6 Applications of Robotic Demolition Machine
- Building Demolition and Renovation: Selective demolition inside occupied buildings requires precision. The YG series remote control demolition robot removes walls, floors, and internal structures without damaging the main building. The 1200mm width allows access through standard doorways and corridors. The operator controls the machine from a safe distance, eliminating the risk of injury from falling debris.
- Industrial Plant Demolition: Chemical plants, power plants, and manufacturing facilities contain hazardous materials, high temperatures, and confined spaces. A compact demolition robot handles structures and equipment in dangerous areas that workers cannot enter. The machine’s remote control capability keeps the operator out of toxic or high-temperature environments
- Metallurgical Furnace Maintenance: Furnace maintenance requires working in high temperatures. The YG series demolition robot for sale is used for furnace slag removal and refractory lining demolition in steel mills and cement plants. The remote control allows operation from a safe distance, reducing heat exposure and injury risk.
- Tunnel and Underground Construction: Tunnel excavation and mine operations involve unstable ground and confined spaces. The YG series robotic demolition machine performs excavation, expansion, and debris removal in narrow tunnel faces. The tracked chassis provides stability on uneven surfaces.
- Disaster Response and Rescue: After earthquakes, fires, or building collapses, the YG series remote-controlled demolition robot enters unstable structures to search for survivors and demolish obstacles. The remote control keeps rescue workers at a safe distance while the machine performs hazardous work.
- Bridge and Concrete Maintenance: Bridge and dam maintenance requires precision demolition without damaging the main structure. The YG series demolition robot for sale performs localized concrete removal with high accuracy.
7 Advantages of Robotic Demolition Machine
- Compact Design for Confined Spaces. The YG series measures just 1200mm wide and 1882mm tall, allowing it to pass through standard doorways, elevators, and narrow corridors where full-sized equipment cannot enter.
- Impressive Reach for Its Size. The three-part boom reaches 6604mm in height and 6194mm in radius, with 360° slewing capability for working in any direction without repositioning.
- Powerful Demolition Performance. The 37kW diesel engine and load-sensing hydraulic system deliver 110 L/min at 21MPa, driving hammers, shears, and crushers through reinforced concrete and steel.
- Remote Control for Operator Safety. The wireless remote keeps the operator away from falling debris and toxic fumes, with emergency stop and overload protection for safe operation in hazardous environments.
- Versatile Attachments. The quick coupler system allows rapid switching between hydraulic hammers, shears, buckets, grabs, and pulverizers—one machine handles breaking, cutting, crushing, and material handling.
- Stable Crawler Chassis. The tracked undercarriage climbs gradients up to 30°, traverses stairs and debris piles, and stays stable on uneven or soft ground.
- Low Operating Costs. The YG series saves up to 90% on fuel costs compared to full-sized excavators performing the same demolition work.
4 FAQs About YG Robotic Demolition Machine
A: The machine accepts a range of hydraulic tools including a breaker for concrete, a crusher for reinforced concrete, shears for steel, and grapples for debris sorting. Its 20MPa system and 53L/min pump deliver enough power to operate all of these tools effectively.
A: The wireless range typically reaches 50 to 100 meters in clear line-of-sight, though most operators work at 5 to 15 meters to maintain clear visual contact with the work face. Cable mode provides an interference-free physical connection preferred in electronically dense environments.
A: The machine reaches a maximum working height of 6604mm and a maximum working radius of 6194mm. The maximum working depth is 3451mm. The 360-degree slewing capability allows operation in any direction.
A: The YG series compact demolition robot has a minimum width of 1200mm, allowing it to pass through standard doorways. The tracked chassis provides stability on stairs, corridors, and uneven surfaces.
If you are looking for a demolition robot for sale that delivers operator safety through remote control, compact access to confined spaces, and reliable electric performance for indoor and industrial demolition, contact us today. Tell us your typical demolition applications, the confined spaces you need to access, your available power supply, and the tools you plan to use, and we will confirm whether the 110E is the right fit for your operation.
