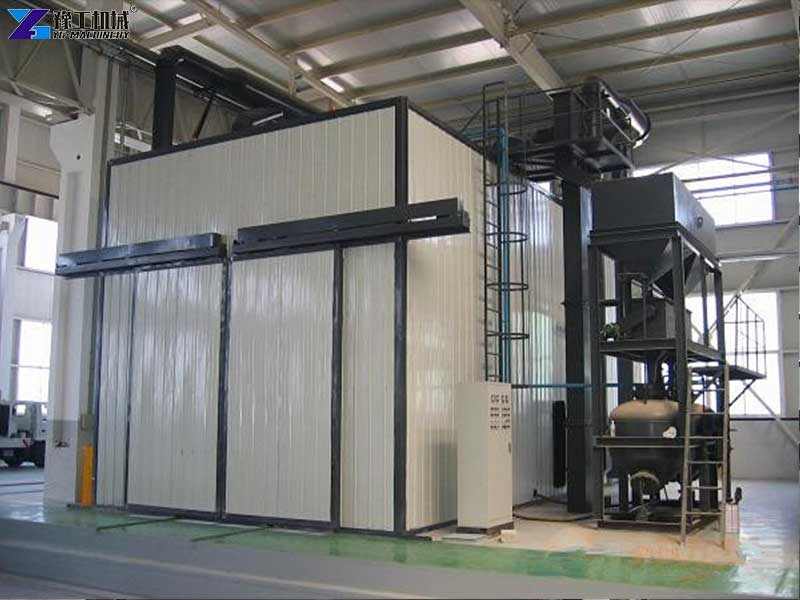

A sand-blasting room is a fully enclosed, dedicated workspace built for professional industrial surface blasting operations. It builds a tightly controlled working zone for blasting media to remove rust, aged paint, oxide layers and surface flaws from workpieces. The enclosed structure drastically cuts harmful dust exposure for on-site operators, lowering long-term respiratory health hazards and boosting overall operation safety far more than open-air blasting work. Meanwhile, it contains blasting media and contaminants inside the working area to avoid environmental pollution and material waste, delivering stable, repeatable surface finishing outcomes for all kinds of metal workpieces, and has become a mainstream setup for modern processing and maintenance workshops.
Sand Blasting Room Technical Parameter
| Size of Blasting Room | Size of workpieces | Blasting Gun Qty |
| 6000×6000×5000mm | 3000×3000×2500mm | 2 |
| 6000×6000×6000mm | 3000×3000×3500mm | 2 |
| 8000×6000×5000mm | 5000×3000×2500mm | 2 |
| 8000×6000×6000mm | 5000×3000×3500mm | 2 |
| 10000×6000×6000mm | 7000×3000×3500mm | 2 |
| 15000×6000×6000mm | 12000×3000×3500mm | 2 |
| 15000×8000×6000mm | 12000×5000×3500mm | 2 |
| 18000×8000×6000mm | 15000×5000×3500mm | 4 |
| 18000×10000×8000mm | 15000×7000×5500mm | 4 |
8 Application Fields of YG Sand Blasting Room
- Machinery Manufacturing Industry: Refines workpiece surface roughness to lay a solid foundation for follow-up painting and coating processes.
- Hardware Processing Industry: Removes machining burrs and uneven surface traces to upgrade the visual texture of finished hardware products.
- Ship Repair Industry: Handles rust elimination for ship components and can be relocated to ship docking sites to lift overall processing efficiency.
- Bridge Maintenance Industry: Clears aged protective coatings from bridge structures, preparing surfaces for new anti-corrosion coating application.
- Automotive Renovation Industry: Treats vehicle frame and car body base materials to remove corrosion and old coatings for subsequent refurbishment work.
- Steel Structure Industry: Conducts blasting pre-treatment to enhance the anti-corrosion capability of large steel structural parts.
- Outdoor Repair Operations: Works for pipeline rust removal and on-site equipment refurbishment, cutting repeated transportation costs for large workpieces.
- Small-batch Production: Fits flexible small-order processing tasks, adapting to frequent shifts in workpiece specifications and treatment standards.
Advantages of Sand Blasting Room
Sealed enclosure design locks dust and media inside the workspace, fully meeting emission standards. The matched ventilation and dust collection system keeps stable internal air pressure, avoiding splashes and blind blasting zones to maintain uniform workpiece finishing quality. The robust inner lining also lets it function well as a shot-blasting room for heavy-duty casting treatment.
Modular foldable framework supports easy relocation and assembly. It can be fully set up or disassembled within 2-8 hours, suiting temporary job sites and outdoor working scenarios.
A multi-level dust filtration setup traps nearly all flying dust particles, letting cleaned air discharge safely to protect operators and surrounding environments.
Flexible configuration supports different blasting hosts and rotary workpiece tables. You can pair it with portable sand-blasting booth modules and a dry ice sand blaster to meet diverse processing requirements. Operators can adjust all sealing materials and dust removal components to fit your working needs.
Comprehensive safety upgrades include impact-resistant transparent viewing windows and protective gear at blasting inlets, blocking direct contact between workers and high-speed blasting media to lower accident risks. Flame-retardant surrounding fabric also raises fire safety for long, continuous shifts.
Optimized dust collection structure simplifies daily upkeep, lowering regular maintenance workload and long-term running expenses.
FAQ About YG Sand Blasting Room
A: The portable sand blasting booth can adapt to a wide selection of common blasting abrasives, including steel shot, steel grit, silica sand, glass beads and alumina. You can pick the proper abrasive type based on your workpiece base material and the specific surface finishing standard you need to hit.
A: Professional technical staff are not required for installation. Its modular foldable structure makes assembly straightforward: 2 to 4 regular workers can complete unfolding and setup work within 2-8 hours. A detailed installation handbook is included, and our team provides free written technical guidance for the whole assembly and commissioning process.
A: Frequent replacement is unnecessary. The filter bags adopt tough, high-efficiency washable materials. For routine daily operation, you only need to clean the bags every 3 to 6 months, and each bag can serve for 1 to 2 years. We also supply spare filter bags to keep your production running smoothly, cutting long-term consumable spending notably.
A: Yes, you can swap between different abrasives for separate batches of workpieces. Simply perform basic internal cleaning when switching media to prevent cross-contamination. Operators do not need to make major structural adjustments to the shot blasting room.
A: We have multiple standard room dimensions to match varied workpiece sizes. Smaller room versions take workpieces up to 3000×3000×3500mm, while our largest setup can process pieces as big as 15000×7000×5500mm, with 2 or 4 blasting guns configured to match different processing loads.
Practical Tips To Optimize Blasting Work Efficiency
- Match blasting gun quantity to your workpiece scale: Smaller-sized workpieces can run stably with 2 blasting guns, while extra-large or long workpieces benefit from 4-gun layouts to shorten single-batch processing time.
- Arrange workpiece loading sequences reasonably: Group workpieces of similar dimensions in one working cycle to reduce repeated adjustments of blasting positions, lifting daily throughput.
- Stick to the filter bag cleaning cycle: Following the 3-6 month cleaning interval keeps dust suction performance steady, preventing blocked filters from slowing down ventilation and blasting progress.
- Pre-classify abrasives by hardness: Separate soft and hard abrasives in storage to avoid mixing, which preserves both abrasive usability and the consistency of final workpiece surface effects.

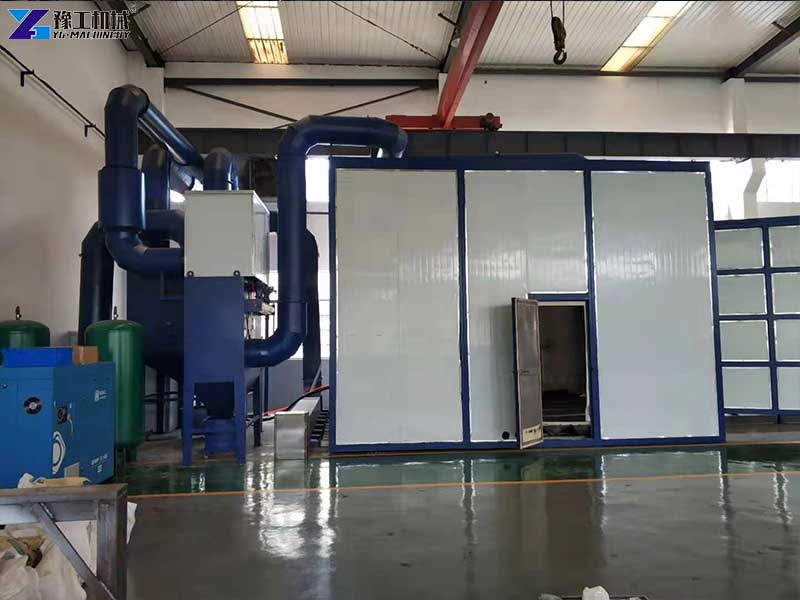

Sand Blasting Booth For Sale
Our sand blasting room integrates solid safety design, flexible adaptability and eco-friendly operation to cover all your industrial surface treatment demands. If you are looking for a reliable sand-blasting booth for sale or want to get tailored working suggestions and full technical parameters for your project, reach out to us for a transparent, customized quotation right away.
