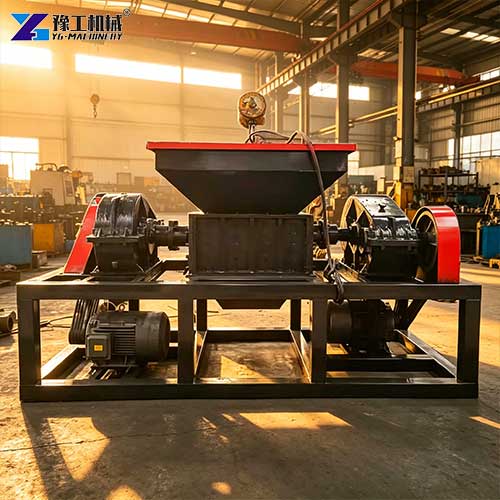

A scrap metal shredder machine is a professional waste recycling equipment that uses a double-shaft independent drive to shred various hard and tough materials. It can tear large pieces of waste into small, uniform pieces, which makes subsequent recycling and transportation more convenient and efficient.
Also known as a scrap shredder machine, it adopts a unique cutter shaft structure and four-angle rotary cutters. It works at low speed and high torque, so it will not get tangled or jammed during production, even when processing tough and sticky materials. You can use it to process metal, plastic, wood, rubber, electronic waste and many other types of waste, which greatly improves the efficiency of waste recycling.
Scrap Metal Shredder Machine Parameters:
| Model | YG-600 | YG-800 | YG-1000 | YG-1200 | YG-1400 | YG-1600 | YG-1900 | YG-2200 | YG-2600 |
| Power | 4-15*2 kw | 4-22*2kw | 4-30*2kw | 4-37*2kw | 4-45*2kw | 4-75*2KW | 4-90*2kw | 4-132*2kw | 4-160*2kw |
| Spindle Model | 18-20r/min | 18-35r/min | 18-35r/min | 18-35r/min | 14-35r/min | 14-25r/min | 14-25r/min | 16-25r/min | 16-25r/min |
| Capacity | 2-3t/h | 3-5t/h | 5-8t/h | 6-10t/h | 8-12t/h | 12-18t/h | 16-22t/h | 20-26t/h | 25-60t/h |
| Broken Size | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm | 3-10cm |
| Hopper Size | 820*900mm | 900*1000mm | 1200*1000mm | 1400*1000mm | 2000*2000mm | 2300*2000mm | 2300*2000mm | 2500*1800mm | 2425*1400mm |
| Dimensions | 2600*2000*1900mm | 2800*2000*1900mm | 3000*2000*1900mm | 3200*2000*1900mm | 4000*1700*2400mm | 5000*3000*2400mm | 6000*3500*2400mm | 7000*4000*4500mm | 8200*4000*4300mm |
Scrap Metal Shredder Machine Applications
- Metal recycling industry: You can use it to shred waste metal sheets, aluminum profiles, steel pipes, scrap car shells and other metal waste. The shredded metal pieces are easy to transport and smelt again, which greatly improves the recycling value of waste metal.
- Plastic & rubber recycling industry: It is suitable for shredding plastic barrels, plastic pipes, waste tires, rubber products and other polymer materials. The shredded materials can be directly used for reprocessing and granulation.
- Industrial waste recycling: It can process industrial waste such as wooden pallets, packaging barrels, waste furniture, construction waste and electronic waste, which helps enterprises reduce waste disposal costs and meet environmental protection requirements.
- Municipal solid waste treatment: It is suitable for shredding domestic waste, garden waste and other municipal solid waste. The shredded waste is smaller in volume, which reduces transportation costs and landfill space.
- This scrap shredder machine can handle almost all common solid waste, and is an essential equipment for modern waste recycling enterprises.
Why Choose YG Scrap Metal Shredder Machine?
Our industrial scrap metal shredder has many practical advantages designed according to actual recycling needs:
1. Heavy-duty structure, stable operation
The outer frame is made of a thick steel plate with precision machining, and it is equipped with a large-angle hexagonal rotating shaft and a large-caliber solid feeding hopper. You can directly put large raw materials into it without pre-cutting, which saves a lot of preparation time.
2. High-quality cutter, long service life
The moving blades are made of special alloy steel (9CrSi / SKD-11), which is hard and wear-resistant. The cutter shaft is made of carbon steel, which has a strong load-bearing capacity and a long service life. The heavy moving blade also ensures high shredding efficiency.
3. Double-shaft drive, no jamming
It adopts a double-shaft independent drive, which makes the material produce corresponding pressure to realize the automatic feeding function. The unique cutter structure will not cause shaft entanglement or equipment jamming during low-speed and high-torque production, which improves production efficiency.
4. Intelligent PLC control
It adopts a PLC control system, which supports automatic start, stop, forward and reverse rotation, and overload automatic reverse control. When the processed material is too large or too much, the scrap metal shredder machine will automatically reverse and stop to protect the machine body, which reduces the failure rate and operation difficulty.
5. Low noise and environmental protection
It has the characteristics of low speed, large torque and low noise. The dust generated during production can meet environmental protection standards and will not cause excessive impact on the surrounding environment.
6. Wide range of applications
It can shred almost all common solid waste, including metal, plastic, wood, rubber, electronic waste, tires, pallets, packaging barrels and so on. One machine can meet the shredding needs of multiple materials, which greatly improves equipment utilization.
3 Key Shredder Configurations You Should Confirm Before Buying
1. Blade material and thickness
Blade is the core wearing part of a shredder, and its material and thickness directly affect the service life and processing efficiency. Different materials require different blade configurations:
- If you process soft materials such as plastic, wood and ordinary thin metal, standard alloy blades can meet the needs, and the cost is lower.
- If you process hard materials such as thick steel plates, aluminum profiles and solid metal parts, you need to choose high-hardness alloy steel blades with thicker blade bodies, which are more wear-resistant and not easy to chip.
- Our industrial scrap metal shredder uses 9CrSi (SKD-11) special alloy steel blades as standard, and you can also choose thicker blade configurations according to your material hardness, which adapts to different processing needs.
2. Motor power and drive structure
Motor power determines the maximum processing capacity and the hardness of materials that the equipment can handle. The drive structure directly affects whether the equipment will jam when processing tough and sticky materials.
- If you mainly process light and brittle materials such as wood, plastic and thin metal sheets, you can choose a medium-power model, which is more cost-effective.
- If you process heavy, tough or tangled materials such as thick metal, tires and woven bags, you need to choose a higher-power model with a double-shaft independent drive structure, which can effectively avoid jamming and improve processing efficiency.
- Our scrap metal shredder machine has power options from 4kw to 152kw, and all models adopt a double-shaft independent drive structure, which can handle almost all common solid waste without jamming.
3. Feeding hopper size and structure
The size of the feeding hopper determines whether you need to pre-cut large materials before shredding. A suitable hopper size can save a lot of pre-processing labor and time.
- If you mainly process small pieces of material such as plastic fragments and small metal parts, a standard small feeding hopper is enough.
- If you process large pieces of material such as whole pallets, large plastic barrels and scrap car shells, you need to choose a large-caliber feeding hopper, so you can put the material directly without pre-cutting.
- Our feeding hopper sizes range from 820900mm to 24251400mm, and we also support custom hopper structures according to your material size.
Confirming these three configurations before buying can ensure that the equipment perfectly matches your actual production needs and avoids unnecessary cost waste.

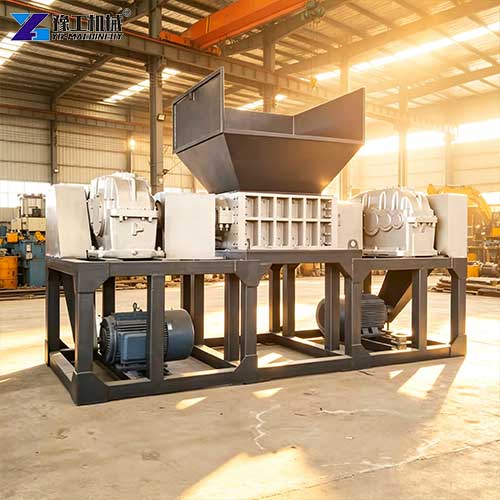

Metal Shredding Machine For Sale – Get a free quote!
If you are not sure what configuration you need, you can tell us your main processing materials, output requirements and site conditions, and we will recommend the most suitable configuration for you. If you are looking for a reliable metal shredding machine for sale, you can contact us to get a free configuration plan and detailed quotation.
