The concrete pumping equipment is a specialized construction machine designed to transport liquid concrete to high or faraway construction points through pipelines. It replaces traditional manual concrete transportation and tower crane delivery, greatly improving pouring efficiency and reducing labor intensity. For small and medium construction projects such as rural self-built houses, small factory buildings, municipal road repairs and foundation works, this equipment is far more cost-effective than large-scale construction machinery.
A small portable concrete pump is especially suitable for teams that often work on scattered small projects. It can be easily towed between different construction sites and does not require large hoisting equipment for installation, which greatly reduces the threshold of use. Many small construction teams can recover the equipment cost within 3-5 projects, making it a very high-return investment.

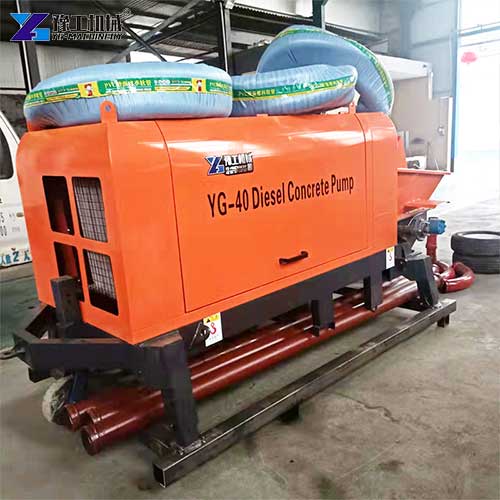

Concrete Pumping Equipment Technical Parameters
| Spec/Model | YG-10 | YG-20 | YG-30 | YG-40 |
| Work efficiency | 6m³/h | 12m³/h | 15-18m³/h | 20-22m³/h |
| Motor power | 15kw | 22KW | 37KW | 45KW |
| Working pressure | 15MPa/10MPa | 18MPa/12MPa | 18MPa/15MPa | 23MPa/15MPa |
| Aggregate size | 0.5-1.5cm | 0.5-2cm | 0.5-2cm | 0.5-2cm |
| Vertical/Horizontal conveying distance | 20m/50m | 40m/80m | 80m/100m | 120m/260m |
| Diameter of conveying pipe | 80mm | 80mm | φ80(100)mm | φ100(80)mm |
| Weight | 600KG | 1600kg | 2200kg | 2400kg |
| Dimensions | 1800*700*1100mm | 3400x1200x1600mm | 3800x1500x1600mm | 4000x1500x1550mm |
| Standard configuration | 10m steel pipe, 10m hose | 40m steel pipe, 10m hose | 90m φ80 steel pipe, 10m hose | 120m φ80 steel pipe, 10m hose |
How To Calculate Concrete Pumping Cost For Your Project?
Many project managers wonder if using a concrete pump is worth the investment. To figure out if concrete pumping equipment fits your budget, you need to calculate the total cost of use, not just the initial purchase or rental price. You can calculate the cost from three dimensions:
Labor cost savings
A portable concrete pumping machine only needs 2 workers to operate: one responsible for controlling the pump, and one responsible for the discharge end. In contrast, manual concrete handling requires 4-5 workers. Calculated according to the local labor cost, you can easily figure out how much labor cost you can save every day. For most projects, the saved labor cost can cover the equipment rental or depreciation cost in just a few days.
Time cost savings
Concrete pumping is 2-3 times faster than manual delivery, which can shorten the overall construction period by 30-40%. A shorter construction period means you can save on management costs, equipment rental costs and other overheads, and also take on more projects in the same time.
Material waste reduction
Manual concrete handling often causes a lot of spillage and waste, with a waste rate of about 5-8%. The closed pipeline transportation of concrete pumps has almost no material waste, with a waste rate of less than 1%. For projects that use a lot of concrete, this alone can save a lot of material costs.
When you add up all these savings, you will find that using a concrete pump is far more cost-effective than traditional methods, even for small projects.
5 Common Mistakes To Avoid When Choosing Concrete Pumping Equipment
When shopping for concrete pumping equipment, many first-time buyers fall into common traps that lead to wasted money and project delays. Avoiding these 5 mistakes will help you pick the right equipment for your needs:
1. Choosing a model with too much or too little capacity
Some buyers think the bigger the better, and choose a large model with high delivery volume. But for small projects, large models not only cost more to buy, but also consume more fuel, which increases the use cost. On the other hand, choosing a model with insufficient delivery height or volume will lead to failure to meet project requirements and delay the construction period. You should choose the model according to your most common project scale, not the maximum demand you may encounter once a year.
2. Ignoring site adaptability
Many small construction sites have narrow roads and limited space. Some large concrete pumps cannot enter the site at all, or need a lot of space to operate. If you often work in rural areas or small urban sites, you should give priority to models with small size and good mobility, which can enter narrow sites smoothly.
3. Only looking at the initial price, ignoring operating costs
Some buyers only compare the initial purchase price, but ignore the later fuel consumption, wearing parts cost and maintenance cost. Some cheap models have very high fuel consumption, and the extra fuel cost in a few months can exceed the price difference. You should calculate the total cost of use, not just the initial price.
4. Buying a model that is too heavy to move
If you often work on scattered projects in different locations, you need to pay special attention to the mobility of the equipment. Some models are too heavy to be towed by ordinary vehicles and require large trucks to transport them, which greatly increases the transportation cost and time.
5. Ignoring the adaptability to different concrete mixes
Some low-priced pumps can only transport concrete with a specific slump and are easy to block when encountering concrete with large aggregate or low slump. You should choose a model with strong adaptability, which can handle different types of concrete commonly used in construction.
If you are not sure which model suits your project, you can tell us your common project scale, delivery height and site conditions, and we will recommend the most cost-effective model for you. If you are looking for a cost-effective concrete pump trailer for sale, we have a range of models to fit different budgets.
Key Features of Concrete Pumping Equipment

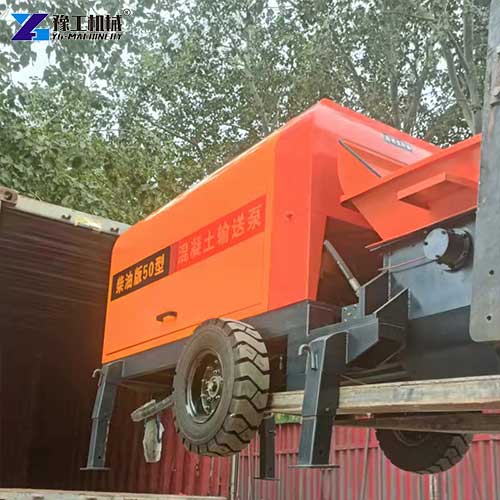

- Strong mobility: This small portable concrete pump adopts a trailer-type design, which can be towed by ordinary cars or pickup trucks and can easily enter narrow construction sites. It is very suitable for scattered small projects.
- High delivery efficiency: The equipment can deliver 5-10 cubic meters of concrete per hour, and the maximum delivery height can reach 30 meters, which can meet the needs of most small and medium construction projects.
- Simple operation: The control panel is simple and easy to understand. Ordinary construction workers can master the operation after 1-2 days of training; no professional technicians are required.
- Low operating cost: The equipment has low fuel consumption, and the wearing parts are durable and easy to replace, so the later use and maintenance costs are very low.
- Strong adaptability: This portable concrete pumping machine can adapt to different types of concrete with different slumps and is not easy to block pipes. It is suitable for various construction scenarios such as house building, road construction and foundation works.
- Stable and durable: The core hydraulic system and conveying pipeline are made of high-quality materials, which can work continuously for a long time on construction sites, with a low failure rate and long service life.
If you are interested in a concrete pump trailer for sale or want to know more about product parameters and prices, contact us today. You just need to tell us your common project scale, delivery height and site conditions, and we will provide you with a free project solution and detailed quotation.
