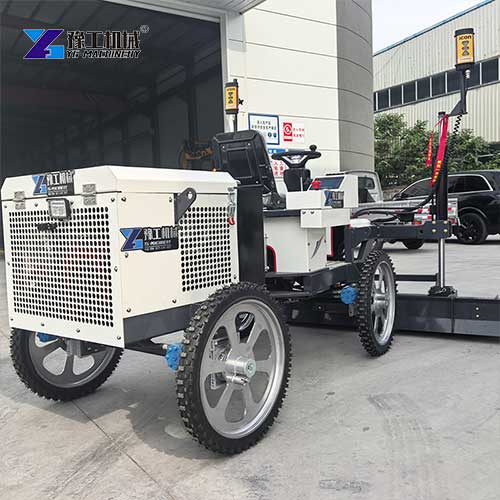

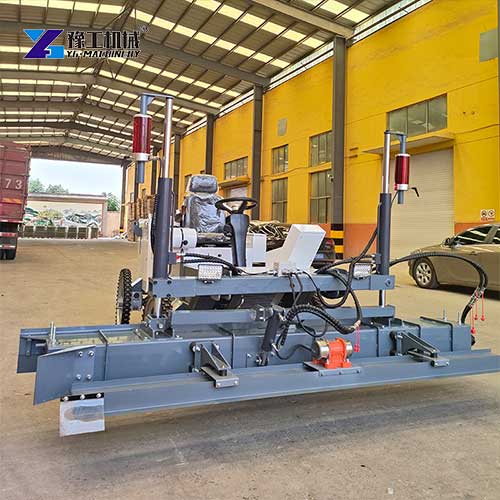

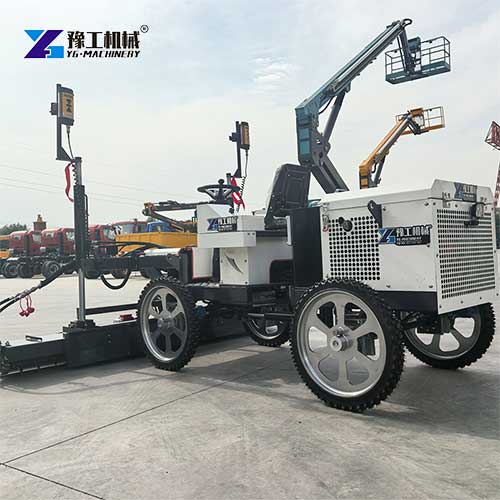

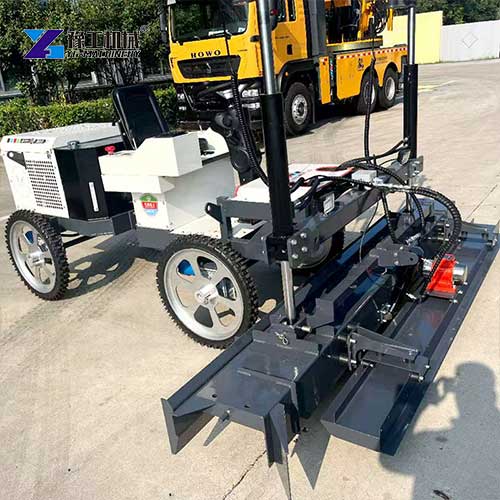

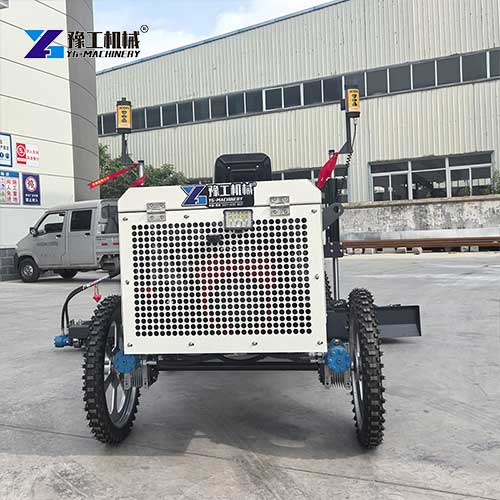

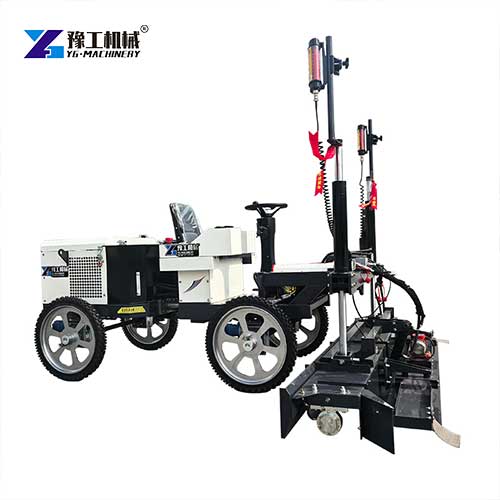

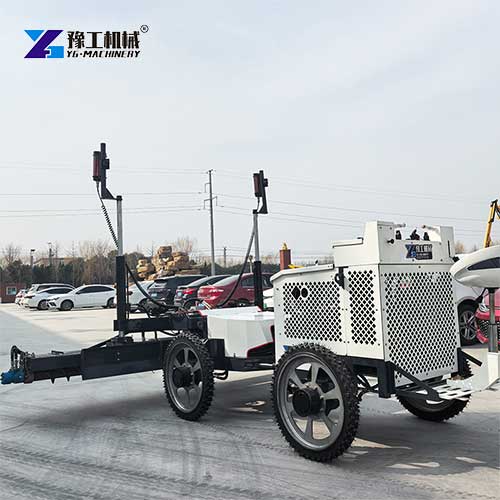

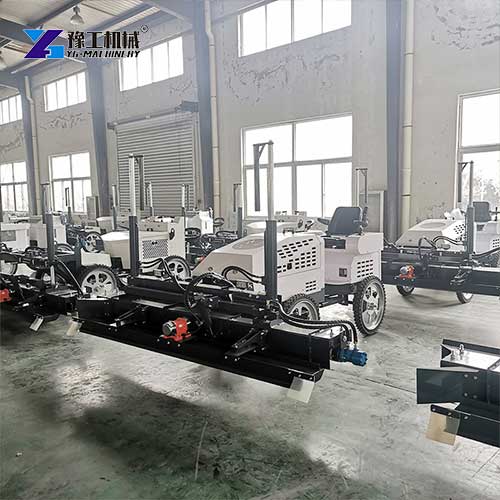

The concrete laser leveling machine is a professional, high-precision construction equipment designed for automated, high-efficiency concrete surface finishing. As an advanced automatic concrete leveling machine, it eliminates the error of manual leveling and achieves millimeter-level flatness control for large-area concrete pouring. This concrete floor leveling machine is widely used in various concrete construction projects, replacing traditional manual screeding and large-scale leveling equipment, to significantly improve construction efficiency, reduce labor costs, and ensure the long-term stability and flatness of the concrete surface.
Concrete Laser Leveling Machine Product Parameter:
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
How Do Concrete Laser Leveling Machines work?
This automatic concrete leveling machine relies on a high-precision laser control system as the core reference to achieve fully automated leveling control during concrete pouring. First, the laser transmitter sets a fixed reference plane in the construction area, which is not affected by the fluctuation of the construction site. The laser receiver on the equipment captures the laser signal in real time and transmits the data to the built-in microcomputer control system. The system calculates the height deviation in real time and automatically adjusts the height of the screed head through the electric or hydraulic control mechanism to ensure that the screed head always maintains the set elevation. At the same time, the high-frequency vibrating screed head completes the compaction and finishing of the concrete in one pass, achieving a flat, dense concrete surface with consistent elevation.
YG Concrete Laser Leveling Machine Application Areas:
1. Industrial Plant & Warehouse Construction
This machine is ideal for large-area concrete floor builds in industrial workshops, logistics warehouses, cold storage facilities and distribution centers. It delivers the ultra-high flatness required for smooth forklift operation and automated logistics equipment like AGVs, eliminating uneven surfaces that cause equipment wear, jams, and safety risks.
2. Commercial & Public Building Construction
Widely used for floor construction in shopping malls, office buildings, exhibition halls, stadiums, and hospitals, this concrete floor leveling machine creates a perfectly smooth, even surface. It meets the strict decorative and functional needs of commercial spaces, and cuts down on costly rework for later floor tiling, epoxy coating, or decorative finishing.
3. Municipal & Transportation Engineering
Perfect for concrete paving work on urban roads, public parking lots, airport aprons, public squares, and pedestrian streets. It ensures consistent flatness and compaction across the entire surface, which prevents cracking, potholes, and uneven wear, greatly extending the service life of the pavement and cutting long-term maintenance costs.
4. Residential & Real Estate Development
Commonly applied to floor construction for residential communities, villas, and apartment buildings, including basement floors, underground garages, and indoor living spaces. It delivers a level, consistent base in the first pour, eliminating the need for time-consuming and costly secondary leveling work before floor finishing.
5. Prefabricated Building & Precast Component Production
Used for high-precision leveling of precast concrete slabs, wall panels, and other prefabricated components in precast factories. It ensures strict dimensional accuracy of every component, so they fit together perfectly during on-site assembly, avoiding installation delays and rework caused by size mismatches.
6 Advantages of Concrete Laser Leveling Machine:
- Superior Flatness & High Precision:Unlike traditional manual leveling that relies on worker experience and string lines, these machines use laser guidance and intelligent control to adjust height in real time, keeping surface flatness errors within millimeters. This ultra-smooth base meets strict industrial and commercial standards while reducing long-term uneven settlement risks.
- Higher Construction Efficiency:With a wide working screed and integrated vibration system, the machine completes compaction, leveling and finishing in a single pass. It covers far more area per hour than manual work, greatly shortening project timelines, especially for large-area projects like logistics parks and factory floors.
- Significantly Lower Labor Costs:Only 1-2 workers are needed to operate the machine, a sharp reduction from the 5-8 workers required for traditional manual screeding. Fewer staff cuts direct labor expenses, while the machine’s consistent performance eliminates costly rework from human error.
- Stronger Compaction & More Durable Floors:The built-in vibration mechanism fully compacts concrete during leveling, creating a denser, stronger surface. This improves the floor’s wear resistance and load-bearing capacity, effectively preventing common issues like cracking, peeling, and dusting, and reducing long-term maintenance needs.
- Wide Adaptability to Diverse Construction Sites:With flexible driving modes and adjustable working parameters, automatic concrete leveling machines adapt to various scenarios. They work efficiently in large open areas like warehouses and airport aprons, as well as narrow spaces such as basements and indoor residential floors.
- Easy Operation & Low Training Threshold:Most models feature a user-friendly walk-behind design with intuitive handle controls and automated leveling functions. Even operators with limited experience can master basic operations after short training, lowering the difficulty of staff recruitment and training for construction teams.
FAQ About YG Concrete Laser Leveling Machine
A: It adopts a low-ground-pressure walking design, which will not sink into fresh concrete under normal working conditions, and adapts to most uneven construction sites.
A: It adapts to a concrete slump range of 80-200mm, suitable for most commercial concrete used in common floor and pavement projects.
A: Yes, its compact body design allows flexible operation in basements, indoor spaces, and other limited construction areas.
A: The laser system uses an anti-interference design, maintaining a stable signal and accurate leveling control even in strong direct sunlight.
A: Under normal conditions, it completes 800-1200 square meters per day, 3-5 times more efficient than traditional manual screeding.

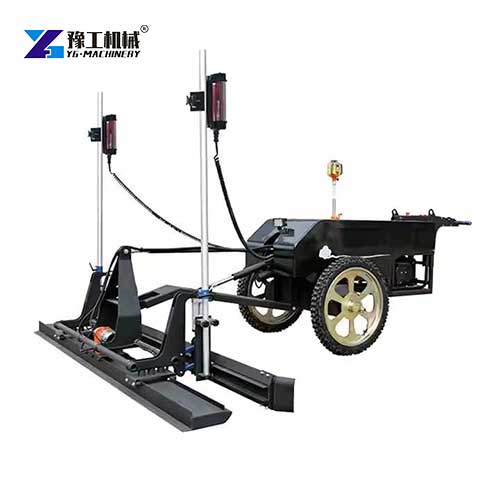

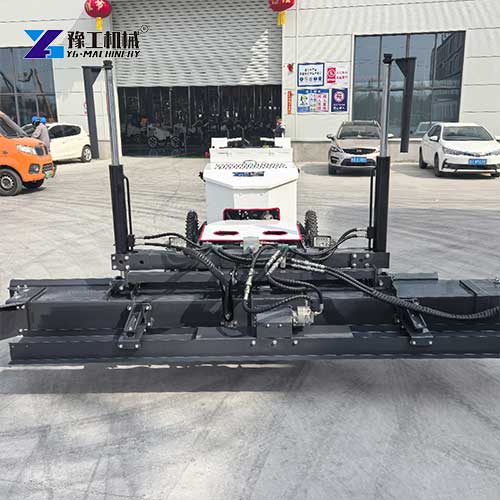

YG Concrete Leveling Machine For Sale
High-precision concrete floor construction is the core of project quality and long-term service life, and reliable, high-performance leveling equipment is the key to achieving this. As a professional construction machinery manufacturer with years of R&D and production experience, YG’s concrete laser leveling machine is built with strict quality control and advanced laser technology. Every unit undergoes rigorous pre-delivery testing, with 4 models to fit projects from small indoor renovations to large industrial plant builds.
If you are looking for a reliable concrete leveling machine for sale, want an exclusive quotation, or more product details, contact the YG team today.
