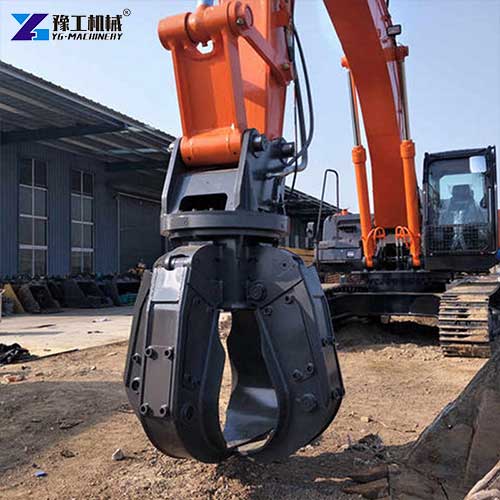

An excavator rotating grab is a versatile hydraulic attachment designed for gripping and moving irregular materials like scrap metal, plastic waste, and industrial debris. The attachment mounts onto an excavator arm and uses hydraulic power to open and close its petal-shaped jaws, creating a secure hold on bulky or uneven loads. Most excavator grab attachments come with optional 360-degree rotation functionality that lets operators position the grab precisely without repositioning the entire excavator. This feature dramatically improves efficiency when sorting materials or loading trucks from different angles.

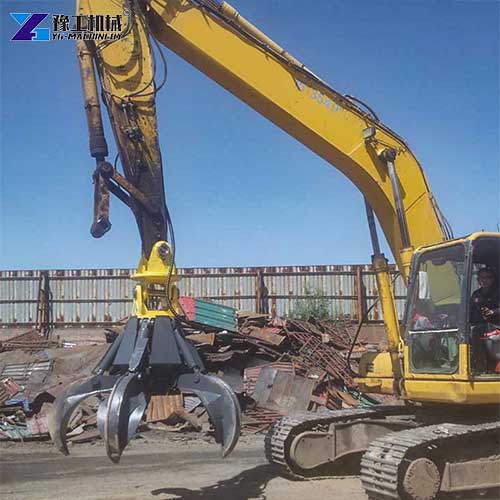

The design earns the name excavator orange peel grapple from its multiple curved jaws that resemble the segments of an orange peel when fully opened. This unique shape allows the grab to penetrate deep into piles of loose material and close tightly around the load, minimizing spillage during lifting and transport.
Excavator Rotating Grab Parameters
| Item/Model | Unit | YGO04A | YGO06A | YGO08A | YGO06B | YGO08B |
| No. of Jaw | piece | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 |
| Suitable Excavator | ton | 6-9 | 10-17 | 18-25 | 10-17 | 18-25 |
| Weight | kg | 355/420 | 900/1000 | 1650/1900 | 850/1000 | 1700/1950 |
| Max Open Jaw | mm | 1200 | 1600 | 2050 | 1900 | 2500 |
| Height of Opened Grapple | mm | 1000 | 1500 | 1700 | 1550 | 2000 |
| Working Pressure | bar | 200 | 260 | 320 | 260 | 320 |
| Working Flow | lpm | 50-100 | 60-120 | 200-250 | 60-120 | 200-250 |
| Capacity | m3 | 0.3 | 0.4 | 0.8 | 0.5 | 1 |
4-Jaw vs 5-Jaw: Which Configuration Fits Your Operation
When selecting an excavator orange peel grapple, one of the first decisions involves choosing between 4-jaw and 5-jaw configurations. Each design serves specific material types and work patterns, and picking the right one directly impacts daily productivity.
Four-jaw models work best for larger, bulkier pieces of material. The wider spacing between jaws allows the excavator rotating grab to envelop bigger objects, and the fewer contact points concentrate gripping force on heavier items. Scrap yards that handle mostly large structural steel, car bodies, or industrial waste often prefer this configuration for its ability to grab substantial pieces in a single cycle.
Five-jaw models excel with smaller and more fragmented materials. The additional jaw creates more contact points and tighter closure at the bottom, which prevents smaller pieces from falling through during lifting. Operations dealing with shredded metal, mixed household waste, or fragmented plastic typically get better results with a 5-jaw setup.
Both configurations work across the same excavator weight classes, and YG builds every excavator grab attachments model with the same high-strength materials regardless of jaw count. The choice comes down to what type of material you handle most frequently on site.
Case Study: Vietnam Scrap Recycling Operator
A scrap recycling company based in Vietnam reached out to YG looking for a reliable solution to handle mixed metal waste at their processing yard. The customer previously used manual loading methods and a basic clamp attachment, which slowed down their operation and created safety concerns for ground workers.
Their core requirement was a grab that could handle both bulky steel pieces and smaller shredded metal without dropping material during transfer. They also needed smooth rotation control for precise placement into sorting bins and truck beds.
After reviewing their excavator specifications and daily throughput targets, YG recommended a 5-jaw mini excavator grab with full 360-degree rotation matched to their 14-ton excavator. Our engineering team adjusted the hydraulic pressure settings to align perfectly with their machine’s existing hydraulic system, ensuring plug-and-play installation without additional modifications. We also provided detailed operation guidelines and maintenance checklists tailored to their tropical climate conditions.
Six months after installation, the customer reported that their loading speed increased significantly and they eliminated nearly all manual handling on the sorting line. Their operations manager noted, “The excavator rotating grab performs exactly as promised. The rotation is smooth, the jaws close tightly even on small pieces, and we haven’t had any wear issues despite daily use in hot, humid weather. We’re ordering a second unit for our northern facility.”
How 360-Degree Rotation Improves Work Efficiency
The 360-degree rotation function sets this equipment apart from standard fixed grabs and changes how operators approach material handling tasks. Understanding the practical benefits helps you decide whether the rotation upgrade justifies the additional investment for your operation.
Rotation allows the operator to turn the grab independently of the excavator’s upper structure. This means you can approach a pile of material from any angle, align the jaws with the load orientation, and place material precisely into containers or trucks without swinging the entire machine. On crowded job sites with limited space, this capability alone saves significant time per cycle.
Loading operations see the biggest efficiency gains. Without rotation, operators constantly reposition the excavator to line up with truck beds or sorting bins. With rotation, you simply extend the arm, rotate the grab to match the drop point, and release the load — all from one parked position. This reduces track wear on the excavator and cuts cycle times by a substantial margin on high-volume days.
The feature also improves safety on-site. Since the excavator stays in one spot during loading cycles, fewer machine movements mean less risk for ground workers and a reduced chance of striking nearby structures or equipment. Operators also maintain better visibility of the work area because they do not need to turn the cab constantly.

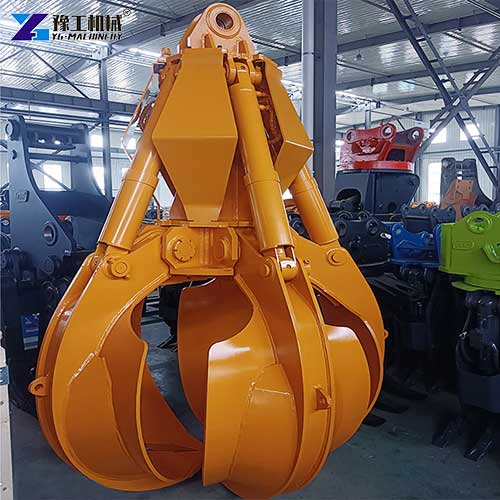

YG Mini Excavator Grab – YG Machinery
YG builds high-quality excavator grab attachments using premium wear-resistant steel and precision heat-treated components. Our factory offers multiple models covering 6 to 25 ton excavators, with both 4-jaw and 5-jaw configurations available to match different material handling needs. Every unit undergoes pressure testing and full cycle inspection before shipping, and our engineering team provides pre-sales compatibility verification to ensure the grab works with your existing excavator setup. Contact YG today to discuss your specific application and get a customized quote for your excavator rotating grab. Our specialists will help you select the right configuration, jaw count, and rotation option for your operation.
