A rotary drum cutter is a professional hydraulic excavator attachment designed for controlled milling, trenching and hard material breaking tasks. It installs directly on standard excavator arms and replaces traditional breakers for jobs that demand precise cutting force instead of violent impact.
YG promotes four mainstream models: YG140, YG160, YG180, and YG240, covering 5T to 24T excavator carriers, and accepts fully customized dimensions and performance tuning for special project demands. The rock drum cutter delivers steady cutting performance on stone, compact soil and aged concrete. Meanwhile, the drum cutter attachment integrates mature hydraulic control modules for stable all-day operation. Contractors widely equip a drum cutter excavator when projects require neat cut edges and recyclable excavated debris.
Rotary Drum Cutter Technical Specifications
| Model | YG140 | YG160 | YG180 | YG240 |
| H | 650mm | 820mm | 830mm | 1395mm |
| W | 410mm | 650mm | 780mm | 960mm |
| D | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180r/min | 200~250r/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |
Main Applications of Rotary Drum Cutter
1. Municipal Trenching & Pipeline Infrastructure Works
This is one of the most common use cases for civil engineering crews building water, sewage and utility pipelines. When paired with standard mucking machinery, the rotary drum cutter completes narrow, straight trench excavation ideal for municipal pipe jacking projects. Its precise milling motion creates uniform trench walls, and all dug soil and rock debris stays evenly crushed.
2. Controlled Concrete Demolition & Building Renovation
Concrete removal jobs often run the risk of damaging intact load-bearing walls, foundation slabs or adjacent finished surfaces when using heavy breakers. The steady cutting force of the rotary drum cutter delivers powerful breaking speed without violent shock vibration. Operators trim concrete edges, remove aged foundation sections and carve custom cutouts for new doorways or pipeline penetrations with full control.
3. Tunnel Excavation, Profiling & Underground Construction
Confined underground tunnel spaces leave little room for large, bulky breaking machinery, and uncontrolled impact can trigger loose rock collapses along tunnel walls. This drum cutter attachment fits easily into tight tunnel cross-sections, shaping smooth, consistent tunnel linings and profiling uneven rock faces. Its 360° full rotation function lets operators mill overhead arch sections, side wall contours and base ground in a single machine position, removing the need to repeatedly reposition the carrier excavator.
4. Mining Operations & Rough Ore Dressing
For open-pit and small underground mining sites, the rock drum cutter breaks raw ore and loose rock into evenly sized fragments on location. All milled waste and ore material can be reused on-site without extra transport to off-site crushing yards, slashing overall mine operation expenditure.
5. Extended Secondary Specialized Working Scenarios
- Tree stump removal: Cleanly grinds below-ground stump roots without tearing up surrounding topsoil for landscaping and land clearing jobs
- Site grading and slope profiling: Carves uniform, smooth inclines for road embankments and retaining wall foundation preparation
- Underwater cutting: With sealed customized hydraulic assemblies, it completes riverbank rock trimming and underwater pipeline trench excavation
- Road base trimming: Shapes precise road foundation layers for new highway and rural road paving works
Full Breakdown of Core Technical & Functional Advantages
1. Flexible Rotation & Adjustable Speed System
Universal 360° continuous rotation design: Operators tilt and rotate the cutting drum to complete vertical wall trimming, horizontal trenching and curved surface shaping without moving the entire excavator. This single adjustment function cuts total on-site operation time significantly for complex contour milling tasks like tunnel arch profiling and custom concrete cutouts.
Model-matched variable speed control: Each drum cutter excavator unit carries a calibrated rotation range aligned to its maximum torque output: small 5–10T carrier models run 0–120r/min for fast light soil milling, while heavy 20–24T variants operate at 0–90r/min to deliver full high torque for dense rock and thick concrete. Operators dial speed up or down based on material hardness to extend cutting pick service life while maintaining consistent daily production volume.
2. Stable Hydraulic Support Systems
Independent hydraulic cooling circulation: Long hours of non-stop milling generate substantial heat within hydraulic oil circuits; the built-in dedicated cooling system stabilizes internal fluid temperature, eliminating overheating shutdowns during full-day construction shifts. It maintains consistent torque output even in high-temperature outdoor summer job sites.
Energy-saving optimized hydraulic circuit: The internal oil flow distribution layout reduces unnecessary power loss from the carrier excavator’s hydraulic pump. Compared to generic aftermarket drum cutters, our design lowers total excavator fuel consumption during continuous operation, creating measurable long-term running cost savings for contractors running daily multi-hour jobs.
3. Durability & Site-Friendly Structural Design
Reinforced full wear-resistant construction: All high-friction contact zones on the cutting drum, pick mounts and rotary joint receive extra-thick wear-resistant alloy plating. Standard cutting picks use high-strength wear steel to resist abrasion from sharp rock fragments, drastically lowering the frequency of pick replacement and unplanned maintenance downtime.
Integrated vibration and noise reduction structure: Internal buffer assemblies absorb cutting shock transmitted back to the excavator arm, cutting overall vibration transfer by a large margin. Lower vibration protects both the carrier excavator’s hydraulic components and nearby sensitive structures like underground pipelines and aged building foundations. Reduced operational noise also lets crews work in residential urban zones without strict noise restriction limitations.

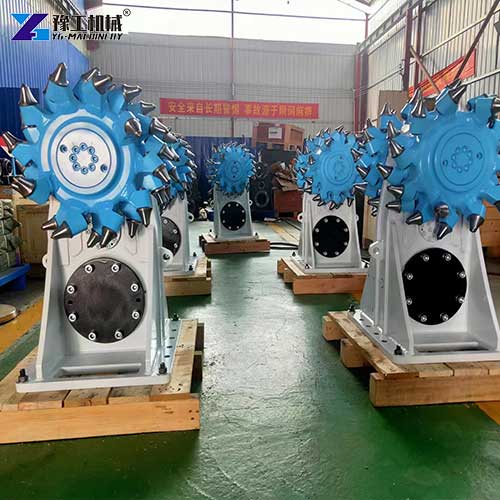

Rotary Drum Cutter For Sale-YG Machinery
We design and produce standard rotary drum cutter attachments covering all 5–24 ton excavator weight classes, alongside fully tailored custom builds to match special underground, underwater and high-hardness rock project requirements. Every unit completes full hydraulic torque, rotation and cooling system testing before dispatch to guarantee consistent on-site performance. Share your excavator tonnage, primary construction materials and core project working scenarios with our technical team to receive targeted performance recommendations, full official parameter sheets and a customized project quotation.
