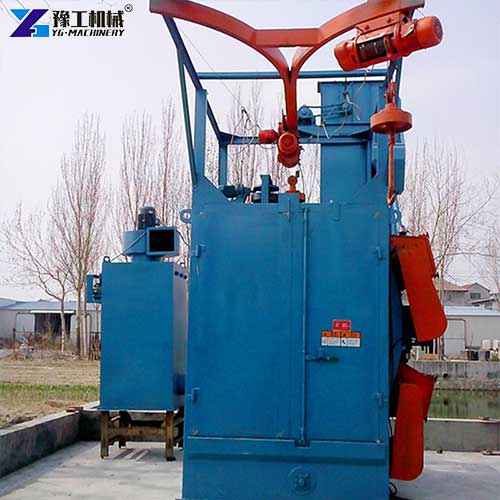

A hanger-type shot blasting machine is the industry standard for high-quality, batch surface treatment that solves the biggest pain points of modern manufacturing: inconsistent finish quality, slow processing speeds and high labour costs. It removes rust, mill scale, old paint and surface contaminants from metal parts while simultaneously improving fatigue resistance and creating the ideal profile for paint, powder coating or galvanising. This design excels at processing complex castings, forgings and structural components with zero blind spots. We offer not only hanger shot blasting machines, but also industrial shot blasting machines, small sand blasters and dry ice cleaning machines. YG builds rugged, production-ready surface treatment equipment optimised for 24/7 industrial operation. Contact YG today to discuss your specific requirements and receive a customised solution tailored to your production needs.
YG Hanger Type Shot Blasting Machine Technical Parameter:
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
Hanger Type Shot Blasting Machine Applications
- Automotive & Transportation: The machine efficiently cleans engine blocks, transmission housings, chassis frames and wheel rims, ensuring optimal coating adhesion and long-term corrosion resistance for vehicle components.
- Heavy Engineering Machinery: Processes excavator arms, bulldozer bodies, loader buckets and crane booms to remove mill scale and welding residues, enhancing structural durability and paint retention.
- Foundry & Forging Industry: The machine quickly removes moulding sand and oxide scale from cast iron, steel castings and forgings, preparing parts for subsequent machining and finishing operations.
- New Energy Equipment: Treats wind turbine flanges, photovoltaic brackets and energy storage tank components to meet strict surface cleanliness standards required for outdoor long-term operation.
- Aerospace Components: A hook-type shot blasting machine processes aircraft landing gear, engine brackets and structural parts, removing heat treatment oxide skin and improving fatigue strength to meet aviation-grade quality requirements.

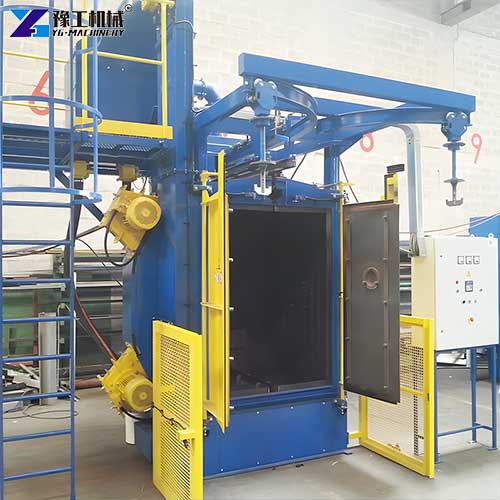

- Steel Structure & Decoration: The spinner hanger shot blasting machine cleans steel beams, columns, curtain wall keels and stair components, creating a uniform surface profile for galvanising and powder coating, extending building service life.
- Railway Transportation: A spinner hanger shot blasting machine handles train wheel sets, bogie frames and carriage accessories, removing rust and welding slag, ensuring safe and stable operation of railway equipment.
6 Advantages of the YG Hanger Shot Blasting Machine
- Full tonnage model coverage: 8 standard models available, supporting workpieces weighing 500kg to 10000kg and dimensions from 600×1200mm to 3000×3000mm, adapting to various production scales and part sizes.
- Matched power configuration: Each model is equipped with 2 to 5 centrifugal blast wheels, delivering shot blasting rates from 400kg/min to 1250kg/min. The lift and separator systems are synchronously matched with capacities of 24T/h to 75T/h, ensuring a stable production rhythm.
- 360° uniform cleaning effect: The rotating hanger drives workpieces to spin at a constant speed, combined with blast wheels arranged at multiple angles, ensuring all surfaces, including inner cavities, corners and gaps receive even blasting without blind spots.
- High-efficiency shot recycling system: Integrates screw conveyor, bucket elevator and air separator to effectively separate reusable steel shots, waste sand and fine dust, reducing daily shot consumption and operating costs.
- Fully enclosed dust control: Adopts a sealed blasting chamber structure, paired with ventilation systems with air volume ranging from 4000m³/h to 16000m³/h, capturing 99% of dust to maintain a clean and safe workshop environment.
- Durable core components: Key wear-resistant parts are made of high-chromium alloy steel, with a service life 3-4 times that of ordinary steel. The electrical system uses standardised components for stable operation and a low failure rate.
FAQ About Hanger Type Shot Blasting Machine
A: When operated with the correct shot size and velocity, the process removes only surface contaminants and a negligible amount of base material (typically less than 0.01mm). It will not affect the dimensional accuracy of properly machined parts. We can recommend the exact shot specifications for your material and tolerance requirements.
A: Production capacity depends on part size, shape complexity and desired surface finish. As a general rule, a 1000kg batch of average complexity castings will take 15-20 minutes to process in the YG3710 model. This translates to approximately 24-32 batches per 8-hour shift. We can provide a detailed cycle time calculation based on your specific part drawings.
A: While the initial investment is higher, shot blasting has significantly lower operating costs. It eliminates expensive chemical disposal fees, reduces labour costs by 70% and produces a higher quality surface that requires less rework. Most manufacturers recoup their investment in 12-18 months through cost savings alone.
A: Yes. You can easily mask threaded holes and delicate features before blasting to protect them. The adjustable blast pressure also allows you to reduce velocity for more fragile parts, ensuring they are cleaned without damage.
A: Exceeding the weight capacity can damage the hanger mechanism, rotation system and elevator. It will also reduce cleaning efficiency and create safety hazards. We always recommend selecting a model with at least 10% extra capacity to accommodate occasional larger parts.
A: The initial charge depends on the model size, ranging from 500kg for the smallest unit to 3000kg for the largest. Under normal operation, you will only need to add 5-10kg of shot per day to replace small amounts lost through wear and dust collection.
Hook Type Shot Blasting Machine For Sale
A high-quality hanger-type shot blasting machine is an investment that pays for itself through improved product quality, faster production times and lower operating costs. It eliminates the inconsistencies of manual surface treatment and creates a safer, cleaner working environment. Contact YG today to discuss your specific requirements and receive a customised solution tailored to your production needs.
