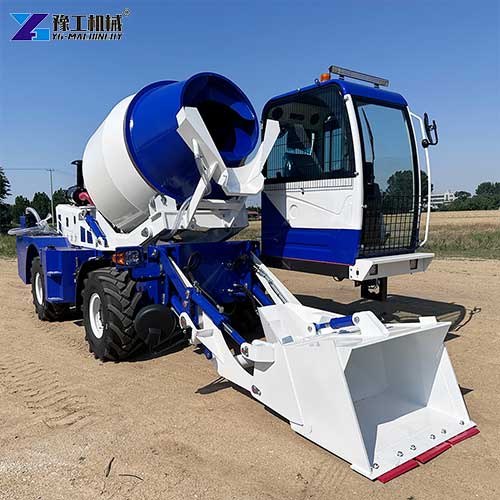

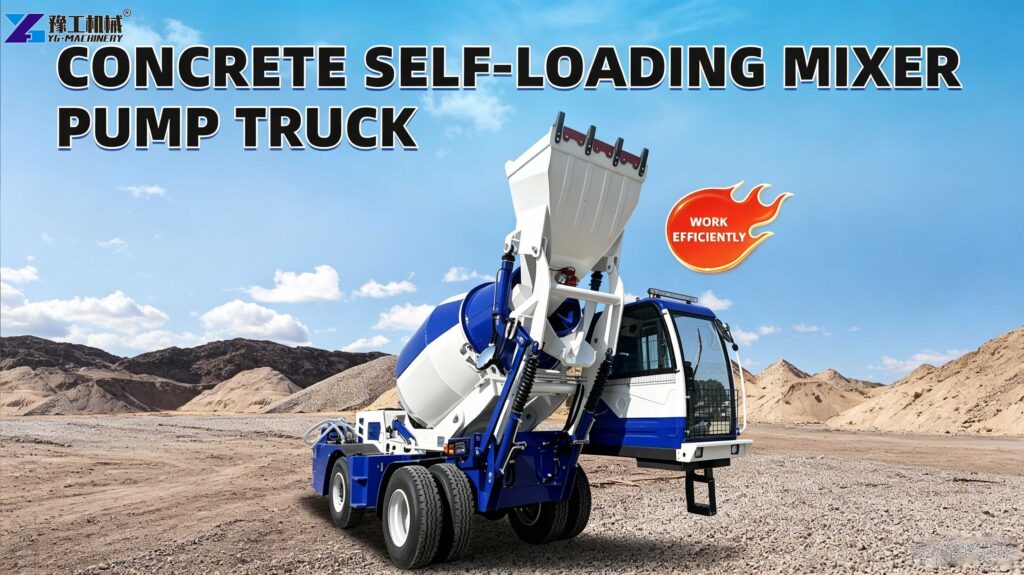

Concrete has a short working life. Once mixed, the clock starts ticking. Transporting ready-mix concrete from a batching plant to a job site means watching the clock, paying for waiting time, and hoping the truck arrives before the mix begins to set. A self-loading concrete mixer truck is an integrated mobile construction vehicle that integrates raw material feeding, automatic mixing, transportation and concrete discharging functions in a single unit. It eliminates the need for separate concrete batching plants and transport tankers, allowing a single operator to finish all concrete production steps independently on remote construction sites.
YG launches four complete models from YG1.8 to YG4.0 C, with single batch output spanning 1.6 m³ to 4.0 m³ and hourly production capacity ranging from 8 m³/h up to 18 m³/h. Every self-loading mixer truck is equipped with a reliable Yuchai engine, a two-way driving system, a full vehicle reversing camera and imported core spare parts, while supporting adjustable climbing capacity of 30° or 40° to adapt to rugged mountainous construction terrain.
Self-Loading Concrete Mixer Truck Parameters:
| Model | YG1.8 | YG2.6 C | YG3.5 C | YG4.0 C |
| Output per Lot | 1.6 m³ | 2.6 m³ | 3.5 m³ | 4.0 m³ |
| Production Capacity | 8 m³/h | 11 m³/h | 15.5 m³/h | 18 m³/h |
| Engine Power | 78 KW | 78 KW | 85 KW | 91 KW |
| Climbing Capacity | 30° | 30° | 40° | 40° |
| Weight | 6300KG | 7000KG | 8250KG | 9000KG |
| Length/width/height | 6700*2340*2700mm | 6650*2700*3200mm | 7300*2750*3350mm | 7700*2950*3400mm |
| Wheelbase | 2500mm | 2770mm | 2750mm | 2950mm |
Workflow of the Self-Loading Concrete Mixer Truck
The self-contained workflow of the self-mixing concrete truck eliminates auxiliary equipment coordination, with four standardized continuous operation steps that all operators can master quickly:

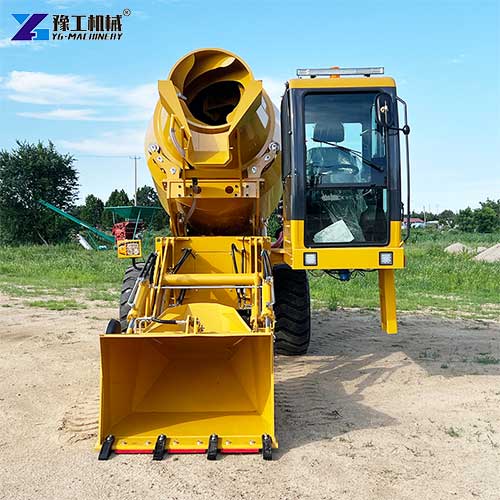

- Raw Material Automatic Loading: The front integrated loading bucket directly shovels sand, stone aggregate and cement powder into the mixing drum without manual material handling, cutting labor input on site.
- Variable Speed Uniform Mixing: The mixing drum supports adjustable rotation speed settings; operators tune drum RPM according to concrete strength formula to achieve fully homogeneous mixed mortar and aggregate distribution.
- On-site Transfer & Smooth Discharging: Two-way driving design enables flexible forward and reverse travel on narrow construction roads; the drum’s adjustable discharge outlet releases concrete evenly at target pouring positions without material splashing.
- Post-operation Automatic Cleaning: Built-in water tank and high-pressure cleaning pipelines flush residual concrete from the drum interior and bucket after daily work, preventing solidified concrete buildup that affects subsequent mixing efficiency.
5 Advantages of Self-Loading Concrete Mixer Truck
All structural and power configurations are optimized around off-grid independent construction demands, with five exclusive core strengths built into every model:
- Stable Yuchai supporting engine: Matched 78KW to 91KW Yuchai power units deliver steady power output under heavy load climbing and continuous mixing cycles, with low fuel consumption and long service life for long-shift outdoor work.
- Two-way bidirectional driving system: Independent forward and reverse driving control eliminates cumbersome U-turn operations on narrow mountain roads or tight construction sites, greatly improving site mobility and operation safety.
- Full vehicle reversing visual monitoring system: All-round reversing camera eliminates blind spots around the vehicle body, effectively reducing collision risks during narrow site movement and material loading processes.
- Premium imported core hydraulic spare parts: Key hydraulic valve groups, transmission bearings and sealing components adopt imported accessories, lowering internal leakage and overall equipment failure rate under high-frequency daily operation.
- Diversified full model lineup: Four graded models cover small 1.6m³ single-batch output up to heavy-duty 4.0m³ variants; buyers select matched engine power, climbing capacity and hourly production capacity based on their average daily concrete demand.
Why Does Concrete Quality Improve with On-Site Mixing?
Concrete quality depends on timing. The longer concrete sits in a truck after mixing, the more it loses workability. By the time a ready-mix truck arrives from a distant batching plant, the concrete may have begun to set. A self-loading concrete mixer truck mixes concrete on site. The operator loads raw materials and mixes them immediately before pouring. The concrete goes from dry ingredients to poured slab in minutes, not hours. This means the operator controls the mix design, adjusts for weather conditions, and ensures the concrete meets specification. No waiting for delivery. No uncertainty about when the truck will arrive. And no compromise on quality because of travel time.
YG Self Loading Concrete Mixer Truck
The YG series self-mixing concrete truck delivers four models covering batch outputs from 1.6m³ to 4.0m³. Every model features Yuchai engines, two-way driving, full-vehicle reversing cameras, and imported components for reliable performance. Production capacity ranges from 8m³/h to 18m³/h, matching different project scales. Climbing capacity reaches 30° to 40°, allowing access to challenging job sites. Dimensions range from compact to full-size, suiting different site access requirements. The YG1.8 mobile concrete mixer truck suits smaller residential and renovation projects. The YG2.6 C provides a balance of capacity and maneuverability. The YG3.5 C and YG4.0 C deliver the output for commercial and infrastructure work.
Contact us with your project requirements—typical concrete volume, site access, and grade conditions. We will recommend the right self-loading concrete mixer truck for your operation. Get a free quote for your self-loading mixer truck today.
