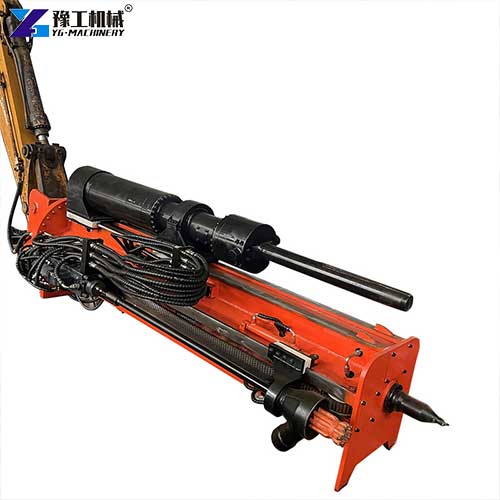

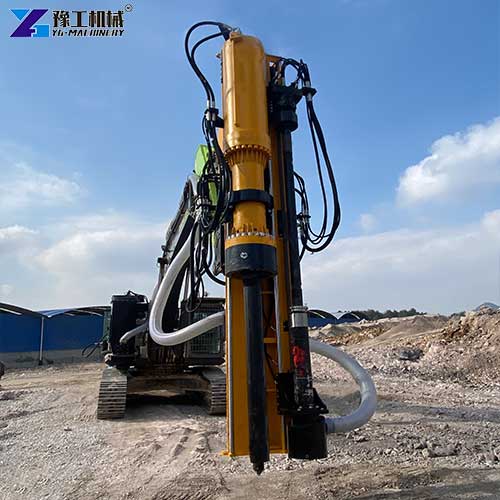

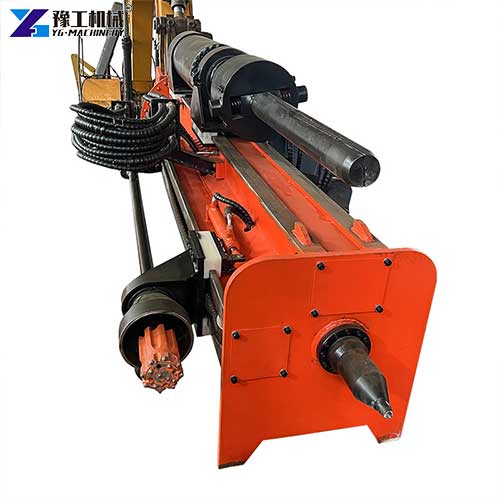

A hydraulic rock drill and splitter is an innovative excavator attachment that integrates drilling and rock splitting into a single seamless process. It eliminates the need for explosive blasting, producing no vibration, flying debris or excessive noise, making it ideal for urban construction, projects near sensitive areas, mining operations and road widening works. Traditional rock-breaking methods either carry significant safety risks or deliver extremely low efficiency, while this all-in-one tool solves both problems effectively. YG’s hydraulic rock drill and splitter series includes three precision-engineered models designed to match different excavator sizes. The YG-130 fits 20-36 ton excavators, the YG-152 works with 36-48 ton machines, and the YG-210 is compatible with 48-65 ton excavators. All models feature full remote control operation, a maximum hydraulic pressure of 35MPa, and a robust structure that handles even the hardest natural rock formations.
Hydraulic Rock Drill and Splitter Parameter
| Model | YG-130 | YG-152 | YG-210 |
| Suitable Excavator | 20T-36T Excavator | 36T-48T Excavator | 48T-65T Excavator |
| Maximum Horizontal Splitting Height | 9475mm | 9985mm | 10680mm |
| Maximum Vertical Splitting Height | 6715mm | 6905mm | 6770mm |
| Maximum Splitting Depth | 6705mm | 7025mm | 8050mm |
| Maximum Splitting Distance | 10225mm | 10875mm | 11640mm |
| Pilling Beam Length | 3875mm | 4850mm | 5525mm |
| Drilling Advance Stroke | 2000mm | 2600mm | 3500mm |
| Maximum Drilling Thrust Force | 50KN | 50KN | 50KN |
| Maximum Drilling Pull Force | 32KN | 32KN | 32KN |
| Piling Advance Stroke | 1500mm | 1800mm | 2300mm |
| Maximum Piling Thrust Force | 160KN | 160KN | 160KN |
| Maximum Piling Full Force | 100KN | 100KN | 100KN |
| Hydraulic Pressure | Max. 35Mpa | Max. 35Mpa | Max. 35Mpa |
| Hydraulic Flow | Min. 240L/min | Min. 240L/min | Min. 240L/min |
| Weight | 4200kg | 6200kg | 8300kg |
| Dimensions | 4210*1400*1785mm | 5270*1485*1840mm | 5810*1485*1840mm |
| Operation Mode | Remote Control | Remote Control | Remote Control |
Case Study: Rock Breaking Project in Indonesia
- Client Background: A local medium-sized civil engineering contractor in Indonesia, specializing in rural infrastructure and small-scale quarrying projects. They had relied on hydraulic breakers and manual jackhammers for all rock-breaking work for over 5 years.
- Core Challenges: Explosive blasting was strictly prohibited due to nearby residential areas and agricultural land. Hydraulic breakers only processed 15-20 cubic meters of hard granite per day, required 3 additional workers for debris clearing, and had extremely high fuel consumption. Frequent hammer bit replacements also added significant ongoing costs, and loud noise had already drawn community complaints that threatened to halt the project.
- YG Solution: We recommended the compact YG-130 model, which paired perfectly with their existing 25-ton excavator. Our team provided on-site basic operation guidance, and the regular excavator operator mastered all remote control functions within 2 hours. No additional equipment or specialized certification was required.
- Actual Results: Daily rock breaking output increased to 80-90 cubic meters, a 400% improvement over their previous setup. Labor costs dropped by 60% as the operation only required one operator, and fuel consumption decreased by 35% per cubic meter of material processed. The project team completed the entire rock breaking phase 6 weeks ahead of schedule, with zero community complaints throughout the project.
Suitable Rock Types and Hardness Performance
Understanding which rocks your equipment can handle is critical for selecting the right tool and avoiding unnecessary damage. A rock drilling and splitting machine works best on hard, brittle rock formations that split cleanly under hydraulic pressure.
Our equipment effectively processes most common construction and mining rocks, including granite, basalt, limestone, sandstone and marble. It delivers consistent splitting performance even on rocks with a compressive strength of up to 300MPa. The precision drilling system creates uniform holes that ensure even force distribution during splitting, resulting in clean, predictable breaks every time.
The machine is not designed for soft, crumbly rocks or highly fractured formations that do not hold a split. For these materials, traditional excavator buckets or hydraulic hammers may be more suitable. Our technical team can help you evaluate your specific rock conditions before purchase to ensure optimal performance.
Quick Installation and Excavator Compatibility

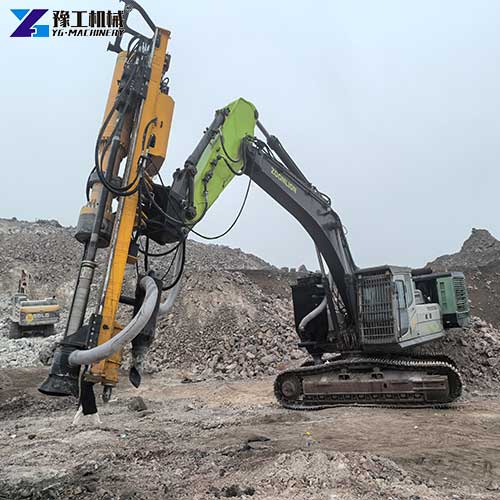

One of the biggest advantages of this equipment is its simple installation process that requires no permanent modifications to your excavator. An excavator drill and splitting machine connects directly to your excavator’s existing hydraulic system using standard quick couplers.
Two experienced workers can complete the entire installation and commissioning process in 4-6 hours using basic hand tools. You need no special training or technical expertise, and you can switch back to your regular excavator attachments just as quickly when needed. This flexibility allows you to use your excavator for multiple tasks on the same job site, maximizing your equipment utilization.
All our models are calibrated to match the standard hydraulic flow and pressure requirements of their respective excavator classes. This ensures that the machine operates at peak efficiency without putting unnecessary strain on your excavator’s hydraulic system.
Model Selection Guide for Your Rock Drilling And Splitting Machine
Each rock drilling and splitting machine is built with heavy-duty steel components to withstand harsh outdoor conditions and continuous daily use. This makes the hydraulic rock drill and splitter a cost-effective choice for operators looking to upgrade their rock-breaking capabilities. If you’re looking for a reliable rock drill and splitter for sale, matching the model to your excavator’s tonnage is the most important first step.
- YG-130 (20-36T Excavators): The most compact model, measuring 421014001785mm and weighing 4200kg. It is perfect for small-scale quarrying, residential foundation digging and rural road construction. Its small size allows it to maneuver easily in tight spaces.
- YG-152 (36-48T Excavators): This excavator drill and splitting machine strikes the perfect balance between power and maneuverability for most mid-sized projects. It offers a maximum splitting distance of 10875mm and is ideal for urban demolition, highway construction and medium-sized mining operations.
- YG-210 (48-65T Excavators): We design the heavy-duty model for large-scale hard rock mining and major infrastructure projects. It delivers the deepest splitting depth of 8050mm and the longest horizontal splitting height of 10680mm in the series.
Rock Drill And Splitter For Sale
Investing in a hydraulic rock drill and splitter transforms your rock-breaking operations, delivering faster, safer and more cost-effective results without the risks and restrictions of explosive blasting. YG’s models are built with heavy-duty steel components to withstand harsh outdoor conditions and continuous daily use. Contact us today to get a customized quote for your ideal rock drill and splitter for sale. Our technical team will review your project requirements and help you select the perfect model for your existing excavator.
