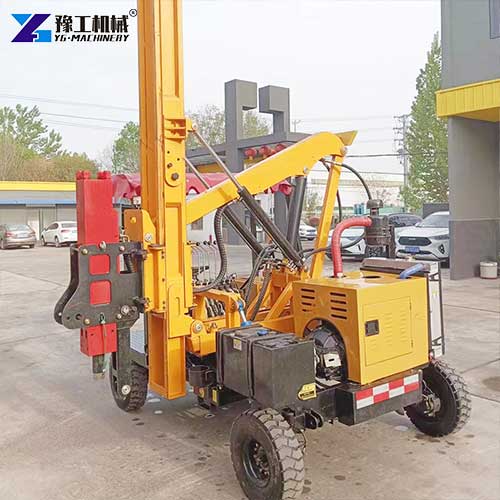

A guardrail pile driver is a purpose-built construction machine designed to drive steel guardrail posts into the ground for roadside safety barrier installation and maintenance projects. Mounted on a self-propelled wheeled chassis, it combines pile driving, position adjustment and site mobility in one integrated unit, removing the need for separate lifting gear and manual piling tools. A mini pile driver with guardrail function is an ideal fit for small and medium road projects, as it maneuvers through narrow work zones and shifts between post positions quickly without auxiliary transport. This equipment has become the standard solution for both new guardrail construction and old barrier replacement work across rural and urban road networks.
Guardrail Pile Driver Technical Specifications:
| Model | Small four-wheel | Drive mode | Rear wheel drive forward direction |
| Power | 37kw | Walking style | Hydraulic motor double-walking |
| Rotating speed | 2400 r/min | Tires | Four Wheels650-16 |
| Oil pump | Dual oil pump | Motor | Yunnei 490 |
| Chassis | Stable car chassis | Shipping Dimensions | 3.4*2.1*2.75m |
| Weight | 3.5T | Cooling system | Dual fan cooling |
| Braking method | Air brake |
The Growing Demand for Guardrail Pile Drivers
The global highway guardrail pile driver market reflects the scale of road infrastructure investment worldwide. Industry analysts value the market at approximately $1.2 billion in 2024 and project it to reach around $1.9 billion by 2034, with a compound annual growth rate of about 5.1%. Ongoing highway construction, road safety upgrades, and infrastructure maintenance programs across both developed and developing economies drive this growth.
Highway guardrails are one of the most visible and critical safety features on any road. In the United States alone, millions of guardrail posts are installed and replaced each year as part of routine maintenance and new construction. Each of those posts requires a pile driver to install.
The YG hydraulic pile driver machine is designed to meet this demand. It is a dedicated machine for guardrail post installation—not a multi-purpose attachment or a converted excavator. This focus means engineers optimize it for the specific demands of guardrail work: driving steel posts to exact depths, working along roadside shoulders, and moving efficiently between post locations.

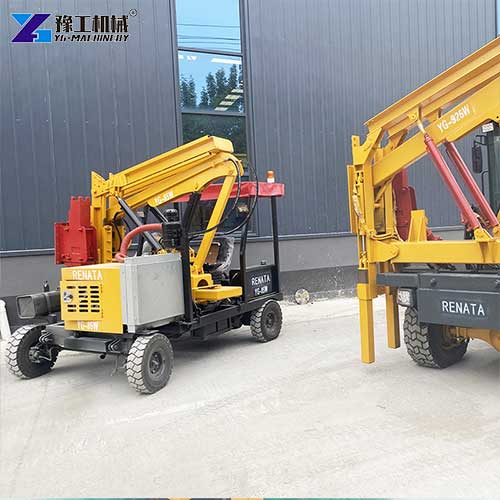

Applications of Mini Pile Driver With Guardrail
- Highway and expressway guardrail construction: It handles large-volume W-beam guardrail post installation along new road alignments, delivering consistent piling speed for long, continuous barrier sections.
- Rural road safety upgrades: For county and village road safety improvement programs, the machine navigates narrow road surfaces and installs guardrails at accident-prone sections efficiently.
- Municipal and scenic area barriers: It works on urban roadside guardrail replacement and scenic spot perimeter barrier piling, with minimal disruption to existing traffic.
- Temporary construction barriers: It also drives temporary safety posts for roadwork zones and construction site perimeters, adapting to different post sizes and soil conditions.
7 Advantages of the YG Guardrail Pile Driver
1. Self-Propelled Mobility
The YG guardrail pile driver moves under its own power. It does not require a separate transport vehicle to move between post locations along the highway work zone. The operator drives the machine from one post position to the next, reducing the time and labor required for repositioning.
On a typical guardrail installation project, posts are spaced 2-4 meters apart. Moving a towed machine between each post requires disconnecting, repositioning, and reconnecting—a time-consuming process. The YG self-propelled design eliminates this delay. The operator positions the machine, drives the post, and moves to the next location without leaving the cab.
2. Wheeled Configuration for Highway Work
The four-wheel design with 650-16 tires is specifically suited to highway shoulder conditions. Rubber tires provide traction on paved surfaces, gravel shoulders, and compacted earth without damaging the road surface.
3. Hydraulic Impact Power
The YG hydraulic pile driver machine uses hydraulic impact force to drive posts. This provides several advantages over mechanical or manual methods:
- Controlled force. The hydraulic system delivers consistent impact energy, ensuring each post is driven to the same depth.
- Adjustable power. The operator can adjust the impact force based on soil conditions—lighter for soft soil, heavier for compacted ground.
- Reduced operator fatigue. The operator controls the hammer from the cab, rather than swinging a sledgehammer or managing a drop weight.
4. 37kW Yunnei 490 Engine
The 37kW diesel engine provides sufficient power for continuous guardrail post installation. The engine is matched to the hydraulic system, ensuring consistent hammer performance even during extended operation. The diesel engine also means the machine operates independently of external power sources. It can work on remote highway sections where grid power is unavailable, and it can operate for full shifts without refueling.
5. Air Brake System
The air brake system is a critical safety feature for equipment operating on or near active roadways. It provides reliable stopping power, allowing the operator to control the machine’s movement precisely in work zone conditions.
6. Stable Four-Wheel Chassis
The stable car chassis provides a solid platform for the hydraulic hammer. The chassis design minimizes vibration during operation, improving both operator comfort and post-placement accuracy. A stable machine produces straighter posts with consistent depth, resulting in a guardrail system that meets safety specifications.
7. Dual Oil Pump Hydraulic System
The YG series features a dual oil pump system. This design provides consistent hydraulic flow to the hammer, even when the engine is operating at lower RPM. The result is reliable hammer performance in all working conditions.

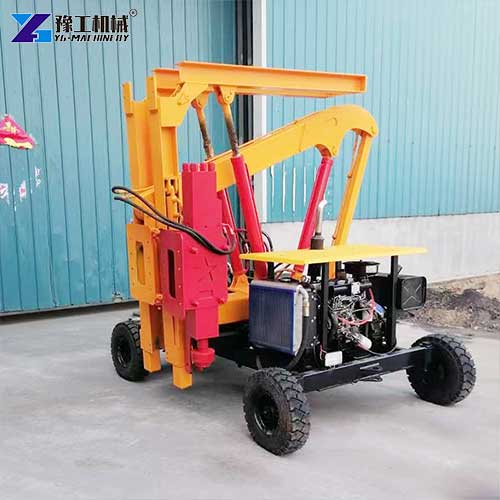

Highway Pile Driver For Sale
A reliable guardrail pile driver is a core asset for any team specializing in road safety barrier installation, repair and upgrade projects. YG manufactures every unit with heavy-duty hydraulic components, a proven industrial engine and a rugged reinforced chassis, ensuring consistent performance and long service life in demanding outdoor construction environments. Our technical team works with each customer to match the right chassis and hydraulic configuration to their typical project scale and site conditions.
If you are looking for a durable pile driver for sale for your guardrail construction or maintenance business, YG provides field-proven solutions you can count on. Contact our team today to share your project requirements, and we will provide a tailored configuration recommendation for your work.
