Remote control machine skates are battery-powered, wirelessly controlled material handling platforms that move heavy industrial equipment across factory floors, warehouses and construction sites using independent wheel drives and a handheld remote controller. This heavy equipment moving dolly sits low to the ground, allowing it to slide under equipment with limited bottom clearance, and it operates without external power cables, so the operator can move loads freely across open areas without being tethered to a power source. The industrial electric transfer cart uses an industrial-grade remote controller with an effective range of up to 50 meters, allowing a single operator to control the load from a safe viewing position without additional ground crew, and the independent wheel drives enable 360-degree in-place turning with zero turning radius for maneuvering in tight spaces.
Remote Control Machine Skates Specifications:
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimension（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30Ah (ternary lithium) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 120Ah (ternary lithium or lithium iron phosphate) | 48V 100AH (ternary lithium) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q355 steel | 10 mm Q355 steel | 12 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel |
| Drive wheel | 4 | 4 | 4 | 4 | 4 | 8 |
7 Advantages of Remote Control Machine Skates
1. Zero turning radius transforms maneuverability.
Each wheel drives independently, allowing the heavy-duty machinery skates to rotate 360 degrees in place. This eliminates the need for three-point turns or back-and-forth adjustments. In crowded workshops with limited clearance, this feature alone saves hours of positioning time.
2. Single-operator control replaces entire crews.
One person with a remote control does what previously required four to six workers with manual skates, pry bars, and wedges. The operator stands in the safest position with a clear view of the load, eliminating the communication delays and coordination risks that come with multi-person moving teams.
3. Ultra-low profile fits under tight machinery bases.
The YG remote control machine skates measure just 145mm to 185mm in height. Most industrial equipment has limited ground clearance, and these skates slide underneath without requiring the load to be lifted high off the floor. This low height also keeps the center of gravity low, reducing tipping risk.
4. Heavy-duty steel plate construction absorbs shock loads.
The platform uses Q355 steel plate, ranging from 10mm thickness on smaller models to 16mm on larger units. This structural steel resists bending and deformation even under extreme point loads. The robust construction also dampens vibration during movement, protecting sensitive equipment from shock damage.
5. Electromagnetic brakes hold loads securely on inclines.
The brakes engage automatically when the operator releases the remote control or when power is interrupted. This prevents loads from rolling on slopes up to 15 degrees. The braking system operates independently of the battery, so the load stays secure even if the battery runs flat.
6. Multi-unit synchronization handles oversized loads.
When a single heavy-duty machinery skates cannot support an unusual load configuration, operators can link two, three, or four units together. All synchronized units respond to the same remote control, moving in perfect coordination. This modular approach means one equipment investment covers standard moves and exceptional ones.

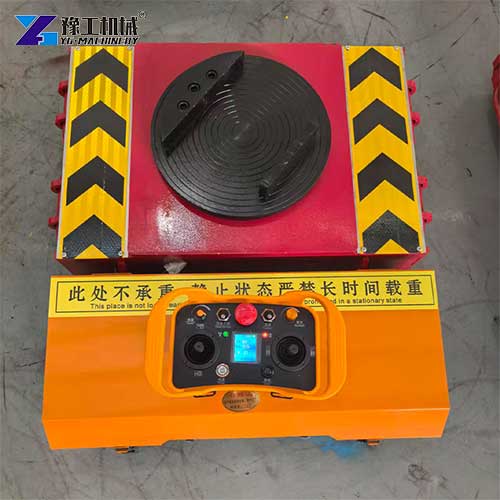

7. The industrial-grade remote control provides a reliable 50-meter range.
The remote operates on industrial frequencies that resist interference from welding equipment, motors, and other factory noise. The 50-meter range allows operators to stand well clear of the load while maintaining full control. An emergency stop button on the remote provides instant shutdown capability.
How to Choose the Right Configuration for Your Load?
Selecting the right setup for a remote control machine skate depends on load weight, dimensions, and the specific movement requirements of your facility. Understanding the available configurations helps you match the equipment to the job.
Single unit with two auxiliary skates. This is the most common configuration, covering about 90% of typical moving needs. One powered unit provides the drive force, while two unpowered auxiliary skates support the load at other points. This three-point heavy equipment moving dolly support system offers good stability and relatively agile steering. The load rests on three contact points, making it easier to turn and maneuver in tight spaces.
Two units with two auxiliary skates. For heavier or less stable loads, operators can use two powered units with two auxiliary skates. This four-point support provides greater stability and is preferred for loads that are particularly tall or have an uneven weight distribution. The additional powered unit also provides more tractive effort for moving loads across longer distances or up slight inclines.
Three or four powered units. For loads that require precise multi-directional movement—such as lateral shifting in extremely tight spaces—operators can synchronize three or four powered units. This configuration allows the load to move in any direction without changing orientation. Multiple units working together communicate wirelessly so that all movement sequences fit together precisely. This setup proves essential when moving oversized or irregularly shaped loads that require support at multiple points.
Understanding the three-point vs. four-point trade-off. A three-point configuration (one powered unit plus two auxiliary skates) offers more agile steering because the load pivots more easily. A four-point configuration (two powered units plus two auxiliary skates) provides greater stability for tall or uneven loads but requires more careful alignment during setup. For most standard machinery moves, the three-point configuration delivers the best balance of maneuverability and stability.
Remote Control Machine Skates Manufacturer
YG manufactures remote control machine skates with capacities from 10 to over 60 tons, 50-meter wireless remote control, 360-degree in-place turning, adjustable speeds from 2 to 10 meters per minute, 15-degree slope climbing, and multi-machine synchronization for standard and custom configurations. Every industrial electric transfer cart features a low-profile design for limited-clearance access, fast one-hour charging, and stable performance on slopes and uneven floors, with customizable rotating disks and non-standard configurations for special projects.
Tell us your load weight, dimensions, weight distribution, floor conditions and available space. We recommend the right remote-controlled machine skates and send a direct factory quote.
