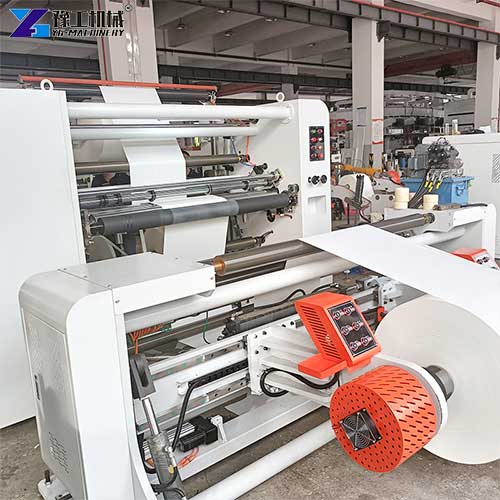

The global packaging and printing industry grows at 4.5% annually, driving surging demand for high-precision paper processing equipment. A paper slitter rewinder machine is the core equipment that converts large parent paper rolls into custom-width smaller rolls, serving as the critical link between paper mills and downstream manufacturers. It processes all types of paper materials, including kraft paper, coated paper, corrugated paper, label stock and tissue paper, delivering uniform rolls that meet strict production standards. This versatile paper slitter rewinder machine has become a standard in modern paper processing facilities, directly impacting production efficiency and product quality.YG offers three industrial-grade models (YG-1300, YG-1600, YG-1800) covering 1300-1800mm working widths, all built for reliable 24/7 operation.
Paper Slitter Rewinder Machine Parameter:
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Min width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |
How Slitting Precision Directly Impacts Your Profit Margin?
Many paper converters overlook the financial impact of poor slitting accuracy, but even minor deviations compound into crippling losses over time. What seems like a negligible 0.5mm width error can erase 8-12% of your profit margin annually, through four key cost channels:
- Irrecoverable Raw Material Waste: For a medium-sized operation running 20 parent rolls per day, a 0.5mm per-slit error generates 12-15kg of unusable paper waste per day. This adds up to 3.6-4.5 tons of wasted paper annually, costing $3,000-$6,000 at current global paper prices. Worse, this waste is completely avoidable with precision-engineered equipment.
- Rework and Downtime Costs: Non-conforming rolls require manual re-slitting or disposal, which ties up production capacity and labor. A single rejected batch can cause 2-4 hours of unplanned downtime, delaying other orders and risking late delivery penalties. Our industry data shows that poor slitting accuracy increases overall production costs by 15-20% for most converters.
- Customer Churn and Reputation Damage: Inconsistent roll widths cause catastrophic problems for downstream customers. A roll that is 1mm too wide will jam high-speed packaging machines, shutting down their entire production line. A roll that is 1mm too narrow will cause misalignment during printing, resulting in entire print runs being scrapped. These issues lead to lost repeat business and negative word-of-mouth in tight-knit industry circles.

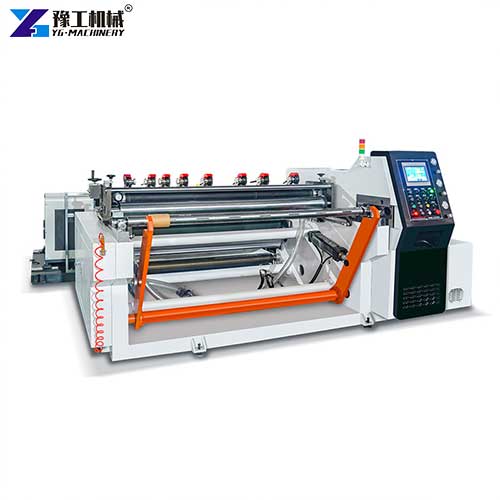

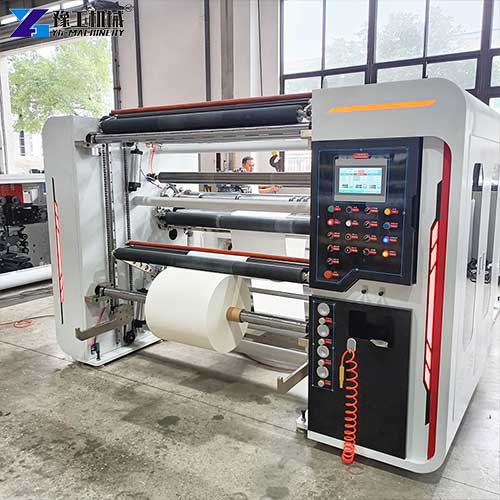

YG Paper Slitter Rewinder Machine Structure
1. Heavy-Duty Integrated Steel Frame
Built on a one-piece thickened steel frame (4000-5500kg), this rigid structure eliminates flexing and vibration—the top cause of slitting inaccuracy in lighter machines. Stress-relieved before assembly, it maintains precision for over 10 years of continuous use.

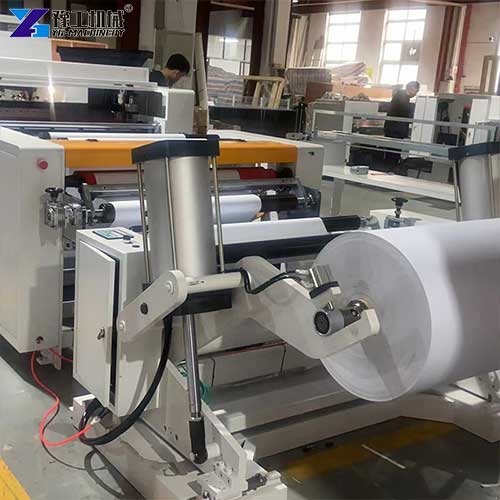

2. Precision Unwind System
Accommodates 1400mm-diameter industry-standard parent rolls. The pneumatic shaft enables loading in under 5 minutes, while the automatic tension controller adjusts braking force in real time, preventing stretching, wrinkling and breakage even at 350m/min.

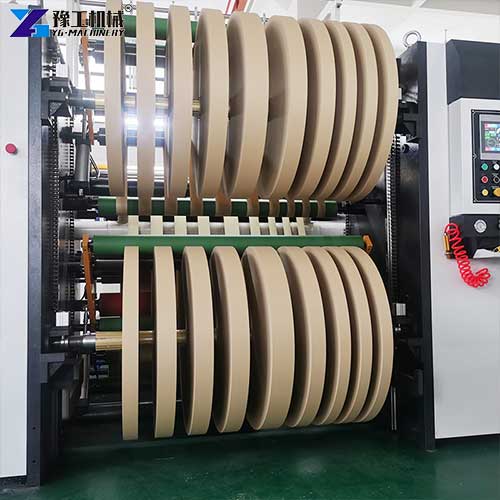

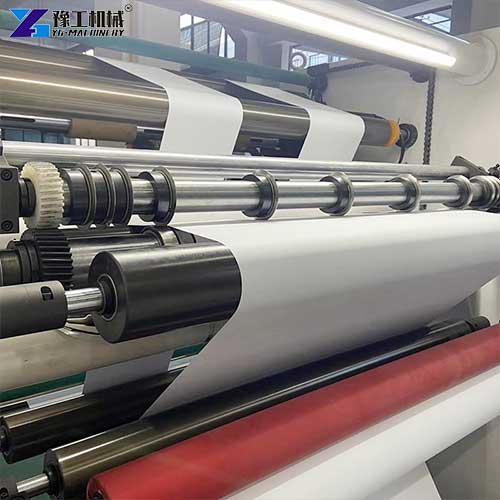

3. Modular Slitting Unit
Supports both razor and circular blades for all paper types and thicknesses. Quick-change blade holders cut setup time to under 10 minutes, with a minimum slitting width of 30mm for packaging and specialty label rolls.

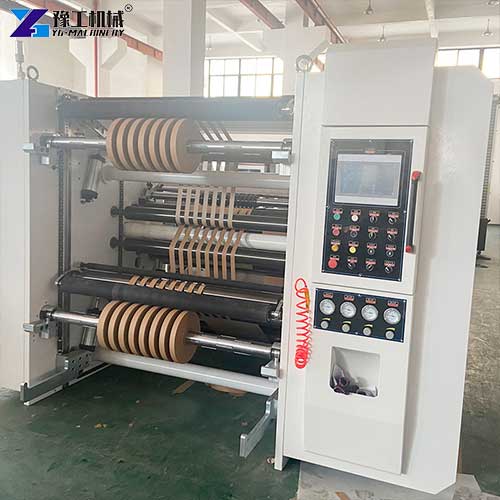

4. Closed-Loop Rewind System
Produces 1000mm-diameter finished rolls with uniform tension from core to outer layer. The closed-loop tension system automatically adjusts winding torque, eliminating telescoping and egg-shaped defects common in cheaper machines for smooth downstream operation.
5. Intelligent Control & Transmission System
Powered by high-efficiency AC motors (24-30kW) matched to each working width. The servo-driven system delivers ±0.1m/min speed accuracy, while the intuitive touchscreen displays real-time parameters and stores 100+ custom presets for fast setup.
Common Production Bottlenecks Solved By Modern Slitting Technology
Traditional slitting machines suffer from four persistent bottlenecks that limit production capacity and increase costs. A modern paper slitter rewinder machine eliminates these bottlenecks through advanced automation and precision engineering:
- Slow Order Changeover: Older machines require 45-60 minutes to change slitting widths and reconfigure for new orders. This means that for small-batch custom orders, you spend more time setting up the machine than actually running production. Our quick-change blade system reduces changeover time to less than 10 minutes, making small-batch production profitable for the first time.
- Frequent Paper Breakage at High Speed: Traditional mechanical tension control systems cannot adjust quickly enough to changes in roll diameter, leading to frequent paper breakage at speeds above 200m/min. Our servo-driven tension control system makes 100 adjustments per second, maintaining perfect tension throughout the entire unwind process. This reduces paper breakage by 80% and allows you to run consistently at maximum speed.
- Uneven Rewind Tension: Inconsistent rewind tension causes “telescoping” rolls that are unstable during transport and will jam downstream equipment. Our closed-loop rewind tension system maintains uniform tension from the core to the outer layer of every roll, producing perfectly cylindrical rolls that meet the strictest customer specifications.
- High Labor Requirements: Older slitting machines require 2-3 operators to run continuously. Our fully automated system handles loading, slitting, rewinding and unloading with minimal operator intervention. A single operator can run two machines simultaneously, cutting your labor costs in half.
FAQ About YG Paper Roll Slitter
A: It can process almost all types of paper, including kraft paper, coated paper, corrugated paper, label stock, tissue paper, newsprint and cardboard. It handles thicknesses from 20g to 500g without any issues.
A: All our paper roll slitter machines achieve a slitting accuracy of ±0.2mm, ensuring every roll has a consistent width. This eliminates material waste and ensures your downstream production runs smoothly.
A: The price varies depending on the model, configuration and optional features you choose. Contact us directly with your specific production requirements, and we will provide you with a detailed, transparent quotation.
A: The YG-1300 measures 3300x3150x1930mm, the YG-1600 measures 3300x3450x1930mm, and the YG-1800 measures 3300x3650x1930mm. You will need additional space for raw material storage and finished goods handling.
A: With our quick-change blade system, you can adjust the slitting width and reconfigure the machine for a new order in less than 10 minutes. This makes it perfect for both small batch custom orders and large production runs.

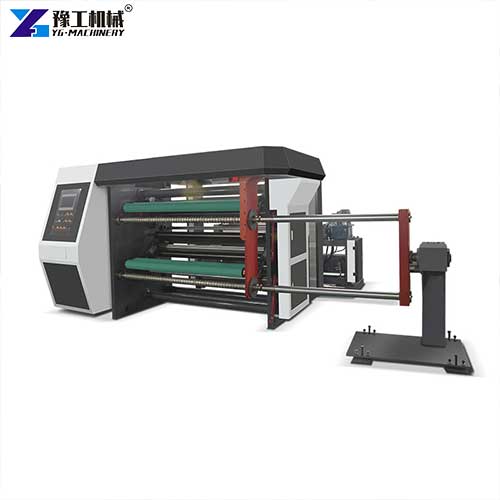

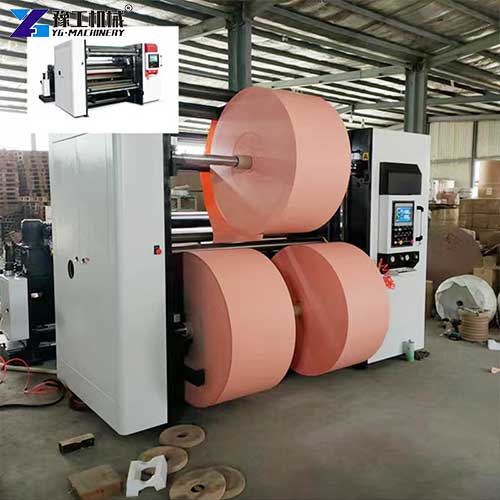

YG Slitting Machine Price– YG Machinery Factory Price
Investing in a high-quality paper slitting machine is one of the most impactful decisions you can make for your paper processing business. If you are looking for a reliable paper slitter rewinder machine that delivers consistent performance, high precision and low operating costs, YG has the perfect solution for you. The YG paper roll slitting rewinding machine is built to last and designed to maximize your production efficiency. Whether you are a small startup or a large manufacturing plant, we have a model that fits your needs and budget. Contact us today to get a competitive slitting machine price and discuss your specific requirements with our technical team.
