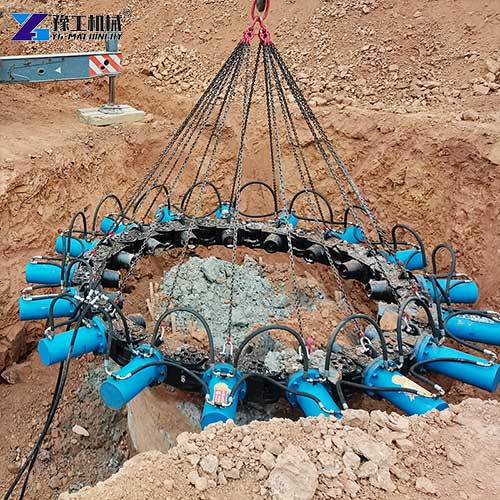

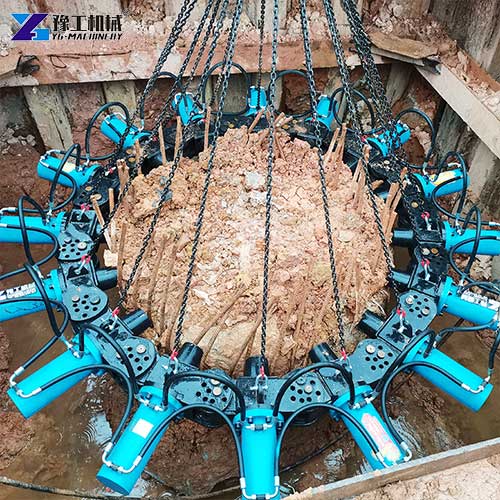

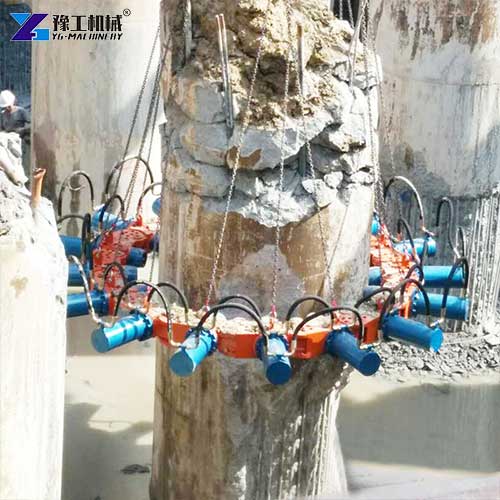

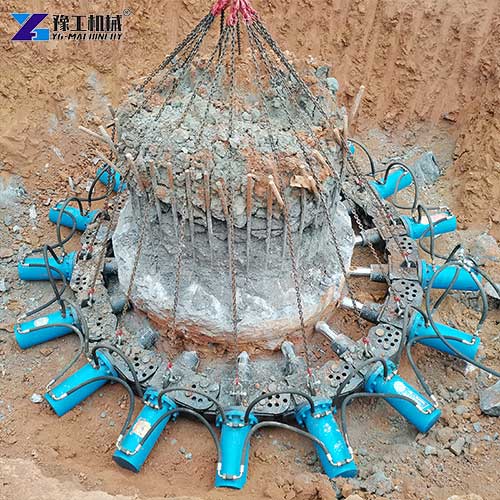

A concrete pile cutter is a professional hydraulic pile trimming equipment that removes excess concrete from pile heads. It works by using a power source to provide pressure to multiple oil cylinders, which directly drive the drill rods to squeeze the pile body at the same time until the pile head breaks off cleanly. Also called a pile head breaking machine, it adopts a highly modular combination design. Modules are connected by pin shafts, so you can adjust the number of modules to fit different pile diameters. It is widely used in high-speed railway bridges, industrial and civil construction, and other pile foundation projects. It has the advantages of simple operation, high efficiency, low noise and low cost, and is the mainstream equipment for modern pile head trimming construction.
In addition to concrete pile breakers, YG also sells a range of excavator attachments, including excavator demolition shears, excavator rock crusher buckets, excavator pile drivers, and excavator magnet attachments.
YG Concrete Pile Cutter Parameter:
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Single-module size | A combination of the total weight | ||||||||
What Power Sources Can You Use For A Concrete Pile Cutter?
Many first-time buyers think pile cutters can only be used with excavators, but that is not true. A high-quality concrete pile breaker supports multiple power source combinations, so you can choose the most suitable one according to your existing equipment and construction site conditions.
1. Excavator (most common): This is the most widely used power configuration. The excavator provides both power and lifting force at the same time. You only need to connect the equipment to the excavator’s hydraulic system and bucket rod, and you can start construction directly. It is suitable for most conventional foundation projects, and the operation is flexible and convenient.

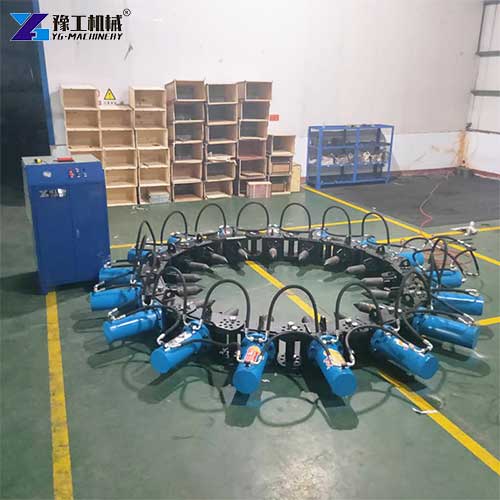

2. Hydraulic station + crane: If you don’t have an excavator on site, you can use an independent hydraulic station as the power source and use a crane to provide lifting force. This configuration is suitable for sites with cranes, but no excavators, and the construction effect is exactly the same as the excavator configuration.
3. Hydraulic station + loader: You can also use a loader to provide lifting force, paired with an independent hydraulic station as power. This configuration is suitable for sites with loaders but no excavators or cranes, which greatly improves the utilization rate of your existing equipment.
Why Choose YG Concrete Pile Cutter?
Our concrete pile cutter is designed with six core advantages according to actual construction needs, and all indicators meet the requirements of large-scale foundation construction:
1. Strong universality
The power source is diversified. You can match it with an excavator, hydraulic station + crane, or hydraulic station + loader according to site conditions. The connection method is flexible and free, and it can be directly connected with a variety of construction machinery. It also has a retractable sling design, which meets the construction requirements of complex terrain.
2. High construction safety
Workers do not need to touch the pile during construction. The equipment completes the trimming work through hydraulic drive, which avoids the safety risks of manual high-altitude work and pneumatic pick operation. It can adapt to the safety construction requirements of various complex terrain sites.
3. Good environmental protection performance
Full hydraulic drive realizes low-noise construction, which will not affect the surrounding environment during construction. The hydraulic radial extrusion construction method has no impact on the mother pile and equipment, and will not cause vibration damage to the lower pile body.
4. Low comprehensive use cost
The operating system is simple and easy to learn, and you only need fewer operators to complete the construction, which reduces labor costs. The round pile and square pile modules are universal, and you can realize circle/square pile switching by changing the module combination. One machine has multiple functions, which saves the cost of buying multiple pieces of equipment.
5. Convenient use and transportation
The concrete pile cutter has a small volume and light weight, so it is very convenient to transport. It adopts a simple module disassembly design. You can adjust the number of modules to adapt to different pile diameters, and the module group is easy and fast to disassemble and assemble.
6. Long service life
The whole machine is made of high-strength wear-resistant materials, with reliable quality and longer service life. The wearing parts are few and easy to replace, and the later maintenance cost is very low.

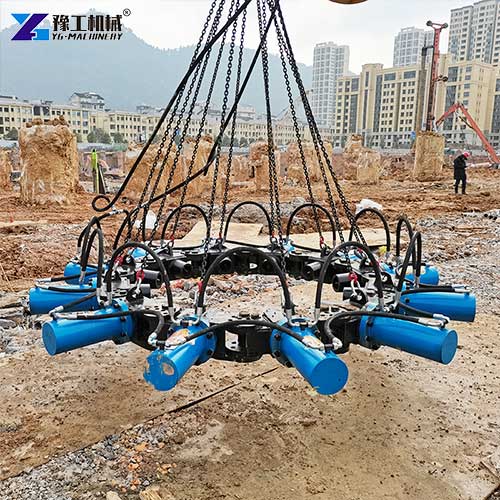

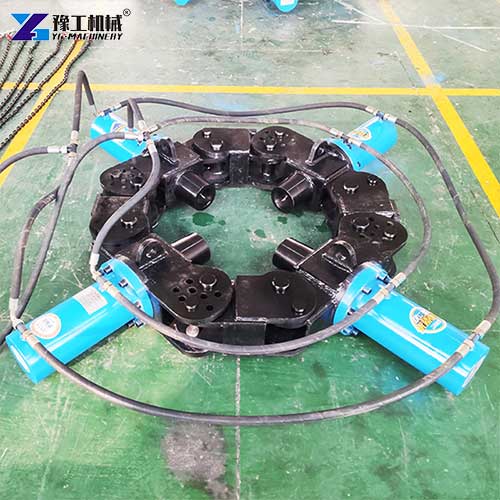

This concrete pile breaker can meet the construction requirements of various large-scale foundations. Round pile cutters are suitable for pile diameters of 250mm-2500mm, and square pile cutters are suitable for pile side lengths of 250-650mm.
How To Choose The Right Model For Your Projects
1. Confirm your pile parameters first
First, sort out the diameter range and shape of the piles you usually handle. If you mainly handle round piles, choose a round pile module configuration; if you need to handle both round and square piles, choose a configuration with square pile conversion modules. Round pile models fit 250-2500mm piles, and square pile models fit 250-650mm side length piles.
2. Match your existing power equipment
Confirm what power equipment you already have on site. If you have an excavator, choose the standard excavator configuration; if you only have a crane or loader, choose the configuration with an independent hydraulic station. This way, you don’t need to buy additional power equipment, which saves investment costs.
3. Choose according to your project scale
If you mainly take small and medium-sized projects, a standard configuration is enough to meet your needs. And if you often take on large-scale infrastructure projects, choose a heavy-duty configuration with more modules, which has higher construction efficiency and stronger durability.
If you take on a lot of projects with different pile sizes, a modular pile head breaking machine is more cost-effective. You can adjust the number of modules according to different pile sizes, which is suitable for more project scenarios.
Hydraulic Pile Breaker Price– YG Machinery
If you want to know the exact hydraulic pile breaker price for your project, you can contact us directly. You just need to tell us your pile parameters and existing power equipment, and we will provide you with a detailed quotation and configuration plan.
