A concrete pile cutting machine is a heavy-duty hydraulic attachment designed for clean, efficient truncation of excess concrete pile heads in foundation engineering. It is widely used in pile foundation construction to remove redundant pile sections after pouring, ensuring the quality of the pile foundation and greatly improving construction efficiency compared to manual breaking methods.
YG series pile breaking equipment offers multiple configurations, including round pile, square pile and claw-type models, to meet diverse construction needs. With a modular design, our machines can be freely assembled with 4 to 18 modules, adapting to a wide range of pile diameters from 400mm to 2500mm for different project scales.
Concrete Pile Cutting Machine Parameter:
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
5 Advantages of Concrete Pile Cutting Machine
- Modular Free Combination Design: The machine adopts a modular structure, with 4 to 18 modules freely assembled according to the pile diameter, perfectly adapting to round piles from 400mm to 2500mm. Custom square pile and claw-type models are also available to meet special construction needs.
- Low-Noise Environmentally Friendly Operation: The hydraulic drive system ensures smooth and stable operation, greatly reducing construction noise compared to traditional breaking methods. It is fully suitable for urban construction sites and areas with strict noise control requirements.
- Non-Damaging To Pile Reinforcement: The synchronous hydraulic drive applies uniform shear force to the pile cross-section, cutting the concrete cleanly without damaging the internal steel bars of the pile, eliminating the need for secondary treatment of the reinforcement.
- Strong Equipment Compatibility: The YG hydraulic pile cutter is compatible with hydraulic excavators of 20 tons and above, and can also be matched with an independent hydraulic pump station, providing flexible use options for different site conditions without complex modification.
- Heavy-Duty Durable Structure: Core components are made of high-hardness wear-resistant materials, with a maximum cylinder pressure of 300MPa and a maximum thrust of 300KN, ensuring stable performance under long-term continuous heavy-load construction.
Concrete Pile Cutting Machine Operating Guide
1. Pre-Construction Preparation
Select the corresponding number of modules according to the diameter of the pile to be cut, assemble the main body of the pile breaker, and connect it to the hydraulic system of the excavator or the independent hydraulic pump station.
2. Positioning And Installation
Lift the assembled pile breaker, fit it over the concrete pile head, adjust it to the preset cutting elevation, and fix it in place with the positioning pins.

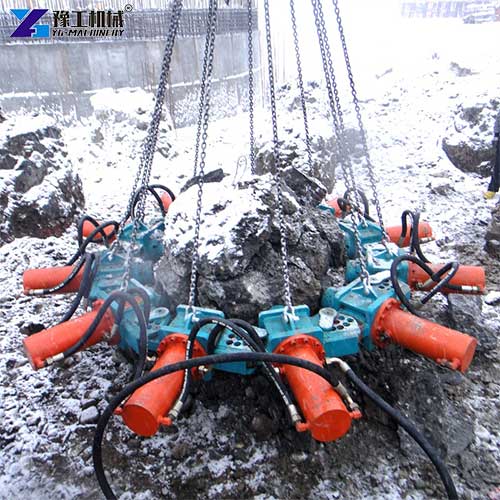

3. Hydraulic Cutting Operation
Operate the hydraulic system to control all cylinders to push the chisels forward synchronously, applying continuous uniform pressure to the pile until the concrete pile breaks neatly at the preset position.
4. Post-Operation Finishing
Retract the cylinder chisels, lift the pile breaker and the cut pile head to the designated placement area, complete the single pile cutting operation, and prepare for the next pile treatment.
Case Study: Hydraulic Pile Cutter Solution For Singapore Urban Residential Project
Client Background： A local mid-scale civil construction contractor in Singapore, responsible for the foundation works of a high-rise residential project in the central urban area, with 220 concrete piles requiring standardized truncation.
Client Requirements： The client was subject to strict noise control regulations for urban construction and needed a low-noise alternative to traditional pneumatic breaking; their project involved round piles with diameters ranging from 600mm to 1800mm, requiring flexible equipment adaptability, zero damage to the internal steel reinforcement of piles to avoid secondary rebar treatment, and improved pile processing efficiency to meet a tight construction timeline.
YG’s Solution： We recommended our modular hydraulic pile breaker machine, with a configurable 8-15 module combination to fully cover the project’s 600-1800mm pile diameter range. The equipment is fully compatible with the client’s existing 30T hydraulic excavator, and its low-noise hydraulic drive design fully complies with Singapore’s urban construction noise limits.
Client Feedback： The client confirmed that the hydraulic pile breaker machine cut single pile processing time compared with traditional methods, with operating noise well below the local regulatory limit. It completed all pile cutting works without any damage to the internal steel bars, helping the project meet its tight construction schedule.

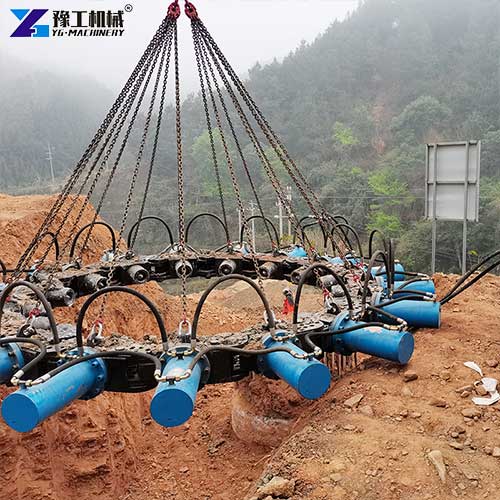

Hydraulic Pile Breaker Price–YG Machinery
YG concrete pile cutting machine delivers efficient, low-noise pile cutting performance for various foundation construction projects, with flexible configurations to fit different pile sizes and site needs. If you want to learn more about hydraulic pile breaker price or get a custom solution for your project, contact our team today.
