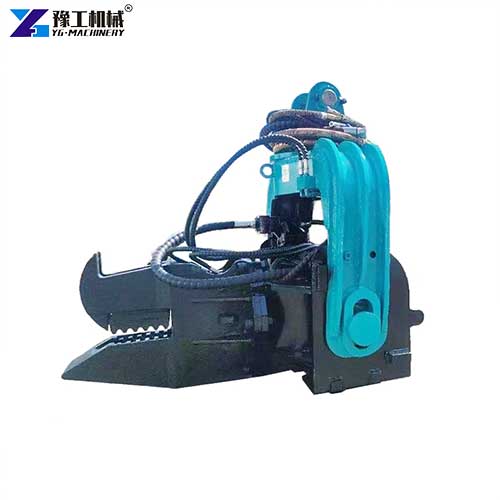

An excavator-mounted pile driver is a hydraulic-driven pile hammer attachment fixed onto standard excavator arms, engineered to drive steel sheet piles, timber piles and small concrete piles for foundation, waterfront and road construction projects. Instead of deploying standalone pile-driving equipment, contractors reuse existing excavator fleets to finish piling tasks, cutting extra equipment transportation and rental spending on site. This excavator-mounted pile driver adapts to varied soil conditions from loose sand to dense clay and completes accurate vertical piling without extra auxiliary brackets.

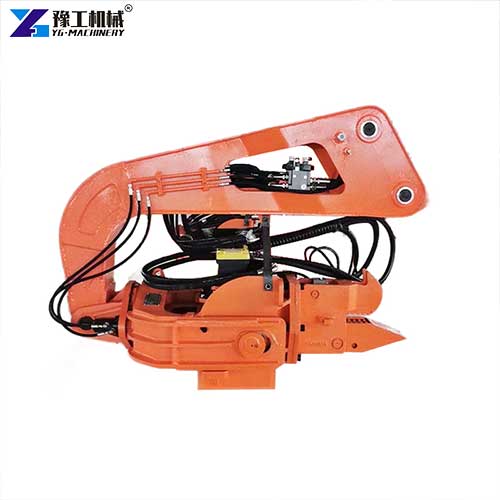

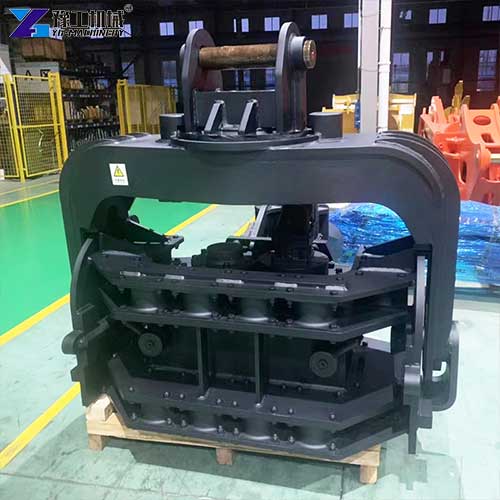

YG builds five standardized variants marked YG150D, YG250D, YG350D, YG400D and YG450D, each calibrated to match excavators ranging from 8 tons up to 55 tons. The lineup covers excitation force from 24t to 81t to fit light residential foundation all the way to heavy waterfront sheet piling jobs. Many small contractors pick a pile driver for mini excavator to expand their service scope into small-scale foundation contracting. Another widely selected option is an excavator sheet pile driver specially optimized for continuous steel sheet pile embedding along riverbanks and trench borders.
Excavator-Mounted Pile Driver Parameter:
| Model | YG150D | YG250D | YG350D | YG400D | YG450D |
| Eccentric moment(kg*m) | 3.2 | 5.1/5.7 | 7.1 | 9.2 | 11 |
| Speed(rpm) | 2600 | 2600 | 2600 | 2600 | 2600 |
| Excitation force(t) | 24 | 38/42 | 52 | 68 | 81 |
| Operating pressure of oil system(bar) | 200 | 300 | 320 | 330 | 330 |
| Flow demand for hydraulic oil system(lpm) | 100 | 163 | 220 | 260 | 300 |
| Weight(t) | 1.2 | 1.6 | 2.4 | 2.5 | 2.6 |
| Excavator(t) | 8-12 | 20-25 | 25-35 | 35-45 | 40-55 |
Features of YG Excavator-Mounted Pile Driver
- Self-lubricated cooling gearbox: Independent lubrication and heat dissipation channels maintain precise gear concentricity for stable long-hour operation. Internal hidden gear design prevents collision and dirt damage, and individual gear replacement cuts repair costs by 60%.
- Reinforced detachable components: Load-bearing lifting lugs and rotating shafts have built-in oil grooves for extended lifespan. Detachable structure allows on-site part replacement without full disassembly, reducing downtime from days to hours.
- High-strength interchangeable clamps: Integrated cast steel jaws with hydraulic pressure locking hold piles firmly for safe operation. Optional dedicated cement pile clamps significantly improve concrete piling efficiency.
- Stable optimized hydraulic system: New plug-and-play control system features easy installation and reliable operation. All excavator sheet pile drivers run at a fixed 2600 rpm for consistent vibration, with tiered excitation force and matched hydraulic parameters to avoid damaging your excavator.
Application of Excavator-Mounted Pile Driver
- Building Construction: Used for foundation piling operations in residential buildings, office buildings and small-to-medium factories, driving precast concrete piles, timber piles and small steel pipe piles to provide stable building foundations. It is especially suitable for construction projects in dense urban areas with limited site space.
- Road Engineering: Applied to subgrade reinforcement piling for highways, rural roads and municipal roads, as well as installation of guardrail piles, traffic sign piles and street light foundations on both sides of roads. It improves subgrade stability and construction efficiency, adapting to all types of road construction and renovation scenarios.
- Bridge Engineering: Undertakes foundation piling tasks for small bridges, pedestrian overpasses and culverts, driving steel pipe piles and precast concrete piles to ensure bridge structural stability. When used with a hydraulic pile breaker, it can also complete pile head cutting operations synchronously for one-stop construction.
- Foundation Reinforcement Engineering: Targets foundation reinforcement projects for old buildings, factories and dangerous houses. It improves foundation bearing capacity by driving reinforcement piles, effectively preventing building settlement and tilting, making it ideal for small-to-medium existing building renovation and reinforcement.
- Water Conservancy Engineering: Used for protective piling works in reservoirs, rivers and dams, driving protection piles and anti-seepage piles to prevent soil erosion and bank collapse. It is particularly suitable for rapid construction needs of outdoor water conservancy projects and flood control emergency operations.
Common Installation & Operation Mistakes To Avoid
Even a high-quality pile driver for mini excavator fails prematurely due to improper handling. These are the most frequent mistakes that cause downtime and extra repair costs:
- Incorrect hydraulic connection or pressure mismatch: Many operators connect hoses randomly without checking model-specific pressure requirements. Always verify that your excavator’s hydraulic output matches the hammer’s rated working pressure (200bar for YG150D, 330bar for YG450D) to prevent pump damage.
- Ignoring boom load balance: Front-end overload causes excavator instability, especially for small machines. Always check your excavator’s maximum lifting capacity at the required working radius and add counterweights if necessary.
- Skipping pre-operation alignment: Unaligned piles lead to structural defects and rework. Use a spirit level to calibrate the hammer’s vertical position before starting each pile, and check alignment every 1-2 meters during driving.
- Continuous operation without breaks: Overheating is the top cause of hydraulic system failure. Stop for 15 minutes every 2 working hours to let the system cool down, and check oil temperature regularly.

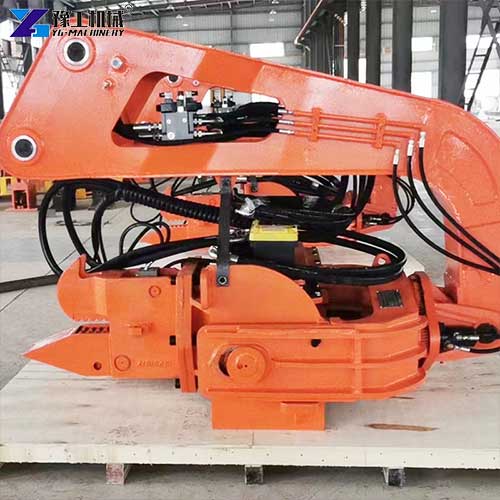

YG Excavator Pile Driver For Sale
A durable excavator-mounted pile driver is a practical asset to expand your construction business’s working scope and control overall operating costs. Our team offers targeted model matching and detailed technical support to ensure seamless integration with your existing equipment. If you are looking for a reliable excavator pile driver for sale, contact us today for a customized quotation tailored to your project requirements.
