Concrete has a short working life. Once mixed, the clock starts ticking. Transporting ready-mix from a batching plant to a job site means watching the clock, paying for waiting time, and hoping the truck arrives before the mix begins to set. A self-loading concrete mixer machine eliminates this problem entirely. This equipment loads its own raw materials, mixes concrete on board, and transports it directly to the pour point. The operator controls the entire process from loading to discharge.
The YG series self-loading concrete mixer truck offers four models covering output from 1.6m³ to 4.0m³ per batch. Production capacity ranges from 8m³/h to 18m³/h. Every model features Yuchai engines, four-wheel drive, and a rugged design built for demanding construction sites.
Self-Loading Concrete Mixer Machine Parameter
| Model | YG1.8 | YG2.6 C | YG3.5 C | YG4.0 C |
| Output per Lot | 1.6 m³ | 2.6 m³ | 3.5 m³ | 4.0 m³ |
| Production Capacity | 8 m³/h | 11 m³/h | 15.5 m³/h | 18 m³/h |
| Engine Power | 78 KW | 78 KW | 85 KW | 91 KW |
| Climbing Capacity | 30° | 30° | 40° | 40° |
| Weight | 6300KG | 7000KG | 8250KG | 9000KG |
| Length/width/height | 6700*2340*2700mm | 6650*2700*3200mm | 7300*2750*3350mm | 7700*2950*3400mm |
| Wheelbase | 2500mm | 2770mm | 2750mm | 2950mm |
Applications of Self-Loading Concrete Mixer Machine
This all-in-one mixing vehicle targets construction environments lacking centralized concrete supply stations, covering four core high-demand construction sectors:
- Rural residential construction and village infrastructure renovation: Small batch concrete production for house foundation, courtyard pavement and village road hardening work; compact body size easily navigates narrow rural farm roads with limited width.
- Mountain road, tunnel and water conservancy projects: Strong climbing performance up to 40° allows the vehicle to access high-slope mountain construction zones; independent feeding and mixing solves concrete supply shortages in remote wild areas far from cities.
- Mine slope stabilization and small industrial plant construction: Real-time fresh concrete mixing avoids concrete solidification during long-distance transport; adjustable drum mixing speed guarantees uniform concrete quality for slope reinforcement and factory foundation pouring.
- Emergency repair and municipal maintenance jobs: Fast mobilization and independent operation support quick concrete pouring for road crack repair, pipeline foundation and temporary building construction without pre-arranged batching plant scheduling.
What a Self-Loading Concrete Mixer Machine Does?

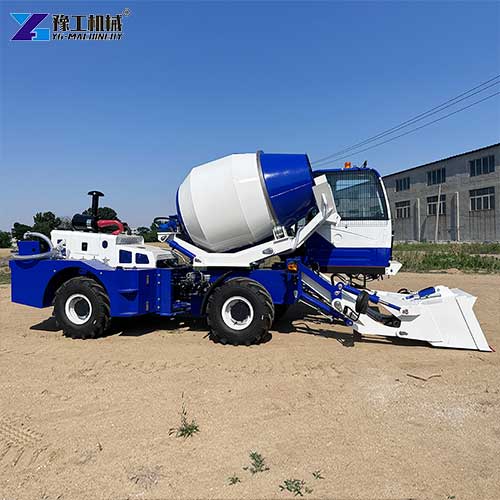

A self-loading concrete mixer truck combines three functions in one unit: it loads raw materials, mixes concrete, and transports the finished product to the pour point. The machine carries its own loading bucket at the front. The operator fills the bucket with sand, stone, and cement directly from stockpiles on site. The bucket lifts and discharges these materials into the mixing drum. Water from the onboard tank mixes with the dry materials as the drum rotates. The drum continues mixing while the truck travels to the pour point. By the time the operator arrives at the pour location, the concrete is ready to discharge. This means the operator can produce fresh concrete exactly when and where it is needed, without relying on an external batching plant.
The YG series integrates loading, metering, mixing, transport, and discharge into a single automated workflow. One operator handles the entire process, eliminating the need for separate loading equipment and multiple crew members.
Daily Maintenance Schedule To Extend Engine And Hydraulic Service Life
Structured regular maintenance cycles reduce unexpected breakdowns and maximize the full service life of the self-loading concrete mixer machine under all-terrain continuous construction work:
- Daily post-shift maintenance: Activate the built-in water tank cleaning system to fully wash the mixing drum, loading bucket and hydraulic rod surfaces; remove residual concrete aggregate to prevent hard solidification and component abrasion.
- Weekly inspection cycle: Check Yuchai engine oil level, filter cleanliness and hydraulic oil volume; inspect all imported hydraulic valve joints and pipeline seals for oil leakage, replenish lubricating grease for drum rotating bearings.
- Bi-weekly deep inspection: Calibrate two-way driving control system and reversing camera visual clarity, test maximum climbing power under full load to confirm engine power output remains stable.
- Monthly comprehensive overhaul: Replace aging hydraulic filters and worn sealing gaskets, clean engine air filter to avoid dust intake damage during dusty mountain construction work.
5 FAQs About Self-Loading Concrete Mixer Machine
A: It works for rural housing renovation, mountain tunnel construction, water conservancy projects and mine slope reinforcement. It is ideal for sites without fixed concrete batching plants and narrow, steep terrain that large mixer trucks cannot reach.
A: YG1.8 and YG2.6 C support 30° slopes for flat rural roads; YG3.5 C and YG4.0 C upgrade to 40° climbing performance, designed for steep mountain roads, mine access paths and high-slope tunnel construction zones.
A: Two-way forward and reverse travel eliminates U-turns on narrow roads, improving mobility and safety in tight construction spaces such as indoor renovation sites and narrow village alleys.
A: Imported hydraulic and transmission components cut oil leakage and mechanical failure rates, lowering long-term maintenance expenses and extending the whole vehicle’s service life under heavy daily continuous work.

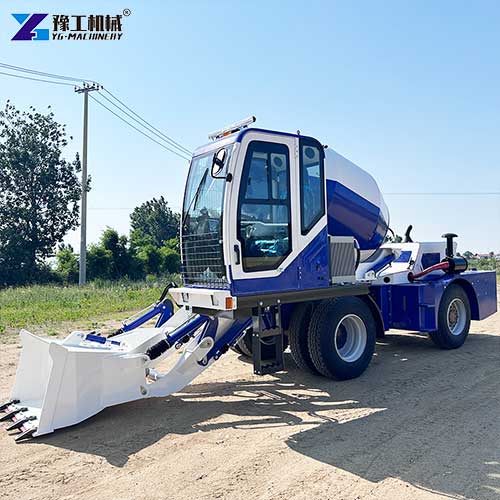

A: Our units can be matched with supporting pump accessories to form a self-loading concrete mixer with a pump-integrated system for high-rise concrete pouring and long-distance horizontal concrete delivery work.
Self Loading Concrete Mixer For Sale
YG provides the full four-model lineup of self-loading concrete mixer machine equipped with a reliable Yuchai engine, a two-way driving system, full reversing camera and imported hydraulic spare parts, covering 1.6 to 4.0 cubic meter single batch output for rural construction, mountain tunnel, water conservancy, and mine slope reinforcement projects. Our technical team offers targeted model selection guidance based on your daily concrete output, construction terrain gradient and site road width limitations. Contact us with your project requirements—typical concrete volume, site access, and grade conditions. We will recommend the right self-loading concrete mixer for sale for your operation. Get a free quote today.
