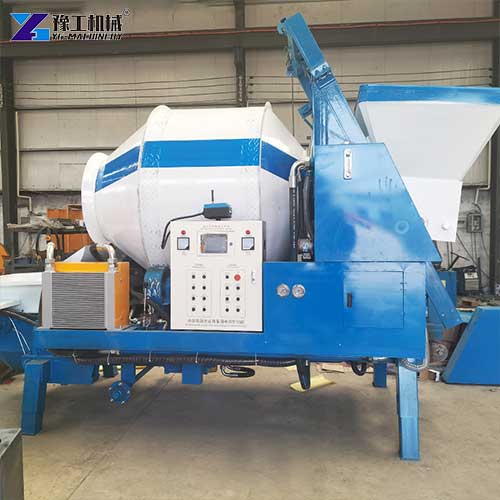

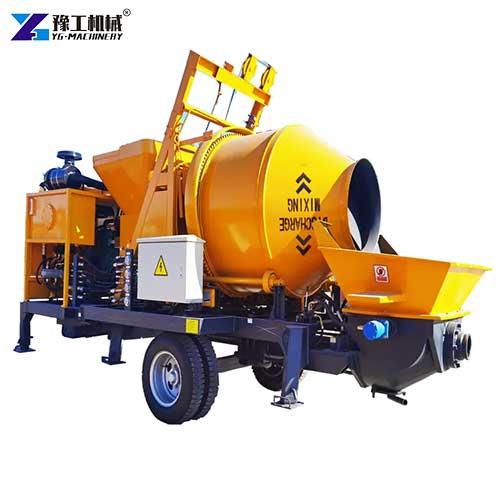

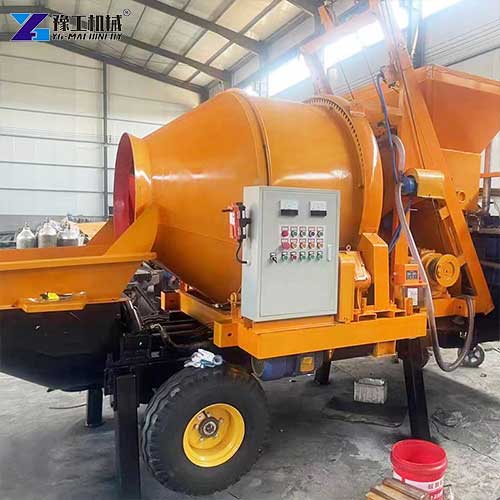

A concrete mixer and pump is a 2-in-1 construction equipment that integrates concrete mixing and pumping functions into one machine. It replaces the traditional combination of separate concrete mixers and concrete delivery pumps, greatly reducing equipment investment and occupation space. This concrete mixer and pumping machine is especially suitable for small and medium construction projects such as rural self-built houses, small factory buildings, municipal road repairs, and foundation works. It can complete concrete mixing and high-lift pumping at the same time, eliminating the need for intermediate transfer links and greatly improving construction efficiency. For small construction teams, it is a very cost-effective equipment investment that can quickly recover costs.
Concrete Mixer And Pump Parameter
| Model | YG-350 | YG-550 |
| Theoretical delivery volume | 20-30M3/h | 40M3/h |
| Bone particle diameter | 0.5-40mm | 20-40mm |
| Greatest pressure | 20mpa | 20mpa |
| Bore*Stroke | 180*1000mm | 200*1110mm |
| Motor Power | 45kw | 55kw |
| Oil pump power | 100(column)L/S | 140(column)L/S |
| Delivery pipe | 125mm | 125mm |
| Genset power | 150kw | 150kw |
| Machine size | 6100*2000*2700mm | 6200*2000*2700mm |
| Weight | 5500kg | 6500kg |

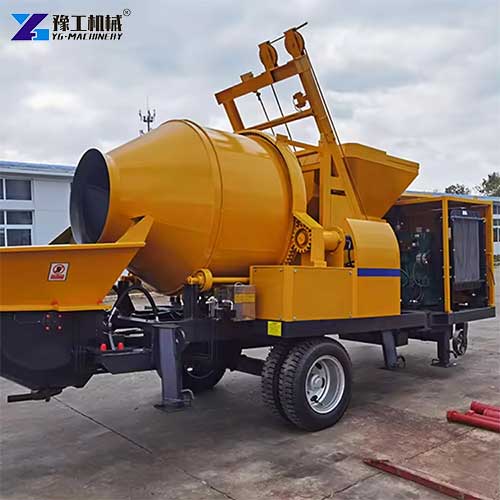

small concrete mixer pump for sale
Why the 2-In-1 Mixer Pump Is More Cost-Effective Than Separate Machines?
Many construction teams will hesitate between buying a 2-in-1 mixer pump and buying separate mixer and pump equipment. In fact, for most small and medium construction teams, a single concrete mixer and pump is far more cost-effective than buying two separate machines, mainly for these reasons:
1. Lower initial investment
Buying a separate concrete mixer and a separate concrete pump requires paying for two sets of equipment, and the total cost is usually 1.5-2 times that of a 2-in-1 mixer pump. The 2-in-1 design shares the power system and control system, which greatly reduces the manufacturing cost, and the purchase price is much lower than the sum of two separate machines.
2. Lower use and maintenance cost
Two separate machines require two sets of operating personnel and two sets of maintenance plans, and the labor cost and maintenance cost are both high. The 2-in-1 mixer pump only needs 2-3 operators, and only one set of equipment needs to be maintained daily, which can save more than 40% of labor and maintenance costs every year.
3. Smaller footprint and better mobility
Two separate machines take up a lot of space on the construction site, and it is very troublesome to transport and move between different sites. The 2-in-1 design integrates all functions on one chassis, which takes up less than half of the space of two separate machines, and is more convenient to transport and move.
4. Higher work efficiency
When using separate machines, you need to mix the concrete first, then transfer it to the pump hopper, which has intermediate links and low efficiency. The 2-in-1 mixer pump directly sends the mixed concrete into the pumping system, with no intermediate transfer, and the overall work efficiency is 20-30% higher than using separate machines.
Concrete Mixer And Pump VS Traditional Ready-Mix Concrete Supply
Cost difference for small-volume projects
Traditional ready-mix concrete usually has a minimum order requirement of 5-10 cubic meters, and there will be additional delivery fees for long distances. For small projects with only 2-3 cubic meters of concrete demand, the unit price of ready-mix concrete will be 30-50% higher than the normal price, and there will often be remaining material waste.
A concrete mixer and pumping machine can produce concrete on site according to the actual demand. You can mix as much as you need, with no minimum order quantity and no additional delivery fees. For small-volume projects, the total cost can be reduced by 40-60% compared with buying ready-mix concrete.
Construction flexibility difference
Ready-mix concrete needs to be booked in advance, and the delivery time is limited by the schedule of the commercial concrete station. If there is a construction delay or temporary demand adjustment, it can easily affect the project’s progress. In addition, concrete will start to solidify within 1-2 hours after leaving the station, so it cannot be transported over long distances or stored for a long time.
The on-site mixing mode can be adjusted at any time according to the construction progress. You can start or stop production at any time, without booking in advance or waiting for delivery. It is very flexible and can fully match the construction rhythm of small projects.
Applicable scenario difference
Ready-mix concrete can only be used in areas with commercial concrete stations nearby and accessible to tank trucks. For remote rural areas, mountain projects and small sites that tank trucks cannot enter, ready-mix concrete cannot be supplied at all.

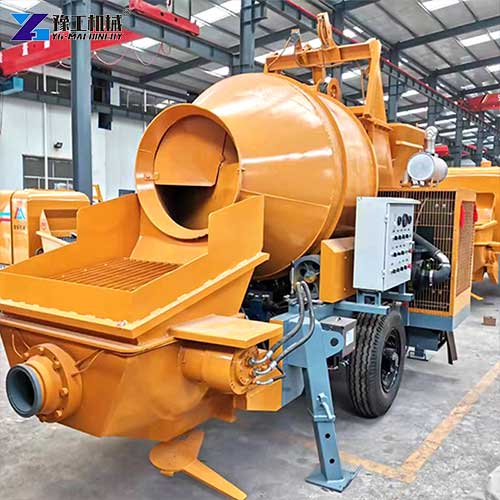

The trailer concrete mixer with pump is small in size and flexible in movement. It can be towed to remote construction sites and narrow sites that tank trucks cannot enter, and produce concrete on site. It completely solves the problem that ready-mix concrete cannot be delivered in remote areas.
Material waste difference
When using ready-mix concrete, it is often impossible to accurately estimate the usage, resulting in more or less material. If you order less, you need to wait for a second delivery, which delays the construction period; if you order more, the excess concrete will be wasted directly.
On-site mixing can accurately control the output according to the actual usage. You can mix a small amount multiple times, and there will be almost no material waste, which further reduces the construction cost.
5 FAQ About YG Concrete Mixer And Pump
A: The maximum vertical delivery height is about 30 meters, and the horizontal delivery distance is about 80 meters, which can meet the needs of most small and medium construction projects, such as 3-6 story self-built houses and small factory buildings.
A: Only 2-3 workers are needed. One worker is responsible for feeding raw materials, one is responsible for operating the pumping system, and one is responsible for the discharge end. No professional technicians are required.
A: Yes, this small concrete mixer pump is very suitable for rural self-built houses, small factory buildings, municipal road repairs and other small projects. It is flexible to move and has high cost performance.
A: It is suitable for concrete with aggregate particle size below 2cm, including fine stone concrete and ordinary aggregate concrete, which can meet the needs of most conventional construction.
A: Yes, the trailer concrete mixer with pump adopts a trailer-type design, which can be towed by ordinary cars or pickup trucks. It is small in size and flexible in movement, and can quickly enter narrow rural roads and small construction sites.
