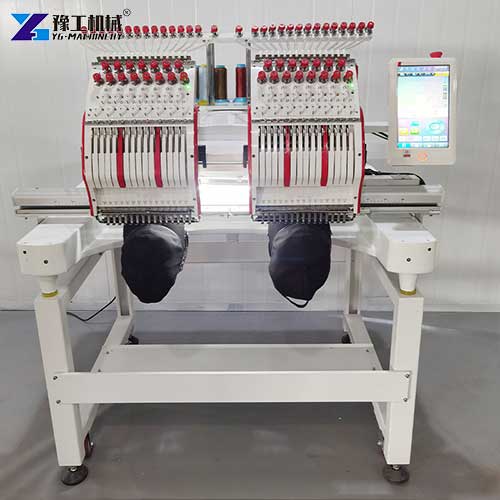

A 2-head embroidery machine is a compact dual-station industrial embroidery unit built to produce uniform custom stitched patterns across garments, caps, tote bags and flat textile materials. Fitted with the reliable Dahao A15 control system and a high-resolution 1280×800 color touch LCD screen, this twin-head model hits a maximum adjustable speed of 1000 RPM to speed up small-batch order fulfillment without sacrificing stitch precision. Startup apparel businesses and local custom print shops frequently search for competitive double-head embroidery machine price options to expand their product lines affordably. Hobby-to-commercial creators prioritize a fully programmable embroidery machine to store hundreds of unique patterns for repeated customer orders. Custom uniform manufacturers rely on an advanced embroidery machine to handle mixed cap and tee embroidery jobs in a single workflow.
2 Head Embroidery Machine Parameters:
| Parameter | YS-1201CT (Single Head) | YS-1202CT (Two Heads) | YS-1203 (Three Heads) |
| Heads | 1 | 2 | 3 |
| Needles | 9 / 12 / 15 optional | 12 | 12 (9/15 optional) |
| Working Area | 360 × 510 mm | 400 × 500 mm | 400 × 450 mm |
| Max Speed | 1,000 RPM (adjustable) | 1,000 RPM (adjustable) | Flat: 1,000 RPM; caps/garments: 800 RPM |
| Control System | Dahao A15 | Dahao A15 | Dahao A15 |
| Display | Colour LCD touch, 1280×800 | Colour LCD touch, 1280×800 | 10 inch true colour touch LCD |
| Package Size (L×W×H) | 92×88×85 cm (wooden) | 1.37×1.12×0.92 m (wooden) | 2.07×1.12×1.01 m (wooden, ~2.3 CBM) |
| Gross Weight | 210 kg | 420 kg | 650 kg |
| Voltage | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110 220V |
| Spindle Motor | — | — | Servo motor |
| Rotary Hook | Standard | Standard | High quality hook |
6 Advantages of The YG 2 Head Embroidery Machine
Every built-in feature is engineered to cut operational downtime, expand creative capacity and lower on-site learning curves for new embroidery staff:
- Dual independent embroidery heads: Two synchronized 12-needle stations double daily output compared to single-head models, ideal for shops with steady medium-volume order flow.
- Dahao A15 intelligent control system: Industry-standard software with 18 built-in operation functions, from automatic color change and thread break detection to pre-sew pattern trace preview.
- Multi-language touchscreen interface: 19 global language options cover major export markets, removing language barriers for overseas operators and migrant workshop staff.
- Massive pattern storage capacity: Holds up to 500 unique patterns, with support for 5 million stitches per single design and a total 200 million stitch memory bank.
- Flexible material compatibility: Equipped with a standard 270-degree cap embroidery frame, plus flat fabric framing for shirts, jeans and thick textile materials. Custom machine paint colors are available on request to match workshop decor.
- User-friendly USB pattern import: Upload custom digitized embroidery files directly via USB flash drive, with real-time stitch preview to fix design errors before sewing starts.
Step-by-Step Pattern Upload & Preview Workflow For New Operators
Many first-time advanced embroidery machine users struggle with digital pattern setup; this simple step-by-step workflow for the 2-head embroidery machine cuts setup time drastically:
- Digitize your custom embroidery artwork on design software and save the finished pattern file onto a USB flash drive.
- Plug the USB storage device into the machine’s built-in USB port, then open the pattern library menu on the color touch LCD screen.
- Select your target design file and activate the pre-sew trace preview function to view the full stitch trajectory on the display before threading fabric.
- Adjust stitch speed (350 up to 1000 RPM) and automatic color change sequence to match your thread color layout.
- Secure your cap or flat fabric onto the matching embroidery frame, use the origin setting tool to align the pattern perfectly on the textile surface.
- Activate thread break detection, then hit the start button; the screen will show real-time stitch running progress throughout the embroidery process.
- After finishing a run, use the fast jog and slow jog frame controls to reposition the textile for additional patterns without unmounting the fabric.
Flat Embroidery, Cap Embroidery, and Finished Garments
The YG 2 head embroidery machine handles three main embroidery categories.

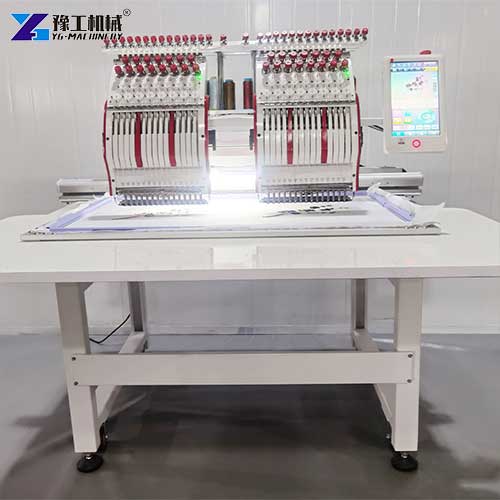

Flat embroidery covers shirts, jackets, uniforms, and home textiles like pillowcases and tablecloths. The 400×500mm working area accommodates most flat items, and the 12 needles handle multi-color designs on stable fabrics.

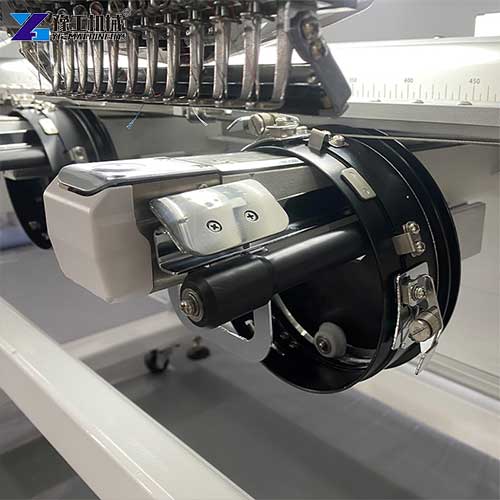

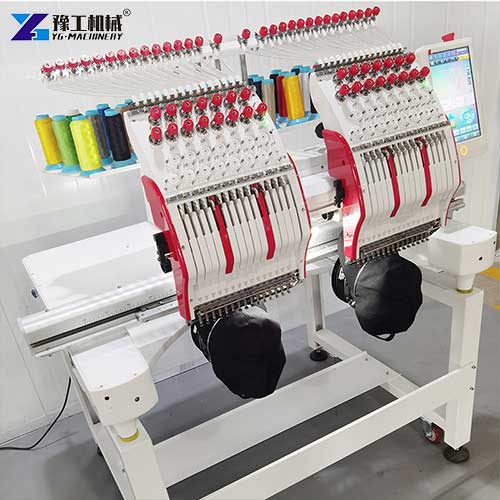

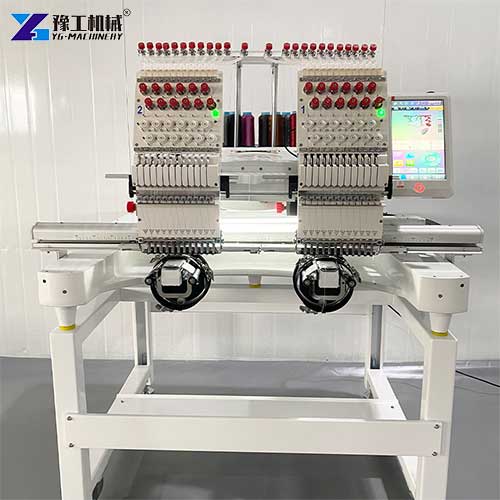

Cap embroidery uses a 270-degree wide cap frame that holds the curved cap surface flat against the embroidery area.
The machine stitches logos and designs on caps without distortion, making it suitable for promotional product companies and sports teams.

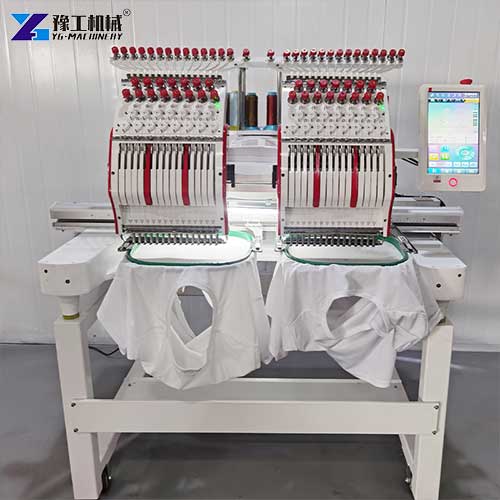

Finished garment embroidery includes items that are already assembled—polo shirts, sweaters, hoodies, and bags.
The operator frames the finished garment carefully to avoid stitching through multiple layers, and the machine embroiders the design directly onto the finished product.
Double Head Embroidery Machine Price
The YG YS-1202CT 2-head embroidery machine delivers commercial-grade performance for growing embroidery businesses. Two heads run simultaneously with 12 needles each and a 400×500mm working area per head. The 1000 RPM speed and Dahao A15 control system handle high-volume production with minimal operator intervention. The machine supports flat embroidery, cap embroidery, and finished garment embroidery across shirts, jackets, uniforms, caps, bags, and home textiles.
Automatic color change, thread break detection, and USB design import reduce manual work and improve consistency. For businesses considering a double-head embroidery machine price that reflects commercial capability without the complexity of larger multi-head systems, the YG YS-1202CT offers a practical, scalable solution.
Contact us with your production requirements—typical designs, garment types, and daily volume. We will recommend the right configuration for your operation. Request a free programmable embroidery machine quote today.
