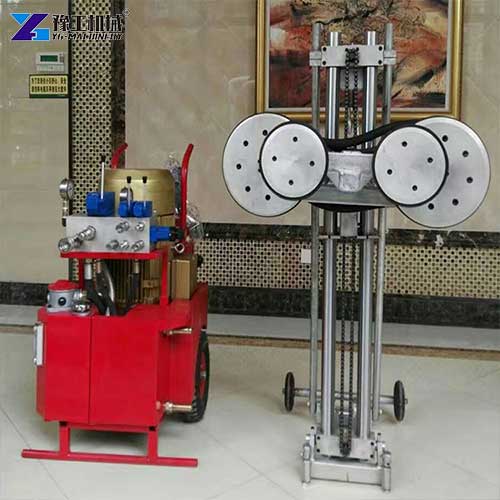

Many people working in construction and demolition have not used or even heard of wire saw cutting equipment before, but it is one of the most efficient tools for heavy concrete and reinforced concrete cutting work. A diamond wire saw cutting machine uses a loop of diamond-impregnated wire to cut through hard materials. The hydraulic pump station drives the hydraulic motor to rotate the driving wheel, which pulls the diamond wire to spin at high speed. The wire wears away the material as it spins, creating a clean, precise cut.
Also known as a concrete wire saw machine, it performs static cutting that produces almost no vibration, so it will not damage the surrounding original structure. It can cut through very thick concrete, irregular shapes and even underwater concrete structures, which traditional cutting tools cannot handle. YG provides both hydraulic and electric models of this equipment to fit different project needs, plus a full set of standard accessories, including the pump station, saw frame, hydraulic clamp and tool kit.
Diamond Wire Saw Cutting Machine Parameter
| Wire Saw Wheel | Parameters | Hydraulic Pump Station | Parameters |
| Wire Drive Mode | hydraulic | Rated Output Power | 22/25KW |
| Model Type | HM-40/80 | Working Voltage | 380v 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Station | Gear pump |
| Output Shaft Speed | 350/940/1300r/min | Motor Working Floe | 40-100L/min |
| Maximum Wire Length | 18m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Volume | 16L |
| Wire Saw Wheel | 64kg | Weight | 98kg |
| Motor Weight | 13kg | Dimension(mm) | 650*550*1150 |
| Cutting Type | Transverse and longitudinal cutting | ||
Applications of the Diamond Wire Saw Cutting Machine
This hydraulic wire saw cutting machine is widely used in large and heavy concrete cutting projects that traditional tools cannot handle:

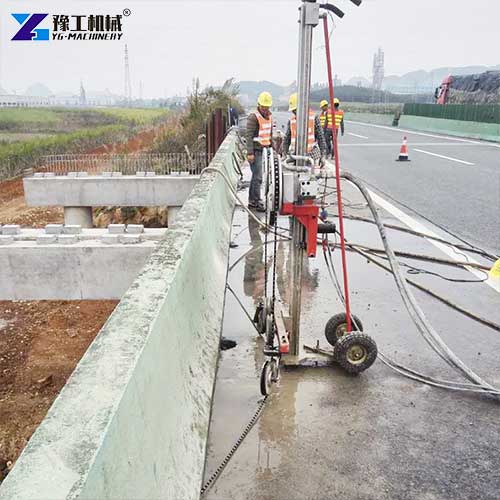

- Bridge & pier demolition and renovation: It is the preferred tool for cutting bridge decks, bridge piers and abutments. The static cutting process does not damage the main structure of the bridge, which is very important for renovation and partial demolition projects.
- Wharf & underwater concrete work: It can work underwater directly, so it is commonly used for cutting wharf platforms, underwater concrete piles and port facility renovation projects. No additional waterproofing is needed for the cutting head.
- Building structural demolition: For thick concrete walls, columns and foundations of large buildings, wire saw cutting is the most efficient method. It can cut through concrete of any thickness, no matter how large the structure is.
- Special shape cutting projects: It can cut irregular shapes, curved surfaces and angled surfaces with high precision. It is suitable for special renovation projects that require custom cutting shapes and sizes.
Why Wire Saw Cutting Is The Best Option For Reinforced Concrete Demolition
For reinforced concrete demolition projects, traditional methods like jackhammers, saw blades and crushing equipment have many limitations. A diamond wire saw for concrete solves almost all these pain points, and it has become the preferred choice for professional demolition teams for four key reasons:
1. Static cutting causes no damage to the original structure
Traditional crushing and jackhammer methods produce strong vibration, which can cause cracks in the remaining structure and affect structural safety. This is a big problem for partial demolition and renovation projects where you need to keep part of the structure intact.
Wire saw cutting is a fully static process. It produces almost no vibration during cutting, so it will not cause any damage to the surrounding concrete structure. The cut surface is smooth and flat, no secondary repair is needed.
2. It can cut concrete of any thickness
Circular saw blades can only cut concrete up to a certain thickness, usually no more than 50cm. For thicker concrete, like bridge piers and large foundations, traditional blades simply cannot work. A concrete wire saw machine has no thickness limit. You only need to wrap the wire around the concrete structure, and it can cut through materials of any thickness, no matter how large the cross-section is.
3. It works on irregular shapes and underwater structures
Most cutting tools only work on flat, regular surfaces. They cannot cut curved structures, irregular shapes or underwater concrete. The diamond wire saw cutting machine works on any shape of concrete structure, including curved surfaces, corners and irregular columns. It also works fully underwater, so it is the only practical option for underwater concrete pile cutting and port renovation projects.
4. Low noise and less dust, more environmentally friendly
Traditional breaking and cutting methods produce a lot of noise and dust, which causes pollution and affects surrounding residents and workers. The diamond wire saw cutting machine runs much quieter than crushing equipment, and the water cooling system controls dust effectively. It meets environmental protection requirements for urban construction projects.
Hydraulic VS Electric Wire Saw: Which One Fits Your Project Better?
When buying a diamond wire saw cutting machine, you will find two main types on the market: hydraulic and electric. Both have their own advantages and suitable scenarios. You can choose the right one according to your main project types and working conditions:
Hydraulic wire saw machines
- Advantages: High power and high cutting efficiency, flexible to operate, and works well in narrow and small construction spaces. It can handle large, heavy-duty cutting projects with high-hardness concrete.
- Disadvantages: Requires a large amount of cooling water for the hydraulic system, higher equipment cost, and needs a separate hydraulic pump station.
- Best for: Large demolition projects, bridge and pier cutting, narrow space construction, projects with high-hardness reinforced concrete.
Electric wire saw machines
- Advantages: Lower cost, runs on regular household power supply, no need for a large amount of cooling water — only the wire head needs cooling, so it can work continuously for long periods. The saw head is heavy, so you can often fix it just by pressing the base down, no expansion screws needed, which reduces damage to the concrete.
- Disadvantages: Lower power and slightly slower cutting speed than hydraulic models. Less flexible for very narrow construction sites.
- Best for: Small and medium demolition projects, regular concrete cutting, projects with limited power supply, and teams on a tighter budget.
If you mostly do small to medium building renovation work, an electric model will be more cost-effective. If you take on large bridge, pier and heavy concrete projects, a hydraulic wire saw cutting machine will be more efficient for your work. And if you’re not sure which type fits your needs, you can tell us your main project types and we will recommend the most suitable model for you.
Key Features of YG Diamond Wire Saw Cutting Machine
- 360-degree adjustable cutting angle: With an optional universal frame, the machine can cut at any angle from 0 to 360 degrees. It adapts to all kinds of special-shaped cutting requirements, no matter how complex the structure is.
- High efficiency, wide cutting range: The average cutting speed is 2-5 square meters per hour, depending on concrete strength. It can cut concrete of any thickness, any shape, and it works both on land and underwater.
- Static cutting, no structural damage: The vibration-free static cutting process protects the remaining original structure completely. The cut surface is flat and smooth; no secondary trimming is needed.
- Complete standard configuration: Each unit comes with a full set of standard accessories: pump station, wire saw frame, four 10-meter oil pipes, one hydraulic clamp and a tool box. You can start working right after delivery, no need to buy extra accessories separately.
- Low operating and maintenance cost: The wearing parts are only the rubber rings on the wheels and the diamond wire itself. Both are easy and cheap to replace, so the long-term operating cost is very low.
- Simple operation: Workers can master the operation after simple training. The equipment runs stably, and daily maintenance is very easy.
A high-quality diamond wire saw for concrete will greatly improve your team’s cutting efficiency and let you take on more high-value projects.
