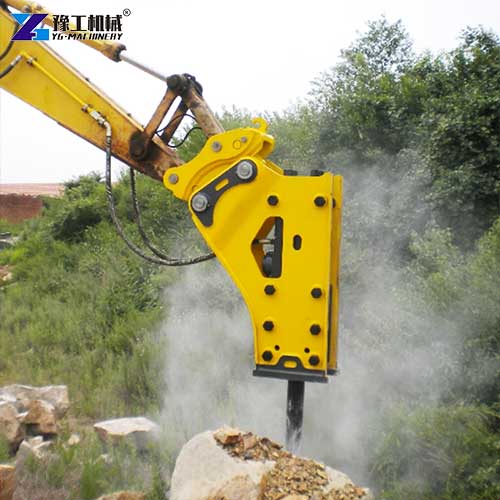

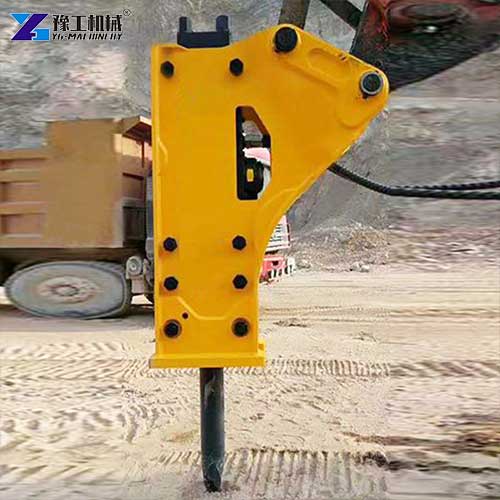

A concrete breaker attachment is one of the most practical and high-return excavator attachments for demolition, construction and mining work. It connects directly to your excavator’s hydraulic system, and uses hydraulic power to deliver high-frequency impact force to break concrete, rock and other hard materials. Compared with manual jackhammer work, it can boost breaking efficiency by 5-10 times, and cut labor costs by more than 60%. You only need one excavator operator to control the whole breaking process; no extra manual workers needed. If you’re looking for a reliable, hydraulic concrete breaker, you’ll find that these attachments fit almost every type of construction work: residential demolition, road renovation, foundation construction, quarrying, landscaping and more. Our product line includes 21 different models that fit 0.5 to 80 ton excavators, so you can always find a model that matches your machine and work needs. All models are designed for easy installation, on-site maintenance and long service life, even under high-intensity working conditions.

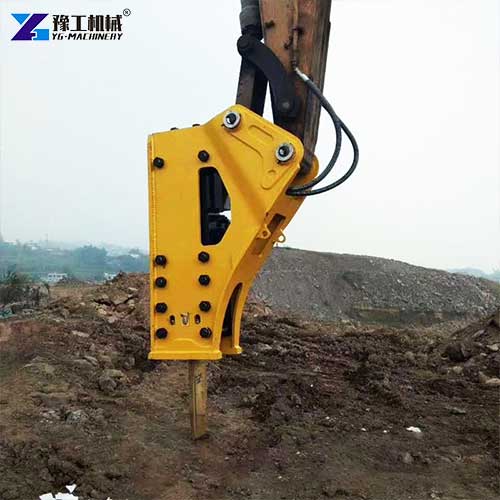

A good mini excavator hammer can turn your small excavator from a simple digging machine into a versatile demolition tool, helping you take on more types of projects without buying extra heavy equipment.
YG Concrete Breaker Attachment Parameters
| Model | ChiselDiameter | SuitableCarrierWeight | Main bodyWeight | OperatingPressure | HydraulicOil Flow | Blow Frequency | HoseDiameter |
| mm | Ton | kg | Kg/cm 2 | I/min | bpm | inch | |
| YG350 | 35 | 0.5-1 | 40 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG400 | 40 | 1-3 | 53 | 90-120 | 15-25 | 800-1300 | 1/2 |
| YG450 | 45 | 1.2-3.0 | 67 | 90-120 | 20-30 | 700-1200 | 1/2 |
| YG530 | 53 | 2.5-4.5 | 85 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG600 | 60 | 2-5 | 140 | 90-120 | 25-50 | 600-1100 | 1/2 |
| YG680 | 68 | 4-7 | 152 | 110-140 | 40-70 | 500-900 | 1/2 |
| YG750 | 75 | 6-9 | 210 | 120-150 | 50-90 | 400-800 | 1/2 |
| YG850 | 85 | 7-14 | 278 | 130-160 | 60-100 | 400-800 | 3/4 |
| YG100 | 100 | 10-15 | 475 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1250 | 125 | 15-18 | 616 | 150-170 | 80-110 | 350-700 | 3/4 |
| YG1350 | 135 | 16-26 | 846 | 160-180 | 130-150 | 400-800 | 1 |
| YG1400 | 140 | 18-26 | 916 | 160-180 | 120-180 | 350-500 | 1 |
| YG1400A | 140 | 18-26 | 952 | 160-180 | 120-180 | 350-500 | 1 |
| YG1500 | 150 | 27-35 | 1088 | 160-180 | 150-190 | 350-700 | 1 |
| YG1550 | 155 | 28-36 | 1309 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650 | 165 | 30-40 | 1438 | 180-200 | 200-260 | 250-400 | 1-1/4 |
| YG1650P | 165 | 30-40 | 1586 | 180-200 | 200-260 | 250-380 | 1-1/4 |
| YG1750 | 175 | 35-40 | 1929 | 180-200 | 210-290 | 200-350 | 1-1/4 |
| YG1850 | 185 | 35-45 | 2411 | 190-220 | 220-270 | 200-250 | 1-1/4 |
| YG1990 | 190 | 40-55 | 2626 | 190-220 | 220-290 | 180-200 | 1-1/4 |
| YG2100 | 210 | 60-80 | 3396 | 200-240 | 290-350 | 150-200 | 1-1/4 |
Case Study: Concrete Breaker Attachment Sold to Portugal
Client Background :
The client runs a small family-owned demolition and landscaping business in Portugal. They mainly take on private residential demolition projects, courtyard renovation work, and small commercial building tear-downs. They have two mini excavators: a 3-ton model for tight spaces and a 6-ton model for larger yards and small building walls.
Core Client Needs :
Before buying new breakers, the client used electric jackhammers and manual labor for most breaking work. They faced three main problems:
- Low work efficiency: A 20-meter-long concrete garden wall took 3 full days for 3 workers to break down
- High labor costs: They had to hire extra temporary workers for larger projects, which ate into profits
- Tight space limitations: Many residential yards have narrow access, so large equipment can’t get in
- They wanted breakers that could fit both of their mini excavators, were easy to operate, and could handle 10-20cm thick concrete walls and patio slabs. They also wanted something that was easy to maintain, since they didn’t have a dedicated maintenance team.
YG Matching Solution:
After learning about the client’s excavator models and project types, we recommended two different-sized concrete breaker attachments to match their two machines:
- YG450 model: Fits 1-3 ton excavators, 45mm chisel diameter, 800-1200bpm impact frequency. Perfect for the client’s 3-ton mini excavator, it works great for thin concrete slabs and tight spaces.
- YG680 model: Fits 4-7 ton excavators, 68mm chisel diameter, 500-900bpm impact frequency. Matches the client’s 6-ton excavator, handles thicker concrete walls and foundation breaking.
- Both breakers are compact, lightweight, and easy to install. The client received the mini excavator hammer and finished installation in 1 day with the help of our video guide; no extra technicians were needed.
Client Feedback :
“We were worried at first that our small excavators wouldn’t have enough hydraulic power to run breakers, but they work perfectly. The 6-ton concrete breaker attachment model can break through 15 cm-thick concrete walls 6 times faster than our old electric jackhammers. What used to take 3 workers 3 days now takes 1 operator half a day. We also love how easy they are to maintain. We change the chisel ourselves when it wears out, no need to send it back for service. We’ve used them for 4 months now, and they’ve already paid for themselves with the labor costs we saved. We’re planning to order a small excavator grapple attachment from you next month for our landscaping projects.”

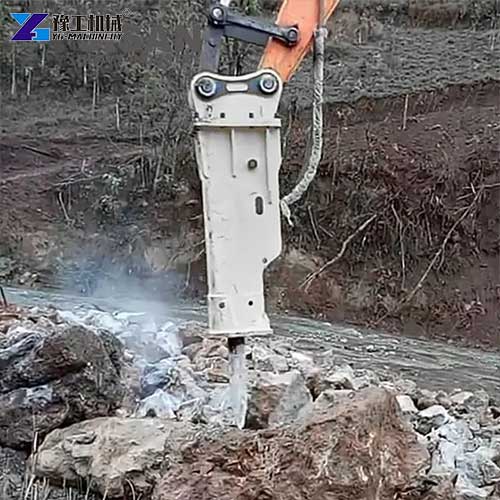

Hydraulic Hammer For Sale–YG Machinery

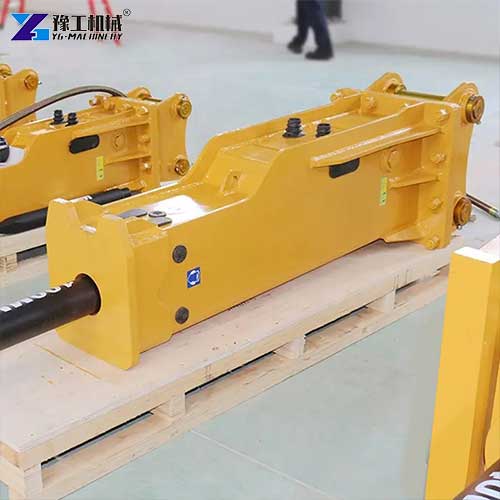

A well-matched hydraulic concrete breaker can completely change the efficiency and profitability of your demolition and earthwork projects. Whether you run a small residential demolition business or a large-scale earthwork company, choosing the right model for your excavators and working conditions will pay for itself quickly in labor savings and faster project completion. YG has 21 different hydraulic concrete breaker models that fit 0.5 to 80 ton excavators. All breakers are built with high-quality materials, designed for reliable performance in different climates, and are easy to maintain on-site. We can help you match the perfect model for your excavator fleet and project needs.
If you’re looking for a reliable hydraulic hammer for sale, contact us today. Tell us your excavator tonnage, hydraulic parameters, main project types and local climate, and we’ll recommend the most suitable model for you and provide a detailed quotation. We also offer remote installation guidance and long-term spare parts supply to make sure you get the most out of your equipment.
