A pipeline dredging robot is a remotely operated, crawler-based desilting device built to remove accumulated sludge, sand, debris, and organic sediment from inside pipes, culverts, stormwater channels, and underwater conduits. For decades, municipalities and industrial operators relied on confined-space entry teams or diver-led dredging to keep drainage systems clear. Those methods carry high safety risks, move slowly, and drive up labor and downtime costs. This type of robotic dredge machine changes the equation entirely by putting a compact, powerful cleaning unit directly inside the pipe while operators stay safely on the surface.

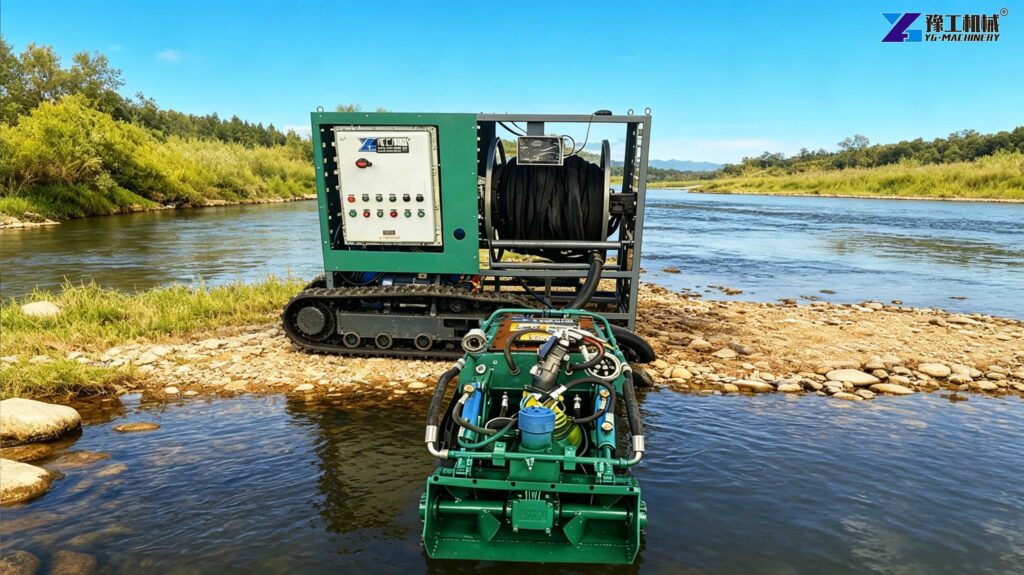

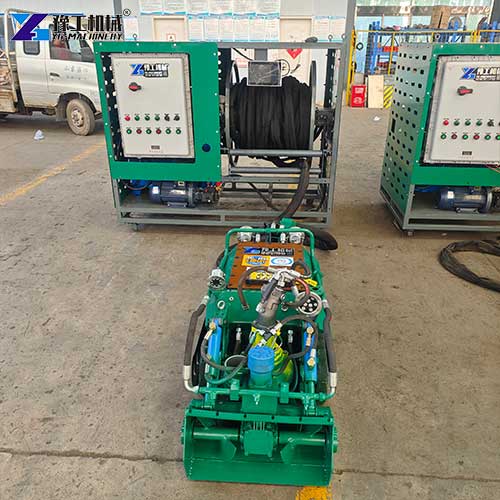

The complete system includes four main components. First, the tracked robot body carries the pump, jet nozzles, camera system, and drive train. Second, a ground-level hydraulic power station supplies pressure and electric power through armored umbilical hoses. Third, a slurry discharge line pulls loosened sediment out of the pipe and into a dewatering tank or truck. Fourth, a wireless control console lets the operator steer, adjust pump output, and monitor live underwater footage in real time. Standard models ship with 50 meters of hydraulic hose and 50 meters of sewage pipe; customers can extend both up to 100 meters for larger sites.
Pipeline Dredging Robot Technical Specifications
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure-resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
How a Pipeline Dredging Robot Operates?
A robotic dredge machine works through a continuous four-stage cycle: deployment, navigation, breaking, and extraction. During deployment, crews lower the unit into the pipe through a manhole or access chamber and connect the hydraulic, slurry, and control lines. The operator then runs a brief systems check before sending the unit forward.
For navigation, the unit relies on dual underwater LED lights paired with a forward-facing camera, so the pilot can see sediment buildup, pipe joints, debris piles, and structural damage as the machine advances. Optional LiDAR and ultrasonic sensors add obstacle detection for complex or heavily blocked sections. The crawler tracks grip slippery, silt-covered floors and maintain traction even on inclines and uneven surfaces.
Once the unit reaches the target zone, the breaking stage begins. High-pressure water jets loosen compacted silt and sand from the pipe invert, while an optional cutting head or winch-style dredging tool handles heavier material such as roots, plastic waste, and hardened sludge. The underwater dredging robot then activates its built-in slurry pump, which suctions the fluidized sediment through the intake and pushes it up the discharge line to the surface. This cycle repeats section by section until the entire pipe run is clean.
Choosing the Right Pipeline Dredging Robot for Your Site
Selecting the right pipeline dredging robot starts with measuring the actual pipe or channel internal width and confirming the maximum working depth. For round pipes under 700 mm, the YG500 or YG600 offers the best maneuverability and lowest entry cost. For pipes between 700 and 900 mm, step up to the YG700, YG800, or YG900 for wider cleaning coverage and higher pump output. And for large box culverts, open canals, or river work, the YG1200 is the appropriate choice.
Next, evaluate sediment type. Fine sand and soft silt move easily with standard water jets and a basic pump intake. If the site contains roots, construction debris, or hardened clay, specify a model with a mechanical cutting head or winch dredge attachment. Particle size rating matters too—the YG500 and YG600 handle particles up to 15 mm, while larger models manage 40 to 50 mm, with custom sizing available on request.
Depth and discharge distance are the third critical factors. Standard electric models handle working depths from 30 meters upward, with some configurations reaching 90 meters. If the discharge point sits far from the access shaft, confirm that the pump head rating covers both vertical lift and horizontal pipe friction loss.
Finally, choose between electric and diesel power. Electric underwater dredging robot units are the standard recommended configuration and work well for most urban and industrial sites with grid access. Diesel-powered versions are available for remote locations without electricity, though they add roughly 10,000 to 15,000 in cost and require additional fuel and exhaust management.
Safety and Environmental Advantages of a Drain Cleaning Robot
- Worker protection is the most immediate benefit. No personnel enter the pipe, so teams avoid exposure to toxic gases, drowning hazards, falling objects, and musculoskeletal injuries associated with heavy manual labor in confined spaces. Supervisors also spend less time managing entry permits, standby rescue teams, and atmospheric monitoring routines.
- Environmentally, the closed-loop slurry transfer system contains sediment inside the discharge hose instead of letting it resuspend into the surrounding water. For river and lake projects, this means less turbidity, fewer downstream impacts on fish and benthic life, and easier compliance with environmental permits.
- Electric-powered models add another layer of green benefit. They produce zero on-site exhaust emissions, run at low noise levels, and work without disrupting nearby residential areas or office buildings. For urban drainage work, this is a meaningful advantage over diesel-driven alternatives.
- Operators also appreciate that this drain cleaning robot reduces the volume of water used during cleaning compared with high-volume flushing methods, because the recirculated slurry system focuses energy directly on the sediment layer instead of flooding the entire pipe.
YG Pipeline Dredging Robot: Factory-Direct Quality
YG designs and builds the full pipeline dredging robot series in-house, with six standard models, optional explosion-proof and LiDAR upgrades, and factory-direct technical support for every customer. Whether you run a municipal drainage department, an industrial maintenance team, or an environmental dredging contractor, our team helps match the right configuration to your pipe dimensions, depth, sediment type, and production target. Every unit ships tested and ready for deployment, and our engineering team provides remote guidance for setup, operation, and routine maintenance. Custom modifications are available for specialized projects.
Ready to see how the right dredging system can speed up your next desilting job and reduce long-term operating costs? Send us your pipe specifications and site conditions today, and we will return a tailored recommendation and transparent pricing quote.
