A solar pile driver is a specialized construction machine engineered for drilling and driving foundation piles for solar panel mounting systems. It replaces labor-intensive manual digging and outdated impact methods, streamlining construction workflows and improving operational safety. YG offers two purpose-built configurations to meet diverse project needs: hydraulic drilling type and crawler impact type. Both models deliver consistent performance across soft loam, clay and medium-hard rock formations, covering 0-6m drilling depth and 80-600mm pile diameter ranges.
Designed exclusively for repetitive high-volume foundation works, this machine integrates optimized power transmission and a stable chassis structure. It adapts to complex site conditions without extensive pre-construction preparation, making it a standard essential for modern solar farm development.
YG Solar Pile Driver Technical Parameters
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right40° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
| Crawler photovoltaic pile driver | |||
| Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
| Track shoe width | 400mm | Impact frequency | 350-800BMP |
| motor | 4108 | Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
| Drilling depth | 0-6m | oil pump | 40/40/32 |
| Drilling diameter | 80-600mm | Driving speed | 3km/h |
Solar Pile Driver 6 Application Fields
- Utility-scale and distributed ground-mount solar farm pile installation
- Agrivoltaic project foundations, with low-ground-pressure tracks that preserve farmland integrity
- Mountain and hilly solar sites, where large wheeled equipment cannot access
- Sheet pile driving for small retaining walls, temporary site barriers and slope protection
- Helical pile installation for fence lines, billboards and prefabricated building bases
- Temporary support pile works for road maintenance and small bridge construction
Why Choose YG Solar Pile Driver?
- Stable power system: Equipped with a Yuchai 4108 engine and a triple-pump hydraulic system, it delivers continuous output during 8-hour daily operation. The built-in forced-air cooling system prevents overheating even in 40°C high-temperature environments.
- Efficient drilling performance: The upgraded power head provides 13000N.m torque and 180r/min rotational speed. It completes a 5-meter soil pile in approximately 1 minute and a medium-hard rock pile in 2 minutes, significantly shortening project timelines.
- Superior terrain adaptability: The crawler chassis with 400mm wide rubber tracks handles 30° slopes effortlessly. It travels directly on ungraded raw ground without additional gravel paving or site leveling works.
- Flexible multi-angle operation: The slide tilts up to 120° and the drill arm swings 150° left and right, allowing precise pile installation on uneven ground and sloped surfaces without repositioning the entire machine.
- Dual geological compatibility: It works seamlessly on both soil and rock layers with automatic hydraulic pressure adjustment, eliminating the need to switch between different equipment for variable ground conditions.

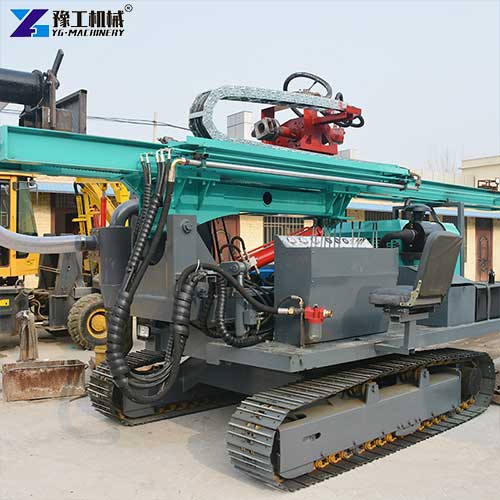

Working Principle Of Hydraulic Solar Pile Driver
Positioning and stabilization: The operator sets target pile depth and diameter parameters first. The machine moves to the marked pile position, extends stabilizing supports and adjusts body level to ensure vertical alignment during drilling.
Hydraulic power transmission: The engine drives the hydraulic system to generate power. The system automatically adjusts output torque and pressure based on real-time ground resistance, delivering consistent force to the power head.
Drilling and pile implantation: The power head drives the drill rod to rotate while applying uniform downward pressure. The drill bit breaks up soil or rock layers, gradually implanting the photovoltaic pile to the preset depth. The system monitors drilling progress in real time to ensure accuracy.
Retraction and relocation: Once the pile reaches the specified depth, the power head stops rotating and lifts the drill rod. The sheet pile driver then moves to the next pile position to repeat the process, enabling continuous batch construction.
Configuration Selection Guide For Different Geological Conditions
Choosing the right photovoltaic pile driver configuration directly affects construction efficiency and equipment service life. Match your site conditions to the appropriate model:
- Soft soil and clay sites: The hydraulic drilling type offers faster penetration speed and lower fuel consumption. It is ideal for flat, plain solar farms with uniform soft ground conditions.
- Mixed soil and rock sites: The crawler impact type combines rotary drilling and impact functions. It switches seamlessly between modes to handle alternating soil and rock layers without performance degradation.
- Medium-hard rock sites: Select the crawler sheet pile driver enhanced impact force. Its adjustable hydraulic hammer delivers sufficient power to break rock formations while maintaining stable operation.
- Sloped and mountain sites: Both configurations feature 30° gradeability, but the crawler type provides better traction and stability on uneven terrain.

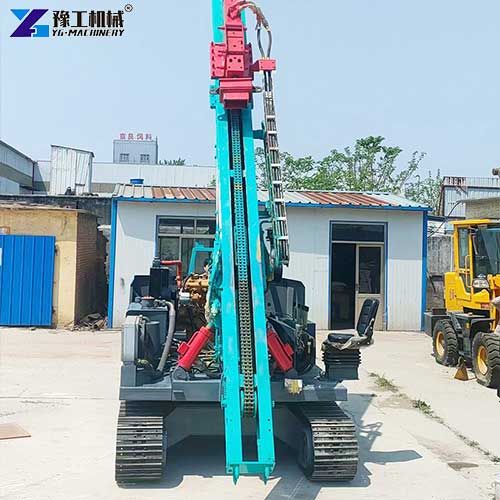

Helical Pile Driver For Sale-Factory Direct Price
A reliable solar pile driver is the foundation of efficient and high-quality solar farm construction. YG’s machines are built with industrial-grade components and proven hydraulic technology to deliver consistent performance in diverse working conditions. If you are preparing for an upcoming solar project or looking for a versatile helical pile driver for sale, share your site geological conditions, project scale and required pile specifications with our team. We will provide a customized equipment solution and a detailed quotation tailored to your specific needs.
