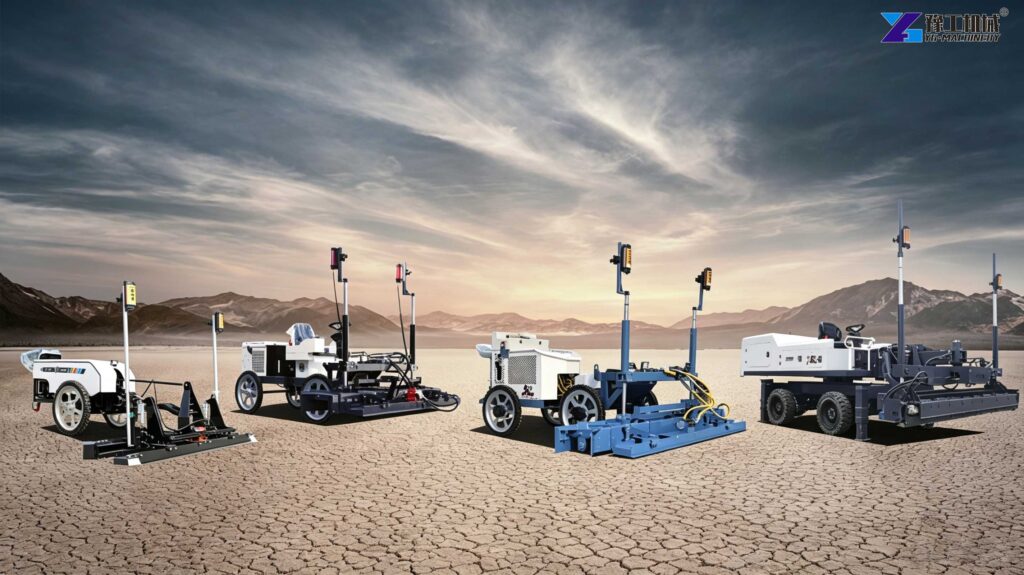

A laser screed machine for parking lot construction delivers automated, high-accuracy concrete leveling that manual methods simply cannot match. This advanced concrete floor leveling machine combines laser positioning technology with hydraulic control and high-frequency vibration to spread, vibrate, and level fresh concrete in a single pass. Contractors use it to create uniformly flat, dense, and long-lasting pavement surfaces across large open areas. Unlike traditional hand screeding that relies on worker experience and string lines, this equipment maintains consistent elevation across the entire project, reducing errors and rework. Parking lots demand especially strict flatness standards because poor leveling leads to standing water, uneven tire wear, and faster surface deterioration. The right equipment turns these demanding projects into predictable, high-quality results.
Laser Screed Machine for Parking Lot Parameters
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
The Working Principle of the Laser Screed Machine for Parking Lots
The entire system operates on a closed-loop feedback mechanism. First, a standalone laser transmitter set up on-site emits a 360-degree rotating laser beam that creates a fixed reference plane across the entire work area. This transmitter sits independently from the machine, which eliminates cumulative error as the equipment moves around the site.
Mounted on the screed head, laser receivers continuously pick up the reference beam. When the receiver detects even a minor deviation from the target elevation, it sends an instant signal to the onboard control system. The control unit then activates hydraulic actuators that raise or lower the screed head to correct the height automatically.
At the same time, a high-frequency vibration assembly works in sync with the leveling action to compact the concrete evenly. This simultaneous leveling and compaction is what makes a concrete floor leveling machine so much more efficient than separate screeding and vibrating steps. The vibration depth typically reaches 10 to 30 centimeters, ensuring uniform density through the full slab thickness.
5 Features of the Laser Screed Machine for Parking Lot
- Precision That Outperforms Manual Methods: Laser-guided leveling achieves flatness errors as low as ±1 to 3 millimeters over a 3-meter span. Manual screeding, by comparison, typically produces errors of 5 to 10 millimeters or more. This tighter tolerance matters directly for parking lot drainage, surface longevity, and overall finish quality.
- Dramatically Faster Project Timelines: A single operator can cover hundreds of square meters per hour, completing work that would normally take a crew of four to five workers. For large parking facilities, this speed translates into shorter concrete pour windows and earlier access for follow-up construction phases.

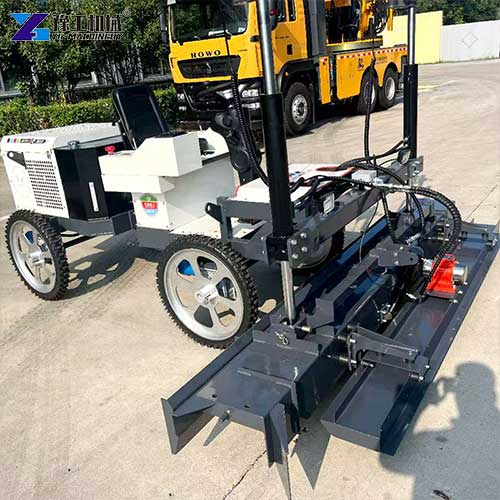

- Four-Wheel Mobility and Stability: The 4-wheel concrete laser leveling machine combines a sturdy chassis with balanced weight distribution, giving it reliable performance on uneven job sites. The wider footprint also reduces ground pressure, which helps when working on subgrades that have not been fully compacted.
- Reduced Labor Dependency: Because the 4-wheel concrete laser leveling machine handles the most critical leveling work automatically, contractors rely less on highly skilled screeding specialists. One trained operator manages the machine while the rest of the crew focuses on concrete placement and finishing.
- Consistent Density Across the Slab: The integrated vibration system compacts concrete uniformly as it levels. Higher and more even density means stronger slabs, fewer cracks, and better long-term durability — especially important for parking surfaces that bear repeated vehicle loads.
Comparing Laser Screeding to Traditional Manual Methods
1. Setup Time and Labor Requirements
Traditional manual screeding starts with hours of preparation. Crews must measure elevations, drive stakes, stretch string lines, and install screed rails across the entire pour area. For a large parking lot, this setup alone can take a full crew half a day or more. With laser screeding, you set up one laser transmitter and calibrate the machine in a fraction of that time. No rails, no stakes, no string lines to adjust between passes.
2. Accuracy and Consistency Across Large Areas
Manual screeding produces acceptable results on small slabs, but accuracy degrades as the work area grows. String lines sag, rails shift, and worker judgment varies from section to section. A laser screed machine for parking lot work maintains the same reference plane across the entire site from start to finish. The elevation reference never drifts, so every section matches every other section within millimeters.
3. Daily Production Output
A manual crew of four to five experienced workers typically screeds a few hundred square meters in a full day, depending on slab complexity. A single laser screed operator can cover three to five times that area in the same timeframe because the machine moves continuously and combines multiple steps into one pass. This productivity gain is why larger parking projects almost always run on tighter schedules when laser equipment is involved.
4. Crew Size and Skill Requirements
Manual screeding depends heavily on experienced workers who know how to read the concrete and maintain consistent depth. Finding and keeping those skilled workers gets harder every year. Laser screeding shifts the skill requirement from expert screeding hands to equipment operation, which is generally faster to train for. You still need good concrete workers on site, but you do not need a team of specialist screeders to get a premium result.
5. Rework and Correction Rates
Manual leveling often leads to follow-up work — grinding high spots, filling low areas, or patching sections that did not meet specification. Each correction adds time and material cost to the project. Laser screeding dramatically reduces these issues because the first pass is already within tolerance. Less rework means cleaner handoffs to finishing crews and fewer warranty callbacks after the project closes.
Floor Laser Screed Price – Factory Direct Price
YG designs and builds reliable concrete laser screed equipment for contractors who need consistent performance on real job sites. The focus stays on practical engineering, durable components, and straightforward operation — features that matter when deadlines are tight and conditions are less than ideal. Whether you need a laser screed machine for parking lot construction, warehouse slabs, or industrial floor projects, YG builds models sized for the work, with transparent floor laser screed price options tailored to different project scales. Ready to find the right configuration for your upcoming projects? Reach out to discuss your site requirements, production targets, budget and accurate floor laser screed price matching your construction demands.
