A road striping machine is a professional pavement construction equipment that draws clear regulatory, guiding and warning signs on flat surfaces. It comes in two main types: thermoplastic and cold spray, each designed for different project requirements. Thermoplastic paint machines dominate 90% of global road marking projects due to their superior durability and reflectivity. This versatile line marking equipment adapts to various pavement types, including asphalt and concrete, delivering consistent results across different construction scenarios.
YG Road Striping Machine Parameters
| Model | YG-CK360S | YG-CK380S |
| Thermoplastic Tank | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm | synchronous clutch spreading, equipped with a speed-adjustable gear shifting device, single/double spreading can be selected according to needs, 50-200mm |
| Glass Bead Container | 10kg/box | 10kg/box |
| Adjustable glass bead spreader | Ensure the machine is moving in a straight line or turning freely on the curved road | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Rear Wheel Directional Device | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices | Ensure the machine moving in a straight line or turning freely on a curved road |
| Brake | Using a drum brake, you can adjust the brake tension | Using a drum brake, you can adjust the brake tension |
| Marking width | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) | Standard 150mm marking bucket 100mm、150mm、200mm、250mm、300mm、400mm、450mm (at customers’ option) |
| Battery Capacity | 15AH | 15AH |
| Battery Voltage | 48V lithium battery | 48V lithium battery |
| Driver Speed | 1-8km/hour | 1-8km/hour |
| Working Duration | The machine can mark road lines24 hours after charging the battery, 5 hours | Ensure the machine is moving in a straight line or turning freely on a curved road |
| Dimensions | 1210X970X1070mm | 1200X970X1100mm |
| Net weight | 130kg | 100kg, double stainless steel heating insulation barrels, plug-in manual mixer devices, and removable devices |
5 Application Fields of Road Striping Machine
- Highway and municipal road construction: Creates lane dividers, crosswalks, stop lines and warning signs to regulate traffic flow and improve road safety.
- Parking lot management: Marks parking spaces, directional arrows, no-parking zones and pedestrian walkways for organized parking operations.
- Airport and port facilities: Draws runway markings, taxiway guides and cargo handling zone signs to ensure safe aircraft and vehicle movement.
- Sports and recreational areas: Paints athletic tracks, basketball courts, playground boundaries and safety lines for public spaces.
- Industrial and warehouse zones: Marks pedestrian aisles, loading bays and hazard warning areas to enhance workplace safety.

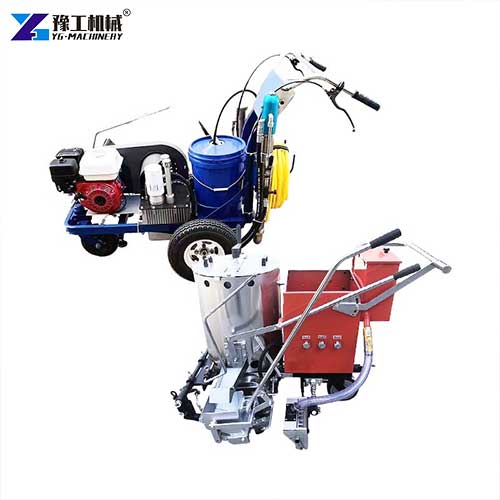

Thermoplastic vs Cold Spray Road Marking: Which Fits Your Project?
These two technologies represent the global standard for pavement marking, with thermoplastic road line marking machines accounting for 90% of all applications and cold spray making up the remaining 10%. Neither is universally superior; each excels in specific scenarios based on project needs, budget and environment.
Core Performance Differences

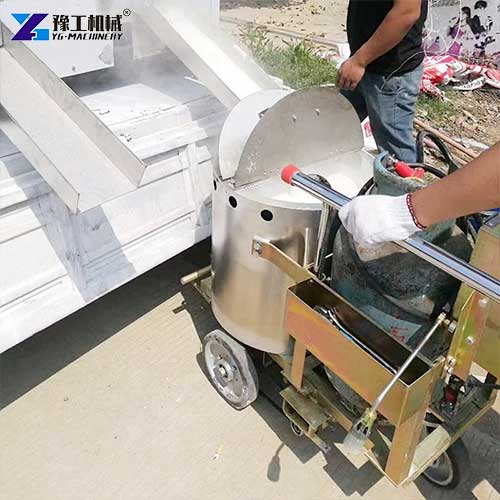

- Thermoplastic marking uses a heated synthetic resin coating mixed with glass beads. It dries in 6 seconds for immediate traffic reopening, lasts 2-4 years, and provides excellent night-time reflectivity. It requires a slightly larger construction team but delivers lower long-term maintenance costs due to fewer re-marking cycles.

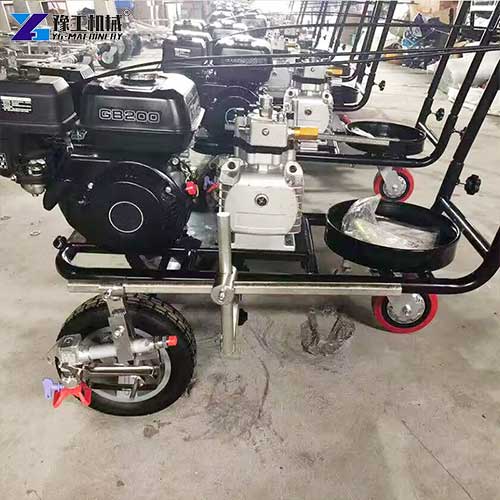

- Cold spray marking: Applies liquid road paint directly without heating. It works in temperatures as low as 0°C, has lower initial material cost, but only lasts about 6 months and requires 2 hours of drying time before traffic can resume.
Typical Application Scenarios
- Choose a thermoplastic road line marking machine for high-traffic highways, urban main roads and arterial roads where durability and night visibility are critical.
- Choose cold spray for parking spaces, no-parking lines, channel lines, directional arrows, rural roads in cold regions, airport facilities and temporary construction zone markings.
Road Striping Machine Advantages

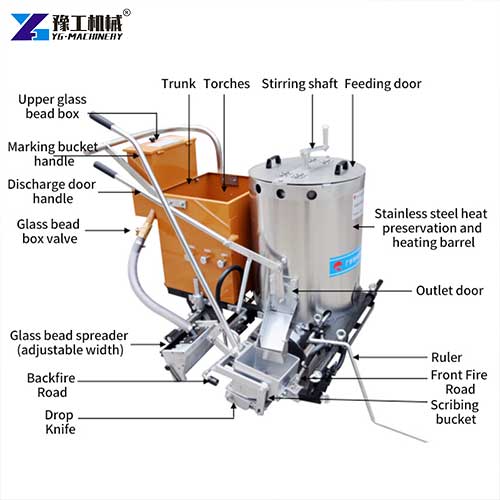

- Synchronous clutch spreading system: Equipped with adjustable speed gear shifting, allowing single or double spreading modes to match different coating thickness requirements.
- Wide adjustable marking width: Supports 50 mm to 450 mm line widths with interchangeable marking buckets, covering all standard road and parking lot marking needs.
- Double stainless steel insulation barrels: Maintain consistent coating temperature (180-210°C) during operation, preventing premature solidification and ensuring uniform application.
- Long-lasting lithium battery power: 48V 15AH battery provides up to 5 hours of continuous operation on a single charge, eliminating the need for external power sources on remote sites.
- Flexible steering system: Adjustable glass bead spreader and rear wheel directional device ensure straight-line movement and smooth turning on curved roads.
Key Factors To Choose The Right Road Striping Machine
- Project scale and traffic volume: For high-traffic highways and main roads, choose thermoplastic road striping machines for long-term durability. For temporary or low-traffic projects, cold spray units may be more cost-effective.
- Working environment: If you operate in cold climates with frequent sub-zero temperatures, cold spray equipment offers better low-temperature performance.
- Required marking width: Ensure the machine supports the full range of line widths you need for your typical projects.
- Battery life and mobility: Hand-push models with long battery life are ideal for small to medium-sized projects and sites with limited access.
Road Line Painting Machine For Sale
A reliable road striping machine is an essential investment for any road construction, parking lot management or facility maintenance company. YG’s machines are built with industrial-grade components to deliver consistent performance and long service life.
If you are looking for a high-quality road line painting machine for sale and want to get a free line marking equipment quote tailored to your project requirements, contact our team today. We will provide professional model recommendations and technical support to help you select the perfect equipment for your business needs.
