A shot blast booth is a fully enclosed professional surface treatment equipment, mainly used for metal parts rust removal, oxide scale removal, old coating removal and surface roughening. It works by spraying abrasive materials onto the workpiece surface through high-speed airflow to clean and treat the workpiece surface. The fully enclosed structure and built-in dust collection system can effectively prevent dust from spreading, meeting environmental protection requirements. We also provide a portable dry ice cleaning machine, an industrial shot blaster, and a dustless sand blasting machine for different construction needs. This equipment is widely used in hardware processing, foundry, auto parts manufacturing, machinery repair and other industries.
Shot Blast Booth Technical Specifications
| Size of Blasting Room | Size of workpieces | Blasting Gun Qty |
| 6000×6000×5000mm | 3000×3000×2500mm | 2 |
| 6000×6000×6000mm | 3000×3000×3500mm | 2 |
| 8000×6000×5000mm | 5000×3000×2500mm | 2 |
| 8000×6000×6000mm | 5000×3000×3500mm | 2 |
| 10000×6000×6000mm | 7000×3000×3500mm | 2 |
| 15000×6000×6000mm | 12000×3000×3500mm | 2 |
| 15000×8000×6000mm | 12000×5000×3500mm | 2 |
| 18000×8000×6000mm | 15000×5000×3500mm | 4 |
| 18000×10000×8000mm | 15000×7000×5500mm | 4 |
Common Surface Treatment Problems Solved By Shot Blasting

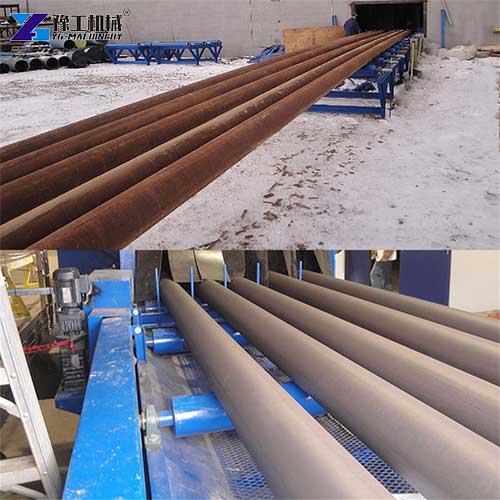

- Rust and corrosion removal: Shot blasting strips rust and corrosive layers quickly off metal parts stored long-term or deployed in humid surroundings, restoring their natural metallic shine. It delivers treatment efficiency 5 to 10 times greater than manual polishing.
- Oxide scale removal: For castings, forgings and heat-treated parts, shot blasting can remove the oxide scale on the surface quickly and evenly, which is convenient for subsequent processing and painting.

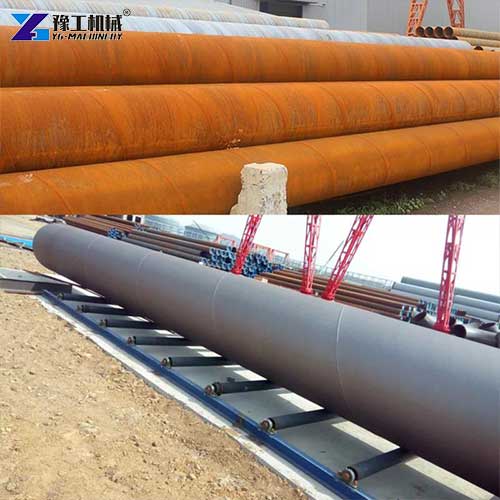

- Old coating removal: For workpieces that need to be repainted, shot blasting can completely remove the old paint layer and coating on the surface without damaging the base material, and the treatment effect is more uniform than chemical stripping.
- Surface roughening: Before spraying, painting and electroplating, shot blasting can roughen the workpiece surface appropriately, improving the adhesion of the coating and extending the service life of the coating.
- Surface stress relief: For metal parts that have undergone machining and heat treatment, a portable sand-blasting booth can eliminate the surface stress of the parts, improving the fatigue resistance and service life of the parts.
5 Shot Blasting Booth Operation Notes
This shot blasting room adopts a fully enclosed design with high safety, but you still need to pay attention to the following operation matters to ensure safe operation and extend equipment service life:
- Check the dust collection system before operation: Before starting the equipment, check whether the dust collector and abrasive recovery system work normally to avoid dust leakage caused by system failure.
- Operators must wear protective equipment: Operators must wear protective masks, goggles and work clothes when operating to avoid damage to the respiratory tract and eyes caused by dust and abrasive splashing.
- Do not open the door during operation: Operators must never open the shot blast booth door while the blasting system works to stop dust leakage and flying abrasives from triggering safety incidents.
- Clean the recovery system regularly: Clean the abrasive recovery system and dust collector filter regularly to avoid blockage affecting the use effect and dust removal efficiency.
- Do not process workpieces beyond the specified size: Do not put workpieces that exceed the maximum size and weight of the equipment into the booth to avoid damage to the equipment structure.
4 Shot Blast Booth Selection Guide
When choosing a shot blast booth, you need to consider the following factors to select the most suitable model for your production needs:
- Workpiece size and weight: Choose the internal size of the booth according to the maximum size of your workpieces, reserve enough operation space, and ensure that the load-bearing capacity of the equipment meets the weight of the workpieces.
- Processing volume and efficiency requirements: Choose the corresponding blasting gun configuration and automation degree according to your daily processing volume. For large processing volumes, you can choose a multi-gun automatic model to improve work efficiency.
- Abrasive type and recovery method: Choose the appropriate abrasive recovery system according to the abrasive type you use to ensure recovery efficiency and reduce abrasive waste.
- Environmental protection requirements: Choose the corresponding dust collection system configuration according to your local environmental protection requirements to ensure that the dust emission meets the standards.
If you are looking for a reliable sand blasting booth for sale, you can tell us your specific workpiece parameters and processing needs, and we will recommend the most suitable model for you.
Why Choose YG Shot Blast Booth?
Our shot blasting room is designed and manufactured according to actual industrial production needs, with reliable performance and high cost performance:
High-efficiency dust collection system: Built-in multi-stage dust collection system with a dust removal rate up to 99%, which fully meets environmental protection requirements and ensures a clean working environment.
Automatic abrasive recovery: Equipped with an automatic abrasive recovery and separation system, which can recycle usable abrasives automatically, reducing abrasive consumption and production cost.
Customizable size and configuration: We can customize the internal size, number of blasting guns, automation degree and other configurations according to your actual production needs, to fully match your production process.
Sturdy and durable structure: The main body adopts a thickened steel plate structure, with wear-resistant protective lining inside, which has a long service life and a low failure rate and is suitable for long-term continuous industrial production.
Sand Blasting Booth For Sale– YG Machinery
YG shot blast booth combines high dust removal efficiency, low operating cost, and flexible customization, perfectly meeting the surface treatment needs of different industries and scales. If you are looking for a cost-effective portable sand blasting booth or want to get a customized surface treatment solution for your factory, contact us today to get detailed product parameters and a free solution design.
