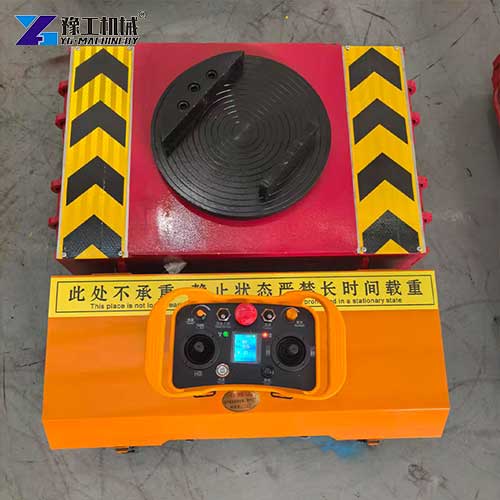

The electric load-moving skate is a battery-powered, remote-controlled device that replaces traditional manual skates, jacks, and forklifts for moving heavy industrial equipment across factory floors. Unlike manual skates that require workers to push, pull, and pry loads weighing tens of tons, an electric mover does the work with the push of a button. A single operator controls the unit from a safe distance using a wireless remote, steering heavy machinery through narrow aisles, around obstacles, and into precise positions.
The YG electric load moving skates range from 10 tons to 60 tons capacity, with six models covering the full spectrum of industrial moving needs. Each unit features dual gear motors with electromagnetic safety brakes, a 48V lithium battery system, and heavy-duty polyurethane wheels that protect factory floors. The remote control transporter gives operators full command over direction, speed, and positioning—all from a safe vantage point.
Parameters of YG Electric Load Moving Skates
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimension（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30Ah (ternary lithium) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48V 120Ah (ternary lithium or lithium iron phosphate) | 48V 100AH (ternary lithium) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q355 steel | 10 mm Q355 steel | 12 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel |
| Drive wheel | 4 | 4 | 4 | 4 | 4 | 8 |
Case Study: American Machinery Manufacturer Streamlines Production Line Relocation
Client background: A machinery manufacturer based in America needed to relocate a 35-ton CNC machining center across its production facility to accommodate a new assembly line.
Customer need: The machining center measured over 6 meters long and had to pass through narrow aisles between existing equipment. Traditional overhead cranes could not reach the location, and forklifts lacked the capacity and maneuverability. Manual skates would have required a crew of eight to ten workers and posed significant safety risks. The company needed a solution that allowed precise positioning in confined spaces while keeping workers safe.
YG matching solution: The customer deployed a YG-40 electric load moving skates with 40-ton capacity. The unit measures just 810×800×182mm—low enough to slide under the machine base. A single operator controlled the entire move using the wireless remote, steering the skate smoothly through the facility. The 48V 120Ah lithium battery provided continuous power for the duration of the relocation. The polyurethane wheels distributed the extreme surface weight evenly, protecting the factory’s epoxy floor from damage.
Specific customer feedback: The project manager confirmed that the electric mover completed the relocation in under three hours—a job that would have taken a full day with manual methods. The operator navigated the 35-ton machine through aisles with less than 200mm of clearance on each side. The remote control gave the operator full visibility of the load and surrounding obstacles throughout the move. The customer noted that the electromagnetic safety brakes held the load securely on a slight incline without any creep. The equipment has since been used for three additional machinery relocations and is now considered an essential tool in the plant.
How Does the Remote Control System Work?
The remote control transporter connects to the electric transfer cart through a wireless signal with an effective range of up to 50 meters. This range allows operators to stand well clear of the load while maintaining full control.
The controller features dual joysticks or proportional controls that allow simultaneous driving and steering. Operators can adjust speed continuously from 0 to maximum, enabling smooth acceleration and deceleration. An emergency stop button on the remote provides instant shutdown if needed.
For multi-unit configurations, the remote control system supports synchronized operation. Users can link two, three, or four electric load moving skates together and control them from a single transmitter. This capability proves essential for moving oversized or irregularly shaped loads that require support at multiple points.
6 FAQs About Electric Load Moving Skates
A: Charging typically takes about one hour for a full charge. The charger connects directly to the unit or to the removable battery pack.
A: The units operate at 2 to 10 meters per minute, controlled continuously via the remote. The speed can be adjusted to suit the load weight and operating conditions.
A: Yes. Multiple electric load moving skates can be synchronized and controlled from a single remote transmitter, allowing coordinated movement of oversized loads.
A: The electric transfer cart handles slopes up to 15 degrees. The electromagnetic brakes hold the load securely on inclines when the remote is released.
A: The polyurethane wheels work on concrete, epoxy-coated, and most industrial floor surfaces. The wheels protect floors from damage that steel wheels would cause.
A: Basic operation is intuitive—the remote control uses simple joystick or proportional controls. Most operators become proficient within a single session. YG provides detailed manuals and video tutorials with each unit.
Ready to Evaluate the YG Electric Load Moving Skates for Your Facility?
Your choice of an electric load moving skate determines how efficiently your team moves heavy equipment, how safely they work, and how well you protect your facility floors. The YG series offers capacities from 10 to 60 tons, wireless remote control, and durable construction that industrial operators trust.
Contact the YG sales team with your typical load weights, floor conditions, and facility layout. They will recommend the model and configuration that matches your operational needs and provide a competitive quotation. Put the power of a reliable remote control transporter to work on your next heavy equipment move.
