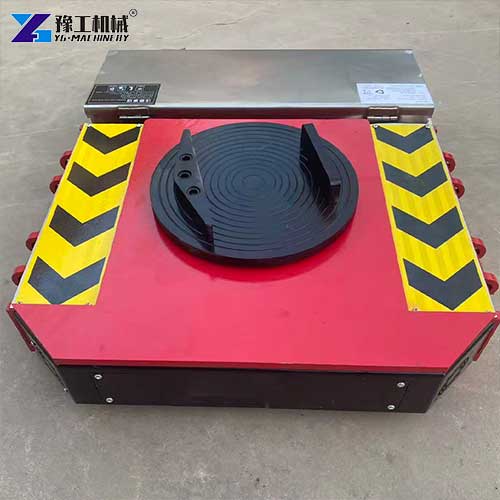

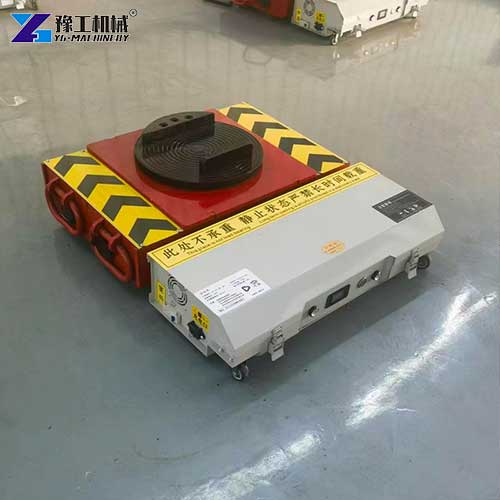

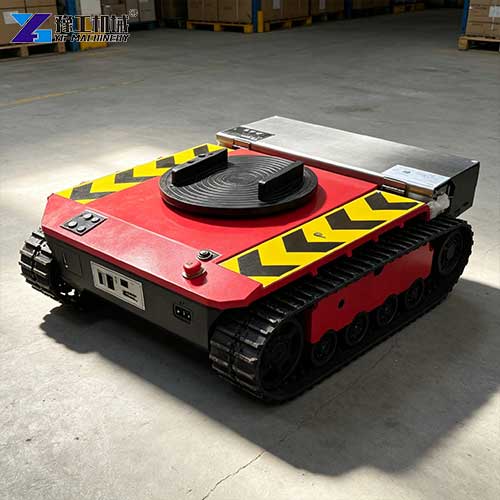

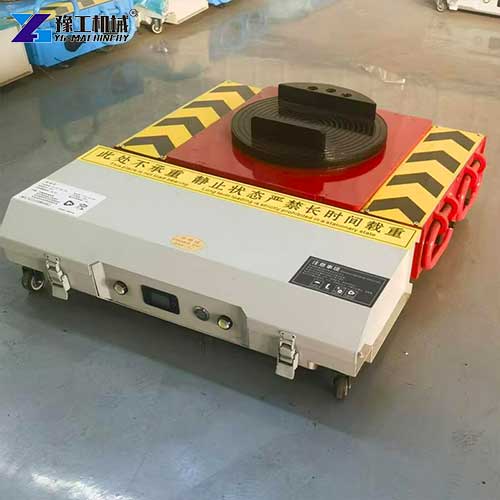

An electric mover is a battery-powered, remote-controlled platform that slides under heavy loads and moves them across factory floors. It carries up to 60 tons, turns 360 degrees in place, and fits under most machinery with just 145- 185 mm clearance. The YG series electric transfer cart offers six models with load capacities from 10 to 60 tons. Every model features lithium battery power, wireless remote control, and 360-degree rotation. For industrial facilities looking for a remote-controlled electric transporter that replaces manual pushing and crane dependency, the YG series provides a practical, proven solution.
Electric Mover Technical Specifications:
| Model | YG-10 | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Dimension（mm） | 500*550*145 | 670*620*165 | 740*640*185 | 810*800*182 | 810*800*182 | 1110*880*185 |
| Motor(2 sets with brake) | 500w | 750w | 1000w | 1 500w | 2000w | 3 000w |
| Controller | Dual driver D2T80A | Dual driver D2T80A | Dual driver D2T100A | Dual driver D2T200A | Dual driver D2T200A | Dual driver D2T200A |
| Battery | 48V 30Ah (ternary lithium) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 60AH (ternary lithium or lithium iron phosphate) | 48V 120AH (ternary lithium or lithium iron phosphate) | 48v1 20AH (ternary lithium or lithium iron phosphate) | 48V 100AH (ternary lithium) |
| working current | 25A | 60A | 60A | 150A | 150A | 150A |
| Maximum towing weight | 10t | 20t | 30t | 40t | 50t | 60t |
| Plate | 10 mm Q355 steel | 10 mm Q355 steel | 12 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel | 16 mm Q355 steel |
| Drive wheel | 4 | 4 | 4 | 4 | 4 | 8 |
5 Key Features of Electric Mover
Every model within this electric machinery skates lineup carries carefully calibrated hardware specifications built for continuous industrial use. All data originates from official model parameters, without exaggerated performance claims.

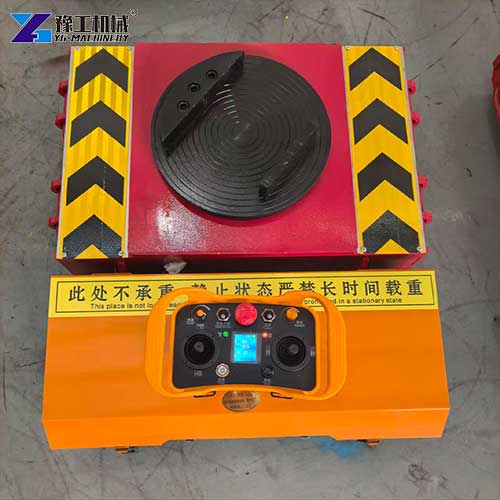

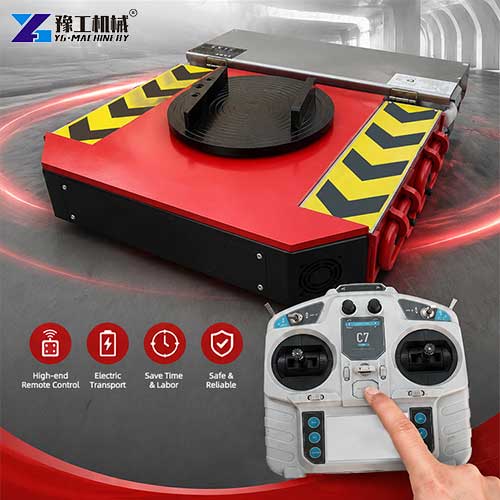

- Wireless remote‑first control system: Industrial remote hardware provides up to 50 meters of effective control range. Operators stand outside high‑risk zones while observing load movement. This separates personnel physically from shifting heavy objects and reduces the risk of crushing or collision incidents. Single‑person operation replaces multi‑person manual moving teams.
- Zero‑radius 360‑degree rotation: Independent wheel drive design enables full in‑place turning. Operators adjust orientation without backing up, which drastically improves maneuverability in narrow factory aisles and cramped installation spots. This feature distinguishes it from many conventional wheeled industrial transport tools.
- Heavy‑duty structural build: Load plates use Q355 steel, with plate thickness scaling up together with rated towing capacity. Light‑capacity units use 10 mm steel plates, while 40‑ton to 60‑ton models adopt 16 mm thick plates to absorb concentrated heavy‑load stress during operation. Dual‑motor assemblies with integrated brakes maintain stable holding positions even when the unit stops on sloped ground.
- Modular multi‑unit synchronization capability: Multiple units can connect through wireless synchronous linkage. Users combine several devices to support oversized, extra‑long or irregular‑shaped payloads that cannot sit on a single transport platform. This expands the practical application scope beyond each individual model’s standalone towing rating.
- Battery‑powered trackless operation: The whole system runs on 48‑volt lithium battery packs. No permanent power supply cables or fixed rails constrain travel paths. Teams reposition the unit between different workshop zones or outdoor yards as project demands shift. Battery capacity matches each model’s power consumption to sustain practical working sessions.
Applications of YG Electric Mover
The YG series remote-controlled electric transporter serves multiple industrial applications:
- Factory and Precision Manufacturing. Moving heavy CNC machines, injection molding machines, and precision equipment during plant layout changes or installation. The electric mover slides under machinery bases and positions them with millimeter accuracy. Widely used in aerospace and shipbuilding for moving large precision components.
- Warehouse and Logistics Hubs. Transporting heavy steel coils, molds, and large pallets. The 360-degree rotation capability is valuable in crowded warehouse environments with narrow aisles. In port terminals, the mover handles container and bulk cargo transfer.
- Construction and Energy. Moving precast concrete components, bridge steel structures, transformers, and generators on construction sites. The electric transfer cart handles slopes up to 15 degrees and adapts to uneven terrain.
- Maintenance and Repair. Positioning equipment for servicing without disconnecting it from its operating location. The electric machinery skates slide under the equipment, lift it slightly, and move it to the service area.
Modular Design: Multiple Units Working Together
The YG series remote-controlled electric transporter supports multi-unit synchronous operation. Multiple units can be linked wirelessly to handle oversized loads.
How it works: Each unit has its own motor, battery, and controller. The remote control sends the same command to all units simultaneously. All units move together, turn together, and stop together.
The practical application: A 20-meter-long machine or an oversized structural assembly that exceeds the capacity of a single unit can be moved by two, three, or four units working in coordination. The load stays level and stable because all units respond identically.
Customization: The circular plate accessory can be customized. Load dimensions, capacity requirements, and control system preferences can all be tailored to specific applications.
Component availability: The controller uses dual driver configurations matched to each model:
- YG-10 and YG-20: Dual driver D2T80A
- YG-30: Dual driver D2T100A
- YG-40, YG-50, and YG-60: Dual driver D2T200A
The matching of drivers to motor power ensures consistent performance and protects the electrical system from overload.
YG Electric Mover For Sale
YG provides technical support and spare parts availability for international customers. If you need an electric mover for factory relocation, machine installation, or heavy equipment moving, the YG series provides proven performance. Contact us with your load capacity and application requirements. We will recommend the right model for your operation. Get a free quote for your electric transfer cart today.
