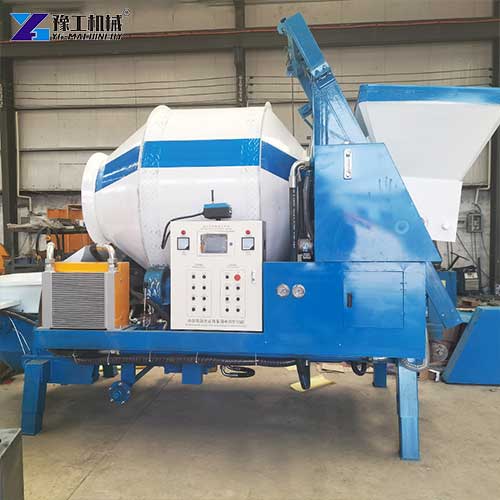

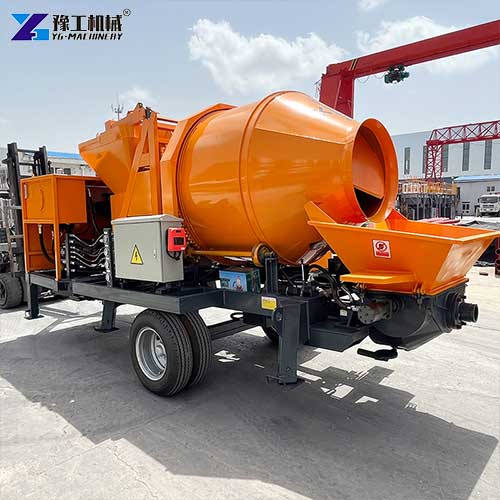

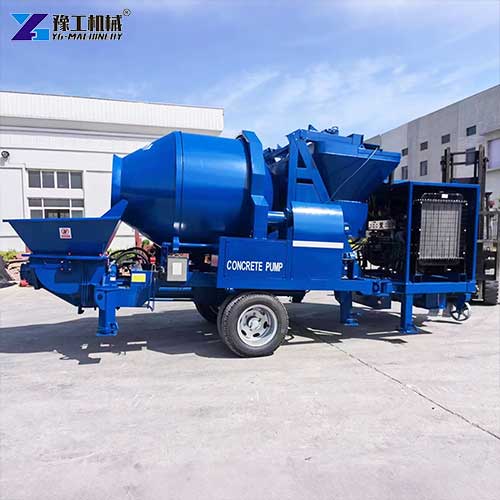

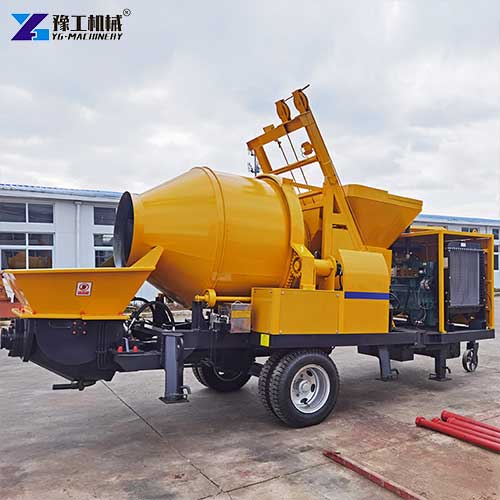

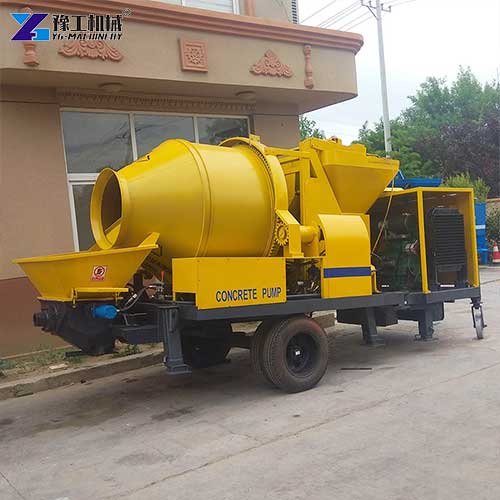

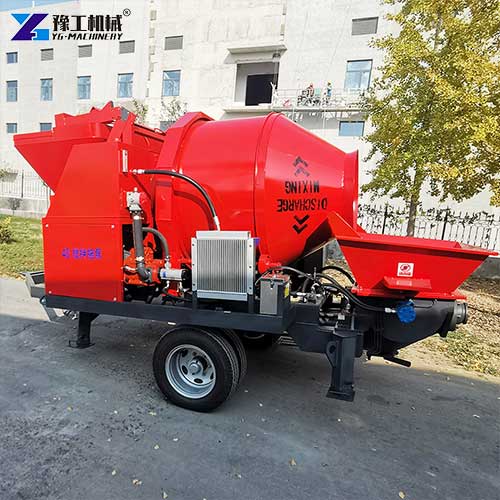

Built for on-site continuous concrete construction, a portable concrete mixer with pump combines feeding, mixing and high-pressure pipeline pumping into one mobile unit to pump mixed concrete up to target pouring floors. This concrete mixer with pump machine runs with fully automated operation workflows, lifting overall construction efficiency to 4 to 6 times that of traditional stationary mixers. Buyers pick electric drive or diesel power versions based on local job site power conditions, and we also supply standalone concrete pump products for clients with separate mixing equipment. Two mainstream high-selling models cover theoretical delivery output from 20m³/h up to 40m³/h, with maximum working pressure fixed at 20Mpa for stable long-distance pipeline delivery. The trailer concrete mixer with pump moves easily between scattered work zones, and it works well in narrow spaces where large fixed mixing stations cannot be installed.

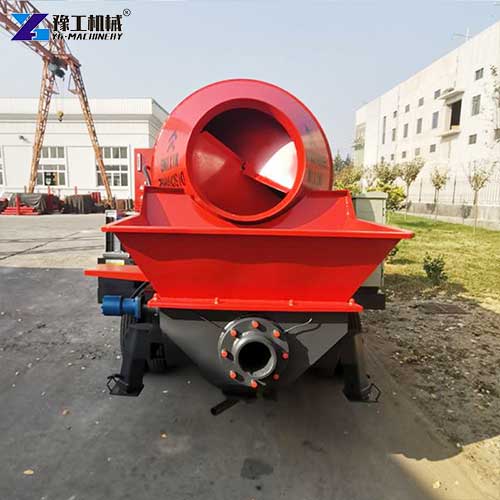

The concrete mixer and pump for building use handles aggregate particle sizes between 0.5mm and 40mm, matching raw material gradation requirements for most regular civil construction concrete.
Portable Concrete Mixer With Pump Parameters:
| Model | YG-350 | YG-550 |
| Theoretical delivery volume | 20-30M3/h | 40M3/h |
| Bone particle diameter | 0.5-40mm | 20-40mm |
| Greatest pressure | 20mpa | 20mpa |
| Bore*Stroke | 180*1000mm | 200*1110mm |
| Motor Power | 45kw | 55kw |
| Oil pump power | 100(column)L/S | 140(column)L/S |
| Delivery pipe | 125mm | 125mm |
| Genset power | 150kw | 150kw |
| Machine size | 6100*2000*2700mm | 6200*2000*2700mm |
| Weight | 5500kg | 6500kg |

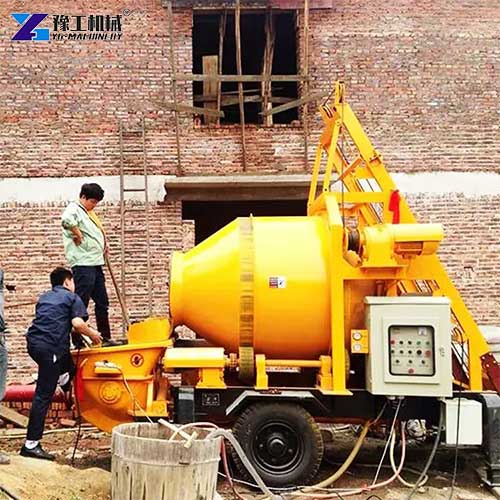

Core Application of Portable Concrete Mixer With Pump
Contractors deploy the concrete mixer and pump for building use across diversified infrastructure projects with scattered pouring locations:
Highway, Railway, and Tunnel Works: Crews use the unit for continuous concrete pouring along road embankments, tunnel lining and bridge auxiliary structure construction, avoiding repeated concrete transport from distant mixing plants.
Water Conservancy And Rural Development Projects: For rural housing construction, farmland irrigation facilities and township infrastructure upgrading, the compact mobile design adapts to remote job sites without a complete industrial power supply.
Building Roof and High-Rise Slab Casting: It pumps mixed concrete vertically to roof layers and mid-height building floors, solving continuity and safety problems during high-level concrete delivery.
Municipal Road Pavement Repair: Small road renovation projects rely on the flexible unit for on-demand concrete mixing and pumping, cutting material waste caused by bulk pre-mixed concrete delivery.
Portable Concrete Mixer With Pump: Key Advantages
- Greatly Improved Construction Efficiency: Integrated mixing and pumping removes extra steps for concrete loading and transit. Its working speed reaches 4-6 times the output of traditional separate mixing equipment, shortening overall project construction cycles.
- Strong Adaptability To Restricted Job Sites: The compact machine body suits narrow construction zones and scattered small-scale projects. Operators move the unit freely instead of building fixed mixing foundations on site.
- Two Power Options For Different Site Conditions: Clients select electric models for sites with stable grid power, or choose diesel-driven versions for remote mountain areas and rural zones without reliable electricity access.
- Stable High-Pressure Pumping Performance: Both mainstream models maintain 20Mpa maximum pumping pressure to keep a steady concrete flow through standard 125mm delivery pipes, with graded motor power from 45kw to 55kw matching different hourly output demands.
Portable Concrete Mixer With Pump Practical Model Selection Guide
This trailer concrete mixer with pump has two mainstream models, YG-350 and YG-550; buyers lock the right unit by evaluating 5 core practical factors closely related to on-site production demands:
1. Target hourly concrete output volume
- Small residential renovation, rural housing and narrow road repair projects: Choose YG-350 with 20-30m³/h stable output, sufficient for low-to-medium continuous pouring tasks.
- Large tunnel, dam and multi-story building construction: Pick YG-550 with a constant 40m³/h delivery capacity to shorten large-area pouring periods.
2. Maximum aggregate grain size of local raw materials
- Projects using fine sand, small gravel under 20mm: YG-350 supports 0.5-40mm aggregate and fully meets your raw material standard.
- Projects mainly using coarse 20-40mm stone: YG-550 is optimized for large aggregate to avoid internal blockage during mixing and pumping.
3. On-site power supply environment
- Urban construction sites with complete industrial power grids: Electric configuration cuts extra fuel consumption and running noise.
- Mountain, rural and remote job sites without stable electricity: Optional 150kw genset diesel version supports independent off-grid operation.
4. Available on-site placement space & transfer frequency
- Frequently moved small scattered projects: YG-350 weighs only 5500kg with a compact overall size 610020002700mm, easy to tow between work zones.
- Fixed large construction yards with long-term continuous pouring: Heavier YG-550 (6500kg) delivers more stable hydraulic pumping performance for all-day operation.
5. Vertical pumping height & horizontal conveying distance
Both models keep 20Mpa maximum pumping pressure, while YG-550’s upgraded 55kw motor provides stronger power reserve for super high floor and long-distance horizontal pipeline delivery.
After confirming the above parameters, clients can also match our standalone concrete pump if they already own independent mixing equipment on site.
Portable Concrete Mixer With Pump Optional Custom Upgrade Configurations
Our portable concrete mixer with pump supports multiple factory-direct custom upgrades to match unique construction environments. All modifications focus on lifting the machine’s onsite adaptability without changing core mixing & pumping performance:
- Independent diesel generator upgrade: Base electric models can be equipped with a matched 150kw genset, realizing fully self-contained operation without an external power supply for remote off-grid construction zones.
- Extended heavy-duty pumping pipe matching kit: We supply matched 125mm thickened delivery pipes of different lengths for long-distance horizontal and high-rise vertical concrete conveying, reducing pipeline pressure loss during pumping.
- Reinforced wear-resistant mixing liner upgrade: For projects processing hard coarse aggregate every day, thick anti-abrasion mixing drum liners extend the core mixing component service life and lower frequent replacement costs.
- Wireless remote control operation module: Add a wireless remote controller to adjust feeding, mixing and pumping speed away from the machine body, improving operator safety on high-risk pouring positions such as roof slopes and deep foundation pits.
- All upgrade parts are pre-tested to match each model’s hydraulic and power system; the concrete mixer with pump machine retains its original 4-6 times efficiency advantage after all customized adjustments.
If you need mobile integrated concrete processing equipment for scattered construction sites, our portable concrete mixer with pump covers graded output options and flexible power configurations for diverse project demands. Every concrete mixer with pump machine from YG undergoes full pressure and continuous operation testing before shipment to match published parameter standards strictly. Our technical team offers one-on-one model matching advice based on your hourly output, aggregate size and site power conditions to avoid improper equipment selection. Share your project construction parameters with our sales team right now to receive full spec sheets and a customized no-obligation quotation.
