According to global construction safety reports, manual pile chipping accounts for 15% of all foundation construction injuries, and 22% of foundation projects experience costly rework due to improper pile head removal. Traditional methods like pneumatic hammers produce 110+ dB of noise, cause hidden cracks in adjacent piles, and can damage reinforcing steel beyond repair. These issues lead to project delays, increased liability, and higher long-term maintenance costs.

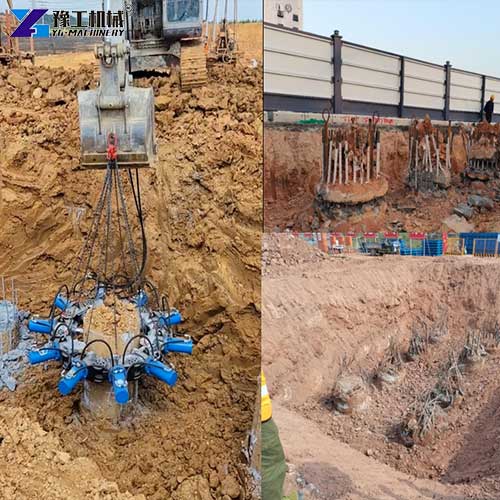

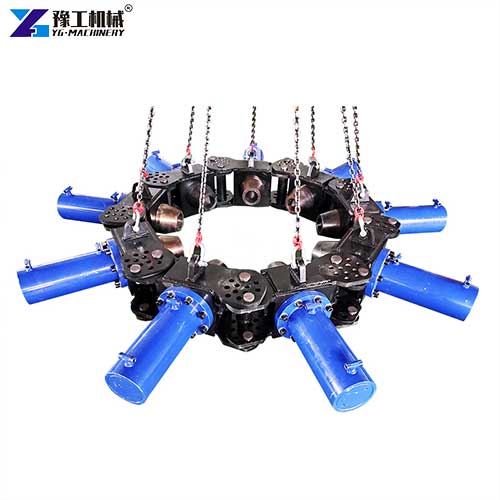

A pile head breaking machine solves all these fundamental problems by using controlled static hydraulic pressure to break concrete pile heads cleanly and predictably. It eliminates the risks of impact-based tools while delivering consistent results that meet the strictest international construction standards.YG’s pile head-breaking machine series features a fully modular design that adapts to round concrete piles from 400 mm to 2500 mm in diameter.
Pile Head Breaking Machine Technical Parameters
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Single-module size | A combination of the total weight | ||||||||
5 Application of Pile Head Breaking Machine
- High-speed railway and bridge construction: Delivers the ±5mm elevation accuracy required for bridge pile foundations, ensuring uniform load distribution across all supporting piles
- Urban residential and commercial construction: Operates at less than 75dB, allowing work to continue during daytime hours without disturbing nearby residents or businesses
- Industrial plant and warehouse foundations: Handles both cast-in-place and precast concrete piles efficiently, reducing foundation construction time by 60% compared to manual methods

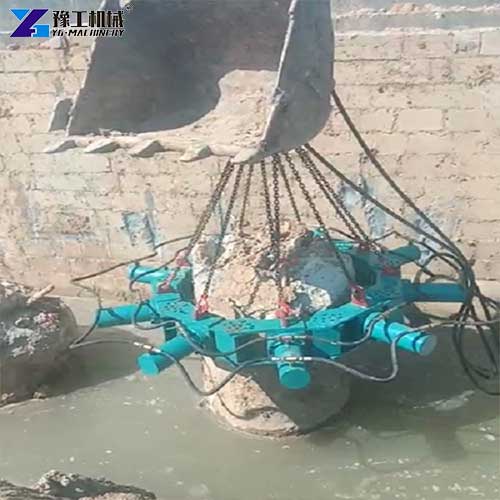

- Port and harbor construction: Adapts to uneven terrain and tidal conditions, making it ideal for marine pile removal projects
- Renovation and demolition projects: Remove existing pile heads without damaging surrounding structures or underground utilities
Working Principle & Technical Advantages of Static Hydraulic Breaking

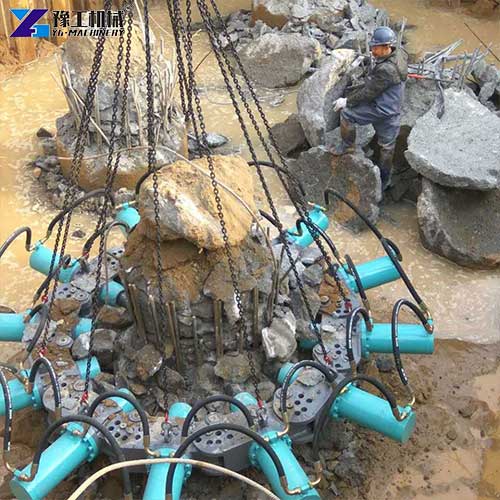

Different from impact-type breaking tools, a hydraulic pile cutter relies on steady hydraulic thrust to complete concrete separation, and this core working principle brings fundamental differences in actual use. Multiple hydraulic units surround the pile evenly and apply synchronous pressure on the concrete surface. Concrete cracks along the preset horizontal line under uniform force, while steel bars stay intact to keep the pile’s structural strength. This static working mode creates three core technical merits. First, it generates almost no vibration, so it will not cause hidden cracks on adjacent foundation piles or surrounding building structures. Second, it produces far lower noise than pneumatic hammers, which complies with construction noise control rules in urban areas. Third, the fracture surface is flat and neat, requiring no secondary trimming work. A hydraulic pile cutter helps contractors save extra labor and shorten the overall construction cycle effectively.

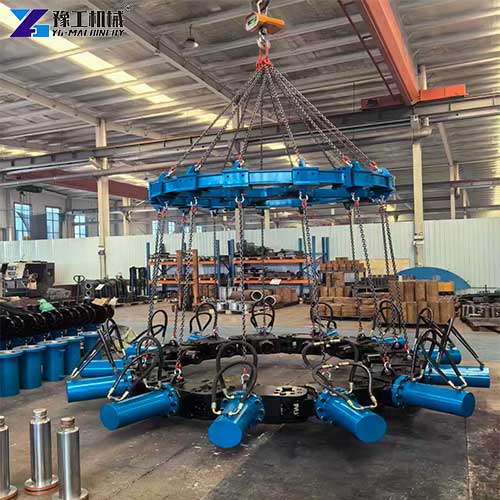

Pile Head Breaking Machine Structure & Components
Our pile head breaking machine consists of two main parts: the working device and the power connection system. Each component is engineered for durability and reliable performance in tough construction conditions.
The working device includes:

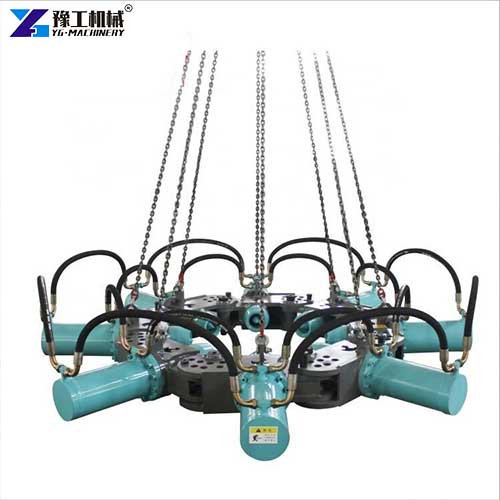

- Interchangeable modules: Each module contains a hydraulic cylinder, a steel base and a chisel tip. Modules are connected by 35mm diameter steel pins for quick assembly
- Hydraulic cylinders: Each cylinder delivers up to 300KN of thrust at 300MPa pressure, with a maximum stroke of 300mm
- Chisel tips: 110mm diameter alloy steel chisels that contact the concrete surface. They are replaceable and designed for long service life

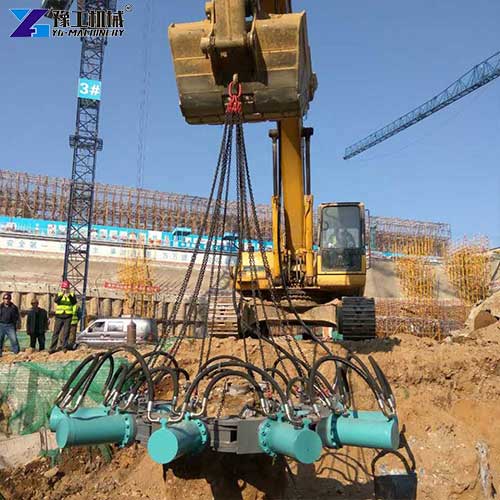

- Lifting chains: Heavy-duty chains that allow the pile breaker machine to be lifted and positioned by excavators or cranes
The power connection system includes:
- High-pressure hydraulic hoses: Reinforced hoses that transmit hydraulic fluid from the power source to the cylinders
- Quick-connect couplings: Allow fast, secure connection to different power sources
- Control valves: Regulate hydraulic flow and pressure to ensure synchronized operation of all cylinders

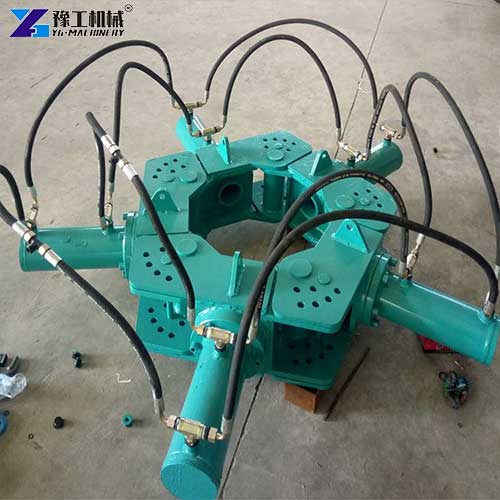

YG Hydraulic Pile Breaker Price
A pile head breaking machine is an essential tool for any foundation construction project. YG’s modular pile breaker machines are built with high-strength steel components to deliver reliable performance in even the toughest job site conditions. If you are looking for a durable, versatile system that adapts to all your pile-breaking needs, contact us today. Our technical team will help you select the optimal module configuration for your project, with a transparent hydraulic pile breaker price that includes all standard features. We also provide detailed operation and maintenance manuals to ensure your team can use the equipment safely and effectively. Request your customized hydraulic pile breaker price today and discover how our equipment can streamline your foundation construction operations.
