If you run a foundation construction team with an excavator, you know the drill: you win a project bid, handle the piling work smoothly, then lose a huge chunk of your profit to subcontractors when it comes to pile breaking. For most teams, pile breaking feels like a necessary evil — it’s messy, labor-intensive, and eats into margins you worked hard to earn. But what if you could take back that lost profit and even double your net return on every foundation project without buying any new heavy equipment?
A concrete pile breaker makes this possible. This simple excavator attachment turns your existing machine into a high-efficiency pile breaking tool, eliminating the need for subcontractors and manual labor. For small and medium foundation teams, it’s one of the highest-return investments you can make for your business.
Concrete Pile Breaker Technical Parameters
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Single-module weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Single-module size | A combination of the total weight | ||||||||
Why Is Pile Breaking Eating Into Your Foundation Profits?
Before we talk about solutions, let’s break down why pile breaking is such a profit drain for most construction teams. Traditional manual pile breaking has three core flaws that eat away at your margins, and most teams don’t even realize how much money they’re losing every project.
Sky-high labor costs
Manual pile breaking requires 3-4 skilled workers per pile, and labor costs make up 60-70% of the total pile-breaking budget. As labor costs continue to rise, this chunk only gets bigger every year. For a 100-pile project, labor costs alone can eat up 30% of your total project profit.
Slow construction schedules
A team of 3-4 workers can break 8-10 piles per day on average. For a 100-pile project, that’s 10-12 days of work just for pile breaking. Long construction periods don’t just increase management costs — they also stop you from taking on more projects in the same time frame.
High rework rates
Manual pile breaking relies entirely on worker skill. It’s extremely common to see damaged pile bodies, uneven pile tops, or incomplete concrete removal. Fixing these issues adds 10-15% to your total project cost and, in severe cases, can even lead to project payment deductions.
4 Ways A Concrete Pile Breaker Doubles Your Net Profit
A hydraulic pile breaker doesn’t just make pile breaking faster — it directly boosts your bottom line in four measurable ways. For most foundation teams, adding this one pile breaker machine can double the net profit per project within the first year.
1. Keep 100% of the pile-breaking profit margin
This is the biggest and most immediate profit boost. Instead of subcontracting the pile-breaking work and giving away 30-40% of the project budget, you can complete all the work with your own excavator and operator.
For a standard 100-pile residential foundation project with a $40,000 total budget, the pile-breaking portion usually accounts for $12,000. If you subcontract it, you might only keep $2,000 in margin. If you do it yourself with a pile breaker, you keep nearly $9,000 in profit from this part alone — that’s a 350% increase in profit from the same project.
2. Finish projects faster to take on more work
A hydraulic pile breaker can break a single 1-meter diameter pile in 5-10 minutes, which is 10-15 times faster than manual work. For that same 100-pile project, you can finish all pile-breaking work in 2-3 days instead of 10-12 days.
Shorter project timelines mean you can take on 2-3 times more projects every year. Instead of being tied up on one site for a month, you can move your team and pile crusher for excavator to the next project faster, multiplying your annual revenue without hiring more workers.
3. Eliminate rework costs completely

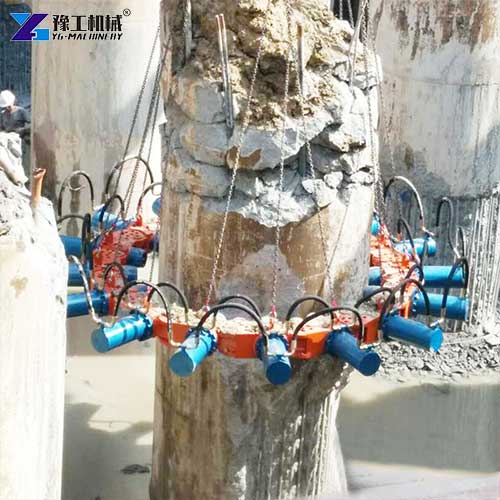

The pile breaker uses a modular extrusion design that applies even pressure around the entire pile body. It cleanly breaks off the excess concrete at the top without damaging the main pile structure or rebar. The resulting pile top is flat and uniform, meeting engineering acceptance standards on the first try.
No rework means no extra labor costs, no material waste, and no risk of payment deductions due to quality issues. For projects with strict quality requirements, this alone can save you 10-15% of your total project cost.
4. Low upfront investment, fast payback
You don’t need to buy any new heavy equipment. The pile breaker machine installs directly on your existing excavator, using the excavator’s own hydraulic system. The upfront cost is a fraction of buying new construction machinery, and most teams can earn back the full investment within 2-3 medium-sized projects.
Unlike other equipment that sits idle for months at a time, a pile breaker is useful on almost every foundation project, so you’ll get consistent value from it year-round.
Expand Your Project Scope With Concrete Pile Breaker
Beyond boosting profit on existing projects, a pile crusher for excavator also lets you take on new types of projects you couldn’t handle before. This expands your business scope and opens up new revenue streams you didn’t have access to before.
Here are some of the most common project types you can take on once you have this attachment:
- Residential and commercial foundation projects: The most common use case for both small self-built houses and large commercial building foundations.
- Bridge and highway pile projects: Pile breaking for bridge piers, highway subgrades, and viaduct foundations, which usually have stricter quality requirements.
- Photovoltaic power station projects: A fast-growing market in recent years, with large numbers of small-diameter piles that are perfect for pile breaker work.
- Municipal engineering projects: Pile foundation work for underground pipelines, sewage treatment plants, and other public facilities.
- Railway and high-speed rail projects: High-quality pile breaking for projects with strict acceptance standards, which usually have higher profit margins.
Concrete Pile Breaker For Sale
For foundation construction teams that already own an excavator, adding a pile breaker is one of the simplest ways to boost profits and grow your business. It doesn’t require buying new heavy equipment, hiring more workers, or learning complex new skills — you just attach it to your existing machine and start keeping more of the profit you’re already earning.
If you’re ready to double your foundation project profit with a concrete pile breaker, we’re here to help. We offer a range of models to fit different excavator tonnages and project needs, and can help you pick the best option for your business. Just tell us your excavator tonnage and the average pile diameter you work with, and we’ll send you a free product specification sheet and a personalized profit calculation for your typical projects.
