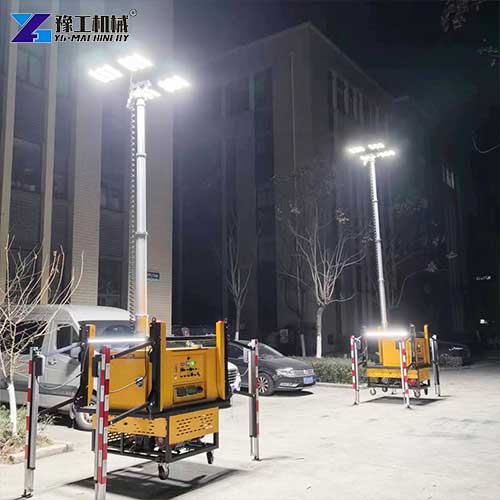

A mobile solar light tower is a self-contained, transportable off-grid lighting system designed to deliver high-brightness, wide-area illumination for outdoor work sites and emergency response scenarios. It integrates solar power generation, energy storage, a lifting mast and high-efficiency LED lamps into one movable unit, requiring no external power connection to operate. This type of equipment serves a wide range of industrial and public service scenarios. It supports on-site maintenance, emergency repair and abnormal condition handling in flammable and explosive workplaces such as railway facilities, power plants, shipyards, steel mills and petrochemical sites. It also provides environmental lighting for accident investigation sites, traffic accident rescue scenes, highway inspection checkpoints and various emergency disaster relief operations.
As professional portable lighting equipment, it solves the common pain point of power supply shortage in remote or temporary work sites. Unlike traditional fuel-powered lighting towers, the portable construction lights run without exhaust emissions and loud noise, making it suitable for use near residential areas and in sensitive industrial zones.
Mobile Solar Light Tower Technical Parameters:
| Main Parts | Charact | Specification for Your Options | |
| Solar Panel | Material | monocrystalline silicon | |
| Power | 280w/380w/445w | ||
| Number | from 1 to 16 as per your request | ||
| Storage Battery | Category | gel battery, AGM battery | lithium battery |
| Capacity | 150ah / 200ah | 12v200a / 24v300a | |
| Number | 1,2,3,4,5,6…as your request | ||
| System Voltage | 12v/24v/48v | ||
| Back-Up Generator | Yes or No | optional | |
| Yes Option | diesel:3kw,5kw; | gasoline 3kw | |
| Mast | Extended ways | foldable or vertical | |
| Winch | manual/electric/hydraulic | ||
| Extended Height | 2-12m | ||
| LED lighting | LED Wattage | 60w/100w/200w | |
| Number of lamps | 1/2/4/6 | ||
| Tilt function | Yes or No | ||
| 359º rotation function | Yes or No | ||
| Standard | Trailer Standard | AU/US/EU/Others | |
| Electric Standard | As your request | ||
| Brake System | Yes or No | ||
| Yes Option | Mechanical brake/electric brake | ||
| Appearance refers to our common design, or could be customized according to your drawing | |||
Advantages of YG Mobile Solar Light Tower
1. Zero-Emission Silent Operation For Sensitive Workplaces
Powered entirely by solar energy under normal conditions, the system produces no exhaust fumes, open flames or loud noise during operation. This feature makes it safe for use in petrochemical plants, gas stations and other flammable and explosive areas where fuel-powered equipment is restricted. For night construction near residential areas, its silent operation avoids noise complaints and allows work to proceed without disturbing surrounding residents. It also eliminates the need for continuous fuel supply, which greatly reduces logistics pressure on remote construction sites.
2. Flexible Height Adjustment And Omnidirectional Lighting Coverage
The lifting mast supports adjustable heights from 2 meters to 12 meters, with multiple lifting drive options to match different usage needs. All LED lamp heads support 359-degree horizontal rotation and vertical tilt adjustment, so operators can precisely control the irradiation direction and coverage range according to site layout. The high-mast configuration delivers uniform large-area lighting, eliminating dark corners on the work surface and improving overall operation safety.
3. Reliable Off-Grid Power Supply With Backup Option
The built-in energy storage battery stores electricity generated by solar panels during the day and powers the lamps at night. A standard configuration can support continuous operation for multiple nights on a full charge. For areas with frequent rainy weather or long-term non-stop work requirements, users can add an optional backup generator to supplement power, ensuring uninterrupted lighting even under extreme weather conditions.
4. Robust Build And Low Maintenance Cost
All core components adopt industrial-grade design to adapt to harsh outdoor environments including wind, rain and dust. Monocrystalline silicon solar panels have a long service life and high photoelectric conversion efficiency, and LED light sources have low light attenuation and long working life. The modular structure simplifies daily maintenance, and there are few wearing parts, so users do not need to reserve a large amount of spare parts for long-term operation.
Full System Configuration And Customizable Options
1. Solar Panel Array

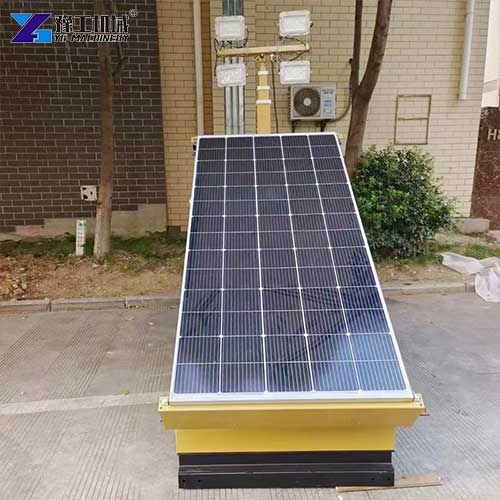

The portable construction lights system uses high-efficiency monocrystalline silicon solar panels with excellent weather resistance and stable power generation performance. Panel power is available in 280W, 380W and 445W options, and the quantity can be customized from 1 to 16 pieces according to actual power consumption and endurance requirements. Users can choose the appropriate panel configuration based on local average sunshine duration and daily lighting time.
2. Energy Storage Battery System
Multiple battery types are available for selection, including gel battery, AGM battery and lithium battery, to adapt to different temperature environments and budget levels. Capacity specifications cover 150Ah, 200Ah, 12V200Ah and 24V300Ah, and the system voltage supports 12V, 24V and 48V. The battery capacity can be flexibly matched according to the required number of consecutive rainy days and total lamp power.
3. Lifting Mast Assembly
There are two mast extension styles: foldable and vertical. The lifting drive mode includes manual, electric and hydraulic options. Manual lifting has the lowest cost and simplest structure, suitable for small temporary projects with low frequency of use. Electric lifting saves labor and is suitable for medium-frequency municipal and maintenance work. Hydraulic lifting has strong load-bearing capacity and supports higher mast height, and is usually used on trailer-mounted models for large construction sites. The extended height of the mast ranges from 2 meters to 12 meters to meet different lighting coverage needs.
4. LED Lighting Unit
All light sources adopt high-efficiency LED lamps with fast startup and low energy consumption. Single lamp power is available in 60W, 100W and 200W, and the number of lamp heads can be customized as 1, 2, 4 or 6 pieces. Each lamp head supports independent angle tilt and 359-degree horizontal rotation, which can flexibly adjust the lighting layout according to the shape of the work site.
5. Optional Backup Generator
For areas with insufficient sunshine or projects requiring 24-hour uninterrupted operation, users can choose to add a backup generator. Diesel generator options include 3kW and 5kW, and a 3kW gasoline generator is also available. The generator serves as an emergency power supplement to ensure continuous lighting when solar power cannot meet demand.
6 FAQs About Mobile Solar Light Tower
A: The exact runtime depends on battery capacity and total lamp power. Under standard configuration, a full day of solar charging can support 2 to 3 consecutive nights of normal lighting. With an optional backup generator, it can support unlimited continuous operation.
A: No. The mobile solar light tower arrives fully assembled. On-site personnel only need to unfold the solar panels and extend the mast according to the operation manual. Most teams can complete deployment and start lighting within 30 minutes.
A: Yes. We support full customization including solar panel quantity, battery type and capacity, mast height, number of lamps, trailer standard and brake system. You can provide your specific requirements, and our team will design a tailored solution.
A: The mast can be configured from 2 to 12 meters. Higher masts provide wider light coverage and better illumination uniformity.
A: Yes. The mast rotates 359 degrees, and the lamp heads tilt to direct light exactly where it is needed.
A: Battery options include gel, AGM, and lithium. Lithium batteries provide the longest cycle life and lightest weight. Gel and AGM batteries are more affordable and require less maintenance.
Mobile Lighting Tower For Sale
From industrial plant maintenance to emergency rescue, from highway construction to municipal night work, the solar-powered mobile lighting tower delivers stable, environmentally friendly and flexible lighting support with its off-grid power supply, adjustable height and flexible configuration. Whether you need a compact unit for temporary maintenance tasks or a heavy-duty trailer model for large-scale long-term construction, our mobile solar light tower provides reliable off-grid lighting performance for various scenarios.
If you are looking for high-quality portable lighting equipment for your team, or want to get the latest details on a mobile lighting tower for sale, send your project requirements to our team. We will provide professional configuration suggestions and official quotations based on your specific needs.
