An automatic clay brick-making machine is the core equipment for modern concrete block production. For brick manufacturers, choosing between semi-automatic and fully automatic production lines directly impacts production efficiency, operating costs and long-term profitability. This guide compares the two solutions based on verified technical parameters, helping you make an informed investment decision.
Product Model & Core Parameter Overview

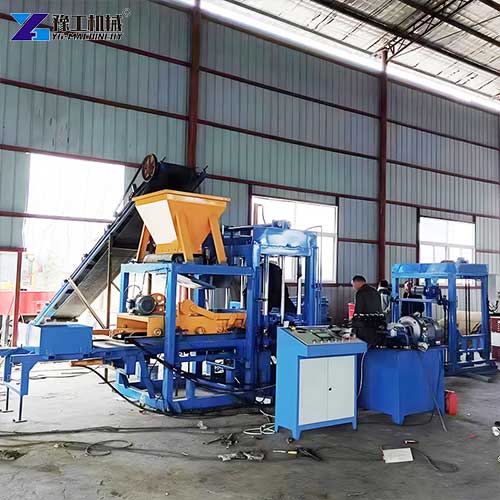

Automatic Clay Brick Making Machine: We offer multiple models of fully automatic production lines at YG, and this article takes the YG-QT4-15 as an example. It is a complete end-to-end system including the main machine, mixer, conveyor belt, stacker and computer control cabinet.
| Model | YG-QT4-15 |
| Power | 27.2KW |
| Molding cycle(second) | 15S |
| Capacity | 4-7 bricks each mold/time |
| Daily output | 8000-10000pcs |
| Forming method | Hydrauliquement |
| Pression nominale | 16Mpa |
| Transmission mode | Vibration transmission |
| Dimension(mm) | 5900*2200*2400 |
| weight | 2100KG |

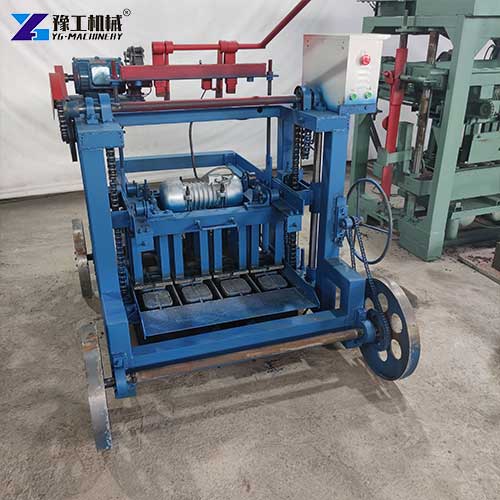

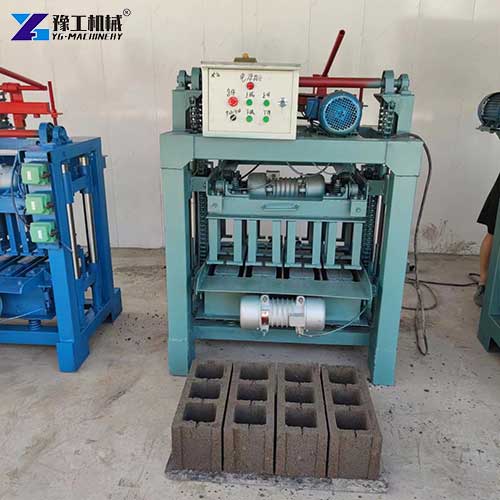

Semi-Automatic Brick Making Machine: YG4-35A, YG4-35B and YG4-40A models, available with or without an integrated hopper for flexible production.
| Model Features | YG4-35A | YG4-35A (Hopper) | YG4-35B | YG4-35B (Hopper) | YG4-40A | YG4-40A (Hopper) |
| Molding Cycle | 35s | 35s | 35s | 35s | 35s | 35s |
| Power (kw) | 4.8 | 4.8 | 6.3 | 6.3 | 7.5 | 7.5 |
| Standard Bricks/Shift | 15,000 | 20,000 | 15,000 | 20,000 | 20,000 | 24,000 |
| Hollow Blocks/Shift | 2,400 | 3,200 | 2,400 | 3,200 | 3,200 | 3,600 |
| Machine Weight | 750kg | 780kg | 800kg | 830kg | 1100kg | 1150kg |
| Operators Needed | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
1. Production Efficiency & Capacity
Production efficiency determines your ability to meet customer orders and maximize revenue.
- Automatic Clay Brick Making Machine: The YG-QT4-15 automatic clay brick making machine achieves a fast 15-second molding cycle with continuous, uninterrupted production. The integrated automatic feeding and stacking system eliminates downtime between batches, ensuring stable output throughout the shift.
- Semi-Automatic Brick Making Machine: All YG4 series models have a 35-second molding cycle. The hopper-equipped versions increase daily output by 25-30% compared to basic models, as they enable continuous raw material feeding without manual pauses. The top YG4-40A (Hopper) model produces up to 24000 standard bricks per 8-hour shift.
- Key difference: Semi-automatic lines offer higher per-shift output for these specific models, while fully automatic lines maintain more consistent speed during long production runs.
2. Labor Configuration & Work Intensity
Both line types require the same number of operators, but their daily work content differs significantly.
- Automatic Clay Brick Making Machine: Operators primarily monitor the computer control panel, replenish raw materials and perform occasional quality checks. All core processes, including material mixing, molding and stacking, are fully automated, resulting in low physical labor intensity.
- Semi-Automatic Brick Making Machine: While only 2-3 workers are needed, they perform more manual tasks, including assisting with mold demolding, transporting wet bricks and stacking finished products. The physical work intensity is higher, and operator fatigue can slightly reduce production efficiency during late shift hours.
- This makes the block brick-making machine ideal for regions with high labor costs or difficulty finding physical labor.
3. Initial Investment & Operating Cost
The two solutions have different cost structures that suit different business budgets.
- Automatic Clay Brick Making Machine: Higher initial investment due to its complete automation system, including a hydraulic station, computer control and a stacker. However, it has lower long-term operating costs with minimal material waste and lower energy consumption per brick produced.
- Semi-Automatic Brick Making Machine: 50-60% lower initial investment with a simpler mechanical structure. Maintenance costs are also lower, as there are fewer complex components that can fail. The integrated hopper option adds a small premium but delivers significant productivity gains.
4. Product Quality & Consistency
Consistent product quality is critical for building customer trust and reducing waste.
- Automatic Clay Brick Making Machine: Computer-controlled material distribution and hydraulic pressing ensure uniform filling and consistent 16MPa pressure for every brick. This results in bricks with precise dimensions and uniform strength, with a defect rate of less than 2%.
- Semi-Automatic Brick Making Machine: Manual operation introduces minor variability in material distribution and pressing force. The defect rate is typically 3-5%, which is still acceptable for most construction applications. Regular operator training can further improve quality consistency.

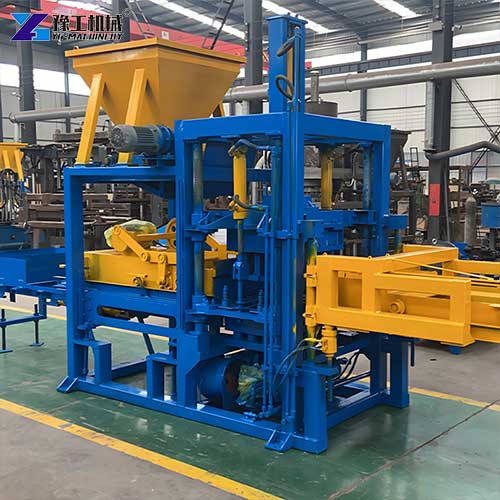

- A cement brick manufacturing machine with full automation is preferred for projects that require strict quality standards.
5. Ideal Application Scenarios
Choose an automatic clay brick making machine if:
- You require a consistent 24-hour production capacity
- You supply large government contracts or wholesale distributors
- Labor costs in your region are high and rising
- You prioritize long-term operational efficiency and low defect rates
Choose a semi-automatic brick-making machine if:
- You have a limited initial investment budget
- Your production needs are flexible with variable order sizes
- You operate in regions with lower labor costs
- You need a compact machine that fits in smaller workshop spaces
Quick Selection Guide
| Factor | Fully Automatic Line | Semi-Automatic Line |
| Molding Cycle | 15s | 35s |
| Max Daily Output | 10000pcs | 24000pcs |
| Labor Intensity | Low | High |
| Initial Investment | High | Low |
| Defect Rate | <2% | 3-5% |
| Best For | Large-scale, continuous production | Medium-scale, flexible production |
Both semi-automatic and fully automatic lines have their unique advantages. The YG-QT4-15 automatic clay brick making machine delivers unmatched consistency for high-volume production, while our YG4 series semi-automatic lines offer excellent value for budget-conscious manufacturers. If you need help selecting the right block brick-making machine for your specific production requirements, contact us today. We will provide detailed technical specifications and a customized quotation tailored to your business needs.
