The fast food industry runs on packaging. Every burger, every fry, every takeout order needs a container. And with the global shift away from plastic and polystyrene, paper-based packaging has become the standard—not just for environmental reasons, but for brand image and consumer preference. A hamburger box-making machine is the equipment that produces these containers. It takes flat sheets of paper or cardboard, folds them, glues them, and forms them into finished boxes—all in a single automated process. Without this machine, fast food chains, takeout restaurants, and packaging suppliers would be limited to slow, manual, or outsourced production.
The YG-800 model supports box sizes from 50*50mm to 320*320mm, with adjustable folding angles between 10 and 40 degrees to match different box designs. Unlike a standard automatic corrugated box-making machine built for heavy shipping cartons, this unit focuses on precision forming of thin food-grade paperboard for disposable food containers, with tighter tolerance control for clean, crisp fold lines.
Hamburger Box Making Machine Parameters:
| Machine model | YG-800 |
| Paper Length | 100- 450 mm |
| Paper Width | 100- 550 mm |
| Box Angles | 10°- 40° |
| Box standard size | 50*50–320*320mm |
| Edge banding height(H) | 15- 200 mm |
| Occupancy of machine | 1.2m*4m |
| Production speed | 60-160pcs/min |
| Bonding/Gluing device | Water-based adhesive |
| Paper thickness | Max 1.5mm |
| Electrical requirement | 4kw/h |
| Air requirement | 6kg/cm²*200L/min |
| Equipment size | 3.48m*1.32m*1.5m |
| Machine weight | 2T |
8 Features of Hamburger Box Making Machine
A well-designed hamburger box-making machine integrates multiple precision systems to deliver stable, high-volume output with minimal manual intervention.
- Adjustable production speed: The unit runs at 60 to 160 pieces per minute, tunable based on box size and material thickness, making it suitable for both small-batch custom orders and large-scale mass production.

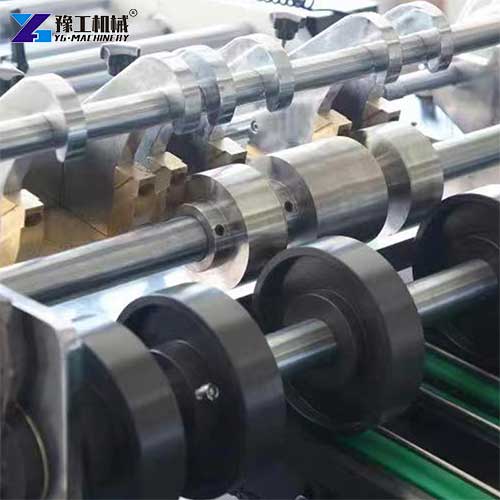

- High-precision synchronous belt drive: The entire forming line uses premium synchronous belts for power transmission, which keeps positioning error nearly zero and ensures every box folds and bonds at the exact same position.
- Long-life sealed bearings: All rotating shafts use high-quality sealed bearings that block dust and liquid from entering internal components, extending service life and reducing the frequency of maintenance downtime.
- Pine wood forming molds: Manufacturers make the main molds from pine wood, which is lightweight and smooth, and crews swap them out quickly, cutting downtime during product changeovers significantly.
- Automatic collection and counting: The machine automatically collects formed boxes at the output end and counts finished pieces, with optional extra counters available for more detailed production tracking.
Applications in the Fast Food Industry

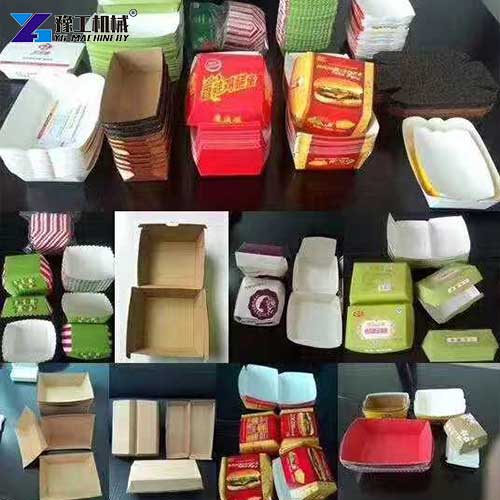

- Hamburger boxes. The primary application. The machine produces the classic clamshell-style hamburger boxes used by fast food chains worldwide.
- Lunch boxes. For combo meals and larger items. The machine produces lunch boxes in various sizes and configurations.
- Chips and fries boxes. The tapered, cone-style boxes used for fries and chips
- Chicken boxes. For fried chicken, nuggets, and other poultry items
- Takeout boxes. General-purpose takeout containers for a wide range of food items
- Specialty boxes. For specific products like hot dogs, sandwiches, and pastries.
What a Hamburger Cardboard Box Machine Does
A hamburger box-making machine is an automated piece of equipment that converts flat sheets of paper or cardboard into three-dimensional boxes. The process is fully automated from start to finish: paper feeding, folding, gluing, forming, and stacking.
The machine takes pre-printed and die-cut paper blanks from the feeding section, applies water-based adhesive to the specified areas, folds the paper along pre-scored lines, and forms the box in a molding station. The finished boxes are then automatically counted, stacked, and delivered to the collection area.
The result is a consistent, high-quality box that is ready for use in fast food packaging. The entire process requires minimal operator intervention—one person can monitor the machine while it runs.
The YG series automatic corrugated box-making machine is designed for speed and precision. The machine structure is firm and stable, with low-noise operation. The PLC control system ensures consistent results and automatically stops when paper runs out or a jam occurs, protecting both the machine and the operator.
8 FAQs About Hamburger Box Making Machine
A: The machine produces hamburger boxes, lunch boxes, chips boxes, fried chicken boxes, takeout boxes, and other fast food packaging. Changing the mold allows production of different box sizes and shapes.
A: The machine handles 200-600 gsm paperboard, PE-coated paper, kraft paper, and corrugated paper up to 1.5mm thickness.
A: The machine operates at 60-160 boxes per minute. The speed can be adjusted based on the box design and material being used.
A: Yes. The machine uses interchangeable molds for different box sizes and shapes. Settings are adjusted through the touchscreen interface.
A: Yes. The machine uses a water-based adhesive, which is food-grade and safe for contact with food products.
A: The machine includes PLC control with automatic shutdown when paper runs out or a jam occurs. This protects both the machine and the operator.
A: The cardboard box machine includes automatic counting and stacking, with finished boxes collected in neat stacks for easy packaging and shipping.
A: Changeover is quick with interchangeable molds. The exact time depends on the complexity of the mold change.
Burger Box Making Machine Price
For food packaging manufacturers aiming to upgrade their production capacity, product consistency and compliance standards, a reliable hamburger box-making machine delivers clear long-term operational value. YG manufactures every unit with precision-machined components, food-grade gluing systems and smart PLC controls, with strict factory testing to ensure stable performance and long service life for continuous production use.
If you are looking for a high-efficiency, food-compliant solution for your paper food packaging production, YG has a proven model ready to match your needs. Contact our team today to share your box size requirements and production volume, and we will recommend the right burger box-making machine price for your operation.
