For small and medium construction, quarrying and demolition projects around the world, blasting restrictions and site limitations often become the biggest bottlenecks that slow down progress. Traditional breaking methods like jackhammers are too slow and labor-intensive, while large demolition equipment is too expensive for small-scale jobs. A hydraulic splitter for rock fills this gap perfectly: it delivers strong static splitting force without vibration, noise or flying debris, and works in almost any confined space.
If you are looking for a portable hydraulic stone splitter for sale, please feel free to contact the YG team for product information and a free quote.
Hydraulic Splitter for Rock Parameters
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
Case 1: Congo Small Quarry Rock Breaking Project
Client Background and Core Demand
Our client is from Congo and is engaged in small-scale quarry operations. Their core demand is to split large extracted rock blocks into small, transportable pieces. Before purchasing our hydraulic splitter for rock, they relied entirely on manual wedge breaking, which had extremely low efficiency and high labor intensity. In addition, the local power supply is unstable for a long time, so they need equipment that does not rely on a stable grid, has a simple structure and requires no professional maintenance.
YG’s Targeted Solution and Follow-Up Repurchase

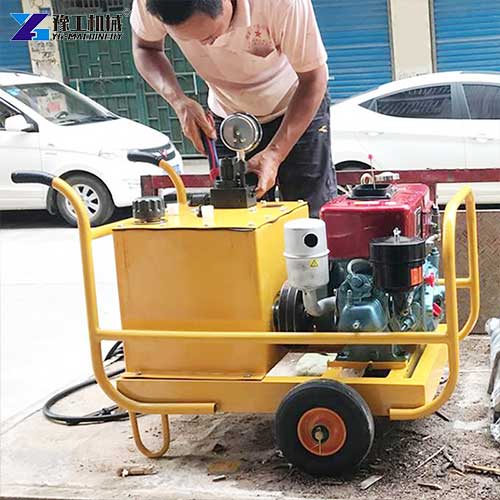

We recommended the diesel-powered YG-350 hydraulic stone splitter machine for this client. This model delivers 800 tons of maximum splitting force, is equipped with an independent diesel hydraulic power station, and does not require any external power supply, which perfectly adapts to the local power environment. It only needs a 46mm diameter drill hole, completes one split in 10-15 seconds, and has a very simple structure with almost no easily damaged parts. Ordinary workers can operate it independently after simple training.
After the first equipment was put into use for 6 months, the client took the initiative to contact us to repurchase 2 units of the same model. They said that the first equipment had been running almost every day for half a year without any major failures, and the efficiency far exceeded their initial expectations.
Client On-Site Feedback
The client’s person in charge gave very specific feedback: “Before using this hydraulic splitter for rock, 6 workers could only process 8 blocks a day, and labor costs accounted for most of our expenditure. Now, 2 workers operating this piece of equipment can process 25 blocks a day, and the efficiency has increased by more than 3 times. We have used it for half a year, and only did routine oil changes; no other maintenance was needed. That’s why we bought two more to expand our production.”
Case 2: Vietnam Construction Site Multi-Scenario Operation Project
Client Background and Core Demand
Our client is from Vietnam and is engaged in small-scale construction contracting. They need to complete two types of operations at the same construction site: reinforced concrete demolition and hard rock excavation. Initially, the client planned to purchase two different sets of equipment to deal with the two materials respectively, but the budget was limited. They hoped to find a cost-effective solution that could handle both operations with one set of equipment.
YG’s Targeted Combined Solution
We recommended a combined solution of YG-350 hydraulic concrete splitter + matching splitting rods for this client. The splitter gun is used to split reinforced concrete and small rock blocks, while the splitting rods are suitable for large-volume hard rock excavation. One hydraulic power station can drive both accessories at the same time, so the client only needs to pay for one set of power system, which saves nearly 40% of the procurement cost compared with buying two separate equipment. The splitting process produces no flying debris, which is very suitable for urban construction sites.
Client On-Site Feedback
The project manager said: “We were ready to buy two different equipment, but this combined solution solved all our problems. We used the splitter gun to complete the concrete demolition in 3 days, which would have taken 10 days with jackhammers. Then we switched to the splitting rods to do the rock excavation work. One set of equipment handles two completely different jobs, and the cost is much lower than we expected. This is the most cost-effective equipment we have purchased in recent years.”
3 Tips for Choosing a Hydraulic Splitter for Rock for Your Projects
After reading the cases above, many small project owners may wonder how to choose the right model for their own projects. Based on our experience serving hundreds of small clients globally, we summarize 3 core judgment criteria that you can refer to, which can help you avoid unnecessary overspending and mismatch:
1. Match splitting force to material hardness
For soft rock, plain concrete and small-scale projects, the 500-ton YG-250 model hydraulic concrete splitter is fully sufficient and the most cost-effective. For hard granite, basalt and reinforced concrete, choose the 800-ton YG-350 or YG-450 model hydraulic splitter for rock. Do not blindly pursue excessive splitting force, as it will only increase unnecessary equipment cost and weight without bringing extra efficiency improvement.
2. Choose the power type according to site conditions

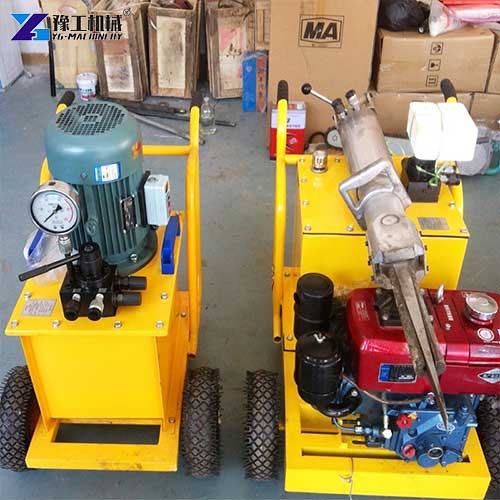

If your site has a stable grid power supply, the electric version is more economical and environmentally friendly, with lower daily operating costs. If your site is in a remote area with no power supply, or the power is very unstable, choose the diesel power version without hesitation.
3. Prioritize portability for complex terrain
If your project is in mountainous areas, indoor spaces, or other areas where large equipment cannot enter, give priority to lightweight models. The YG-250 hydraulic concrete splitter weighs only 240kg. As the most portable hydraulic stone splitter on the market, operators can move it easily without lifting equipment.
If you are looking for a portable hydraulic stone splitter for sale, you can contact us directly to get a targeted recommendation based on your specific project situation.
